ASTM D6925 Superpave Gyratory Compactor for Relative Density of Asphalt Testing

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Test Standard：ASTM D6925, Aashto T312
  • Test Method：Rotary Compaction Method
  • Diameter of Mould：Φ150mm
  • Movement Range for Compactor：(0~250)mm

Base Info

  • Model NO.：SGC-I
  • Moding Sample Height Range：(50~170)mm
  • Range of Gyratory Compaction Angle：(0~1000)Kpa±3%
  • Rotation Speed：(30±0.3)R,Min
  • Spinning Times：0-999
  • Displace Measurement：(0~220)mm
  • Pressure Mode：Pneumatic
  • Dimension：850mm×640mm×1800mm(L*W*H)
  • Mould Weight：7.5kg
  • Gross Weight：350kg
  • Function：Physico-Mechanical Properties Test
  • Application：Asphalt Mixture Testing
  • Transport Package：Plywood Case
  • Specification：Automatic
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Movement range for compactor(0~250)mm2Moding sample height range(50~170)mm3Rotary compaction movement accuracyless 0.10mm4Range of gyratory compaction angle(0~2)°, ±0.02° adjustable
(Calibrated at 1.16°±0.02° internal angle when leaving factory)5Rotary compaction pressure(0~1000)Kpa±3%
(Calibrated at 600Kpa±2% when leaving factory,bigger pressure can be customizable)6Rotation speed(30±0.3)r/min,customizable continuous adjustable speed7Spinning times 0~9998Displace measurement(0~220)mm9Test mould diameterstandard Φ150mm,optional Φ100mm10Pressure modepneumatic11Instrument dimension850mm×640mm×1800mm(L*W*H)12Package dimension1000mm×800mm×1950mm(L*W*H)13Mould weight7.5kg14Gross weight350KG




Factory overview

ASTM D6925 Superpave Gyratory Compactor for Relative Density of Asphalt Testing
Customer Feedback

Germany
ASTM D6925 Superpave Gyratory Compactor for Relative Density of Asphalt Testing
USA
ASTM D6925 Superpave Gyratory Compactor for Relative Density of Asphalt Testing

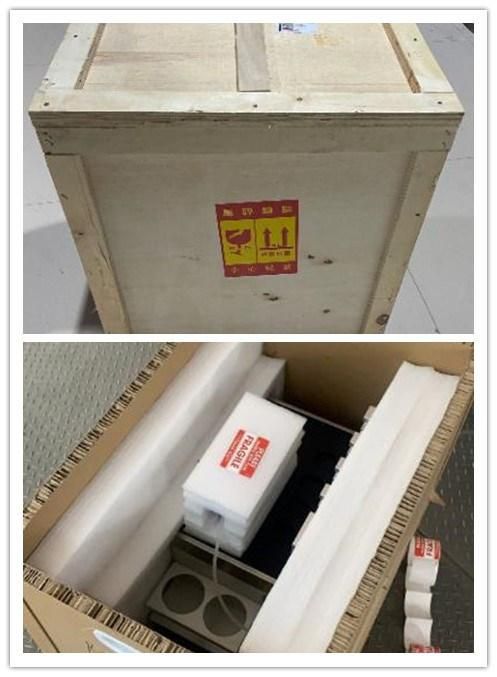

Package
ASTM D6925 Superpave Gyratory Compactor for Relative Density of Asphalt Testing
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
