• Model NO.：TWSL-500
• Sorting Efficiency：More Than 3000PCS
• Instrument：Precision Voltage Internal Resistance Tester
• Precision Voltage Internal Resistance Te：a One-Year Warranty, Life-Long Maintenance
• MOQ：1 Set
• Transport Package：Wooden Box
• Specification：1200L*800W*1200H mm
• Trademark：Twsl-500
• Origin：Shenzhen China
• HS Code：8486402290
• Production Capacity：100

Basic Info.

Model NO. TWSL-500 Sorting Efficiency More Than 3000PCS Instrument Precision Voltage Internal Resistance Tester Precision Voltage Internal Resistance Te a One-Year Warranty, Life-Long Maintenance MOQ 1 Set Transport Package Wooden Box Specification 1200L*800W*1200H mm Trademark Twsl-500 Origin Shenzhen China HS Code 8486402290 Production Capacity 100

Product Description

TWSL-500 five-speed sorting machines 18650 battery cells five-speed test  sorter,five-speed 18650  tester sorter,automating 18650 testing test sorter,five-speed 18650 26650 tester test  sorting machine,battery test machine



product name:

Features:

TWSL-500 five-speed cylindrical cell sorter is a cylindrical batteries for internal resistance, voltage and other parameters of the test sorting equipment, comes with high-precision internal resistance, voltage automatic test system, the device can be set according to battery internal resistance, voltage fed to the specified precision gear, the system can achieve up to 5 sorting. This device can be tested per hour with a group of batteries around 4000, and the structure is simple and elegant design, stable performance, is by far the most cost-effective on the market of a sorting equipment.

model: TWSL-500

Operating Voltage: AC220V ± 10% 50HZ, power: ≤200 W

Working gas source : 0.5~0.6Mpa

Adaptation Battery Specifications: 18650

Separation efficiency: ≥65PPM

Weight: About 120 kg

Dimensions: 1200 (L) × 800 (width) × 1200 (H) mm

instrument : Precision voltage resistance tester HK3561

Sorting parameters: Open circuit voltage, AC resistance

Open circuit voltage: Accuracy +/- 0.1% rdg, display resolution 0.1 mV

AC resistance: Accuracy +/- 0.5% rdg, display resolution 0.01 mOhm



Packing and shipping

Wooden Box Export Package:





Payment & Shipping:


Our Service

Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided

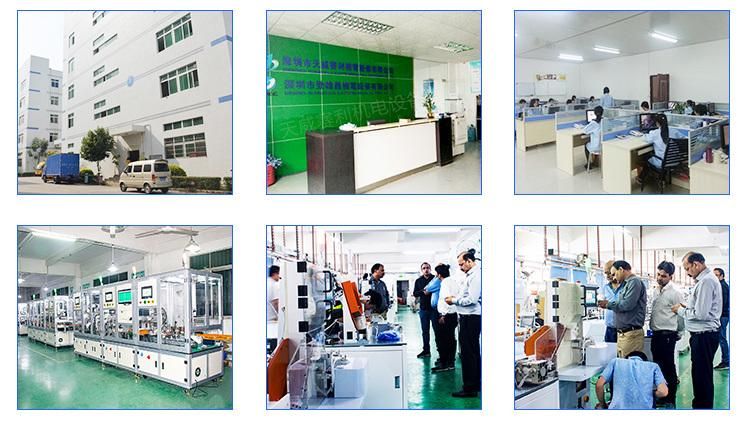

Company Information




Shenzhen TWSL New Energy Battery Equipment Co., Ltd is a 12-year expert in factory automatic production machines. Our main products are used in manufacturers of batteries for power bank, laptops and cell phones. Besides the batteries pack & spot welding, we also supply low pressure injection machines at all kinds of customers' requests. With our machines, global factories can speed up their production rates and greatly enhance their business expanding efficiency. We can give advices about how to open your own factories. So far we have 8 engineers and 2000 square meters workshop. We can help you to build your own factory and expand your business! Any interests, please feel free to contact us!



Welcome to view our machines video on Youtube:

https://twslbatterymachine.en.made-in-china.com

We've gained more than 75% market shares in China with leading technology and service, and are trusted by world giants like BYD, SCUD and Desay, etc.

For successful cases, we recommend India INTEX AND ICCON, who have co-operated with us very recently.




FAQ

Q: What can your machines do?

A: Make the batteries production automatically.

    Save the factory owner's invest and better the efficiency.



Q: What kind of items can your machines produce?

A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.



Q: How can I see samples or know more about the machines?

A: We have real time video on Youtube.

    Please contact our sales to get the links.

    Indian friends can visit our New Delhi sales office and see the machine by yourselves.



Q: Do you have a MOQ for orders?

A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.

     Our factory MOQ is 1 set.



Q: Do you have any warranty or certifications?

A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.

    All of our products are with CE certifications and are good to export worldwide.



Q: I am a new factory owner. Can I get some advices about automatic production?

A: You can tell us the ideal turn-over you want for your new factories.

    Our professional engineers and sales shall provide you with budget and costs how much it takes.


Looking forward to establish good business relationship with you in the near future,any question,please contact me:
Jenny| Sales Manager


Cel: +86-18098919495

Shenzhen TWSL New Energy Battery Equipment Co., Ltd
