• Model NO.：XB-OTS-206
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Outside Dimension (L*W*H)：86*43*80 mm
• Testing Range：1.5 mm
• Impale Cone：Height: 1
• Sample：175*175mm, 300*300mm
• Unit ( Optional)：Kg-Cm, Joule, or Designated
• Usage：Cardboard Puncture Resistance Tester
• Frequence Setting：1 ~ 999999
• Measuring Range：(1-48)J
• Transport Package：Standard Strong Wood Case
• Specification：ISO Ce
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9024109000
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-206 Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Outside Dimension (L*W*H) 86*43*80 mm Testing Range 1.5 mm Impale Cone Height: 1 Sample 175*175mm, 300*300mm Unit ( Optional) Kg-Cm, Joule, or Designated Usage Cardboard Puncture Resistance Tester Frequence Setting 1 ~ 999999 Measuring Range (1-48)J Transport Package Standard Strong Wood Case Specification ISO Ce Trademark OTS Origin Guangdong, China (Mainland) HS Code 9024109000 Production Capacity 248 Sets Per Month

Product Description

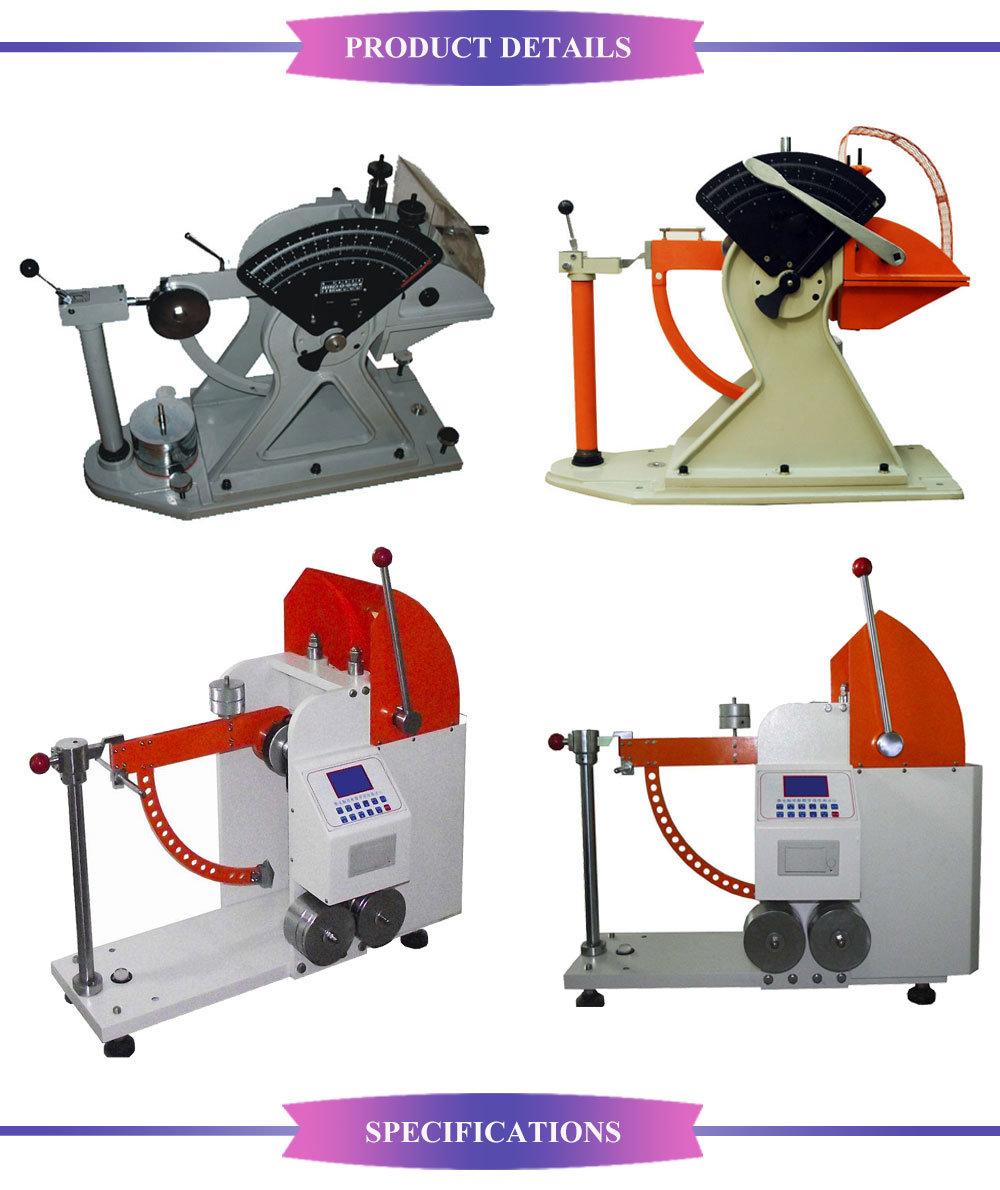

Digital Puncture Strength Testing Machine for Paper Rubber Fabric

Description :
   Digital type cardboard Puncture Tester is the dedicated equipment for corrugated cardboard.
Its parameter conforms to the related regulation. It has the characteristics of swift compaction, handle resetting automatically and safety protection, the testing result is high precise and reliable. It is the necessary equipment for the paper-making factory, research and quality supervision department.



Main technical parameters
Digital Type paperboard Puncture Strength Tester
Digital Type paperboard Puncture Strength Tester



Main features:
(1) Computer-controlled technology, open structure, high automation procedures, simple and convenient operation, safe and reliable.
(2) Automatic measurement, intelligent judgement, real time display of clamping pressure for sample by operation system.
(3) Automatically measure, count, print the test results, and data can be stored.
(4) Micro-high-speed thermal printer, high-speed print, low noise, no need for ink and ribbons, and it is easy to use and has low failure rate.
(5) Modern design concept of electro-mechanical integration, it has compact structure, elegant appearance and convenient maintenance.



The main technical parameters

Measuring Range	(1-48)J
Indication Error	Ruler A: ±0.05J; Ruler B:± 0.1J; Ruler C: ±0.2J; Ruler D: ±0.5J (within the limit range 20%~80% at each measurement)
Pointer Friction	<0.25J
Pendulum Shaft Friction and Air Resistance	>120 times ( Measured by the swing frequency of arm swing)
Triangular Pyramid	Side Length: 60×60×60 mm; Height: 25±0.7 mm; edge fillet Radius: 1.5±0.1 mm
Outside Dimension (L*W*H)	800*500*750 mm
Work Environment	Temperature: 5~35°C; Relative Humidity: ≤85%
Power	AC220V ±10%, 2A, 50Hz
Weight	Appro. 140Kg

Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer



Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .

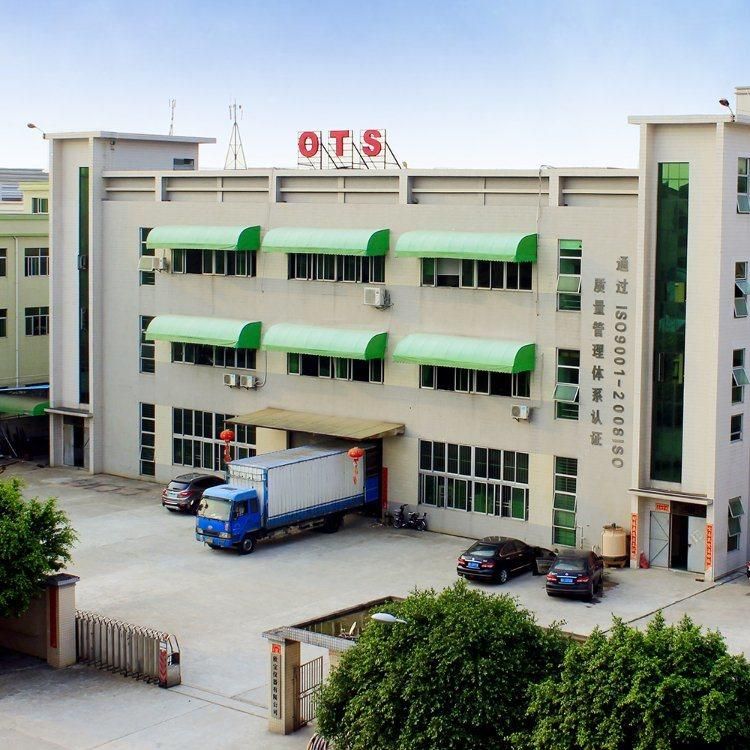

Our Company
OTS (Overall Testing System)
Was established in 1978, with 35 years' history
With 30,000 square meter salable production base and 120 employees
Is one of the leading companies solely dedicated to manufacture of
Environmental Simulation Test Chambers ,Physical Testing Equipment .
(such as  constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers  ;Tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement.With offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms:ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...



FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .



If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!
