• Model NO.：YT-YSKN
• Weight：100-500Kg
• Power Source：AC220V
• Test Items：Strength and Variant of The Carton
• Warranty Period：One Year
• Standard：ISO 12048
• Measuring Range：0 ~ 50000n
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9024800000

Basic Info.

Model NO. YT-YSKN Weight 100-500Kg Power Source AC220V Test Items Strength and Variant of The Carton Warranty Period One Year Standard ISO 12048 Measuring Range 0 ~ 50000n Transport Package Wooden Box Trademark YANTE Origin Hangzhou, China HS Code 9024800000

Product Description

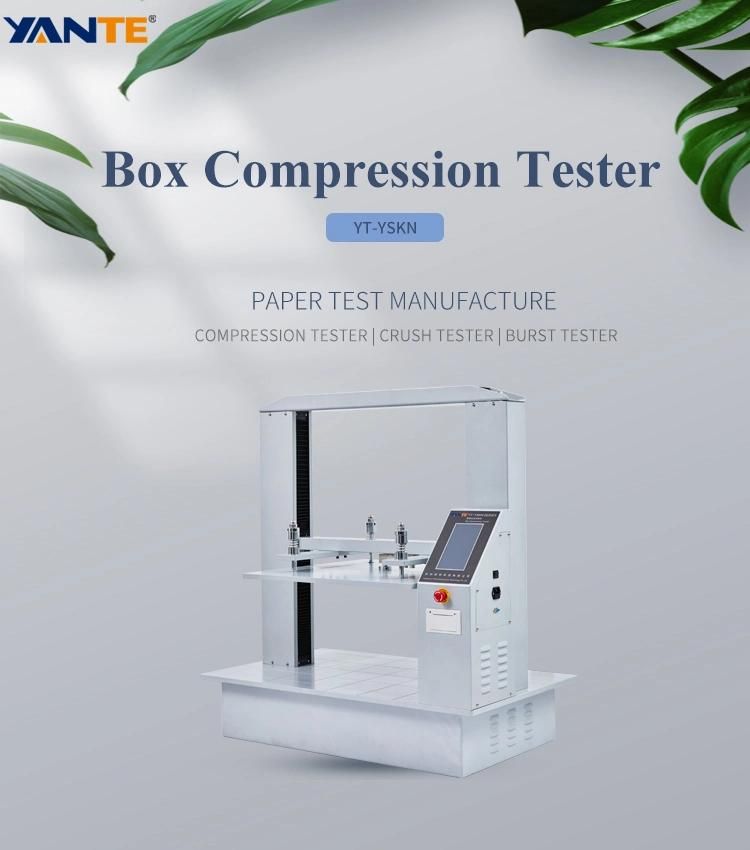

Box Compression Tester is a professional testing machine for testing the compressive performance of cartons. It is suitable for compressive tests of corrugated boxes, honeycomb boxes and other packaging boxes. It is also suitable for the compression test of plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels) and other containers.

Product Function
Strength test
Stacking strength
Constant value


Product Features

Double precision ball screws and double precision guide rods, stable operation and precise displacement
ARM processor, 24-bit imported analog-to-digital converter, improve the response speed and test accuracy of the instrument.
Real-time display of the pressure change curve during the test.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Communication with computer software (purchase separately)


Application Range
Cartons, beer crates, paper tubes, paper cups, color boxes, milk crates, etc.;
Food and beverage instant noodle packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc.



Executive Standard
GB/T 4857.4,GB/T 4857.3,QB/T 1048 ,ISO 12408,ISO 2234



Technical Parameters


No.	Parameter item	Technical index
1	Power Supply/Motor	10KN :AC100-240V, 50Hz/60Hz 400W  /DC stepper motor (Chinese brand ) 20KN:AC220V±10% 50Hz 1kW         /AC servo motor (Panasonic) 30KN:AC220V±10% 50Hz 1kW         /AC servo motor (Panasonic) 50KN:AC220V±10% 50Hz 1.2kW       /AC servo motor (Panasonic)
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	(0~10)kN/(0~20)kN/(0~30)kN/(0~50)kN
5	Resolution	1N
6	Indication accuracy	±1%(Range 5%~100%)
7	Measured Area	600×600mm/800×800mm/1000×1000mm/1200×1200mm customizable
8	Work Capacity	600mm/800mm/1000mm/1200mm/1500mm customizable
9	Press Speed	10mm/min(1~99)mm/min(Arbitrary adjustment)
10	Parallelism Between Plates	≤1:1000 (Example: pressure plate 1000×1000 ≤1mm)
11	Return Speed	(1~120)mm/min(Stepper motor)or(1~250)mm/min(AC servo motor)
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	According to actual condition
