• Model NO.：AIC-60695II
• Display：LCD
• Control：Touch Screen
• Timing Range：0 to 99 Minutes 99 Seconds Adjustable
• Power Supply：AC220V±10%,50Hz
• Pressure：0.8n ~ 1.2n
• Temperature Sensor：Φ0.5K Armored Thermocouple
• Color：White
• Language：English
• Operation：Automatic
• Test Object：Electrical and Electronic Products etc
• Price：Low
• Transport Package：Plywood Case
• Specification：stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. AIC-60695II Display LCD Control Touch Screen Timing Range 0 to 99 Minutes 99 Seconds Adjustable Power Supply AC220V±10%,50Hz Pressure 0.8n ~ 1.2n Temperature Sensor Φ0.5K Armored Thermocouple Color White Language English Operation Automatic Test Object Electrical and Electronic Products etc Price Low Transport Package Plywood Case Specification stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 50 Sets/Month

Product Description

Introduction:
This Glow Wire Test Apparatus is designed according to IEC60695-2-10: 2000 standard "glowing filament test method". It is applicable to electrical and electronic products, household appliances and materials fire hazard testing, simulate burning elements or overload resistance and the like heat or ignition source thermal stress caused by a short time.
Glow Wire Test Apparatus adopts chamber part and control part integrated design, convenient installation and debugging. Test chamber shell and important parts of stainless steel manufacturing, smoke, gas corrosion resistance; Automatic regulation control system adopts thyristor current, achieve the purpose of precise control temperature; Time, temperature digital display, easy observation records, stable and reliable use.



Standard:
IEC60695-2-10 ~ 13,UL 746A, IEC829, DIN695, VDE0471





Technical Parameters:
1. Temperature range: 500 ~ 1000 ºC, digital display adjustable,
2. Temperature error: ± 10 ºC (500 ~ 750 ºC); ± 15 ºC (750 ~ 1000 ºC), temperature measuring instruments Accuracy ± 0.5 magnitude.
3. Temperature sensors: imported Φ0.5K type armored thermocouple,.
4. Pressure applied to the specimen: 0.8N ~ 1.2N, and limit the indentation depth of at least 7mm.
5. Timing range: 0 to 99 minutes 99 seconds adjustable, timing error ± 1s.
6. The glowing wire test apparatus can test Shi burning time (Ta, generally according to standards set to 30), second holding burning time (Ti) and the flame goes out time (Te) of the timer;
7. Ignition bedding layer: 10mm thick white pine wood, covered 12g / m2 ~ 30g / m2 standard tissue paper, from under the glow wire 200mm ± 5mm
9. Instrument operation is simple, stable and reliable temperature measurementsystem,and automatic temperature compensation.
10. Power supply: AC220V ± 10% / 50Hz. (Other power specifications can be customized).
11.Dimension: 710*365*760mm
12.Weight:30kg

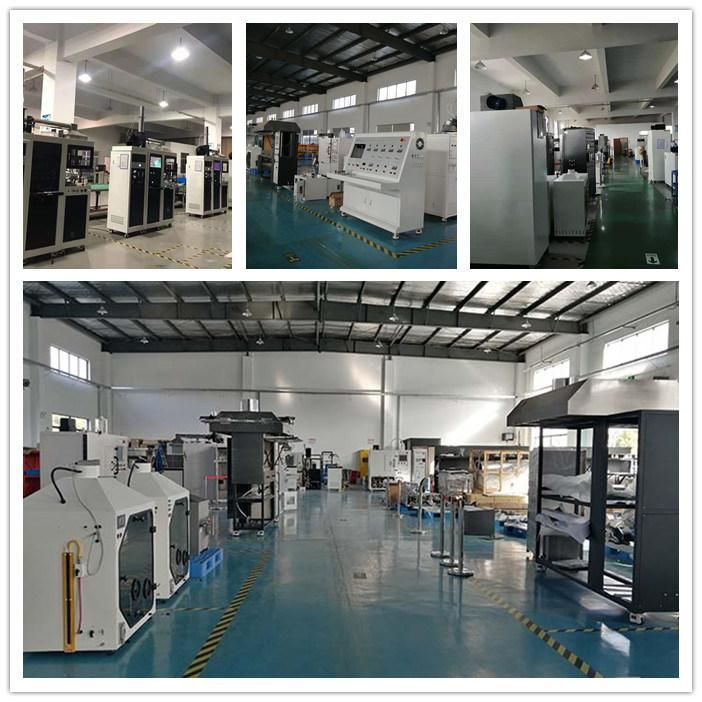

 Factory overview

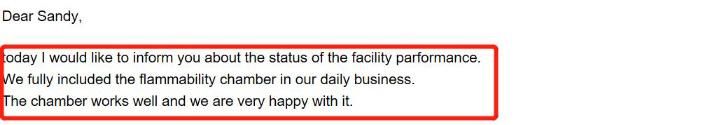

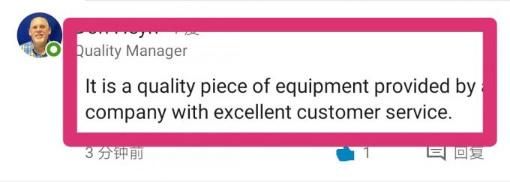

Customer Feedback

Germany

USA

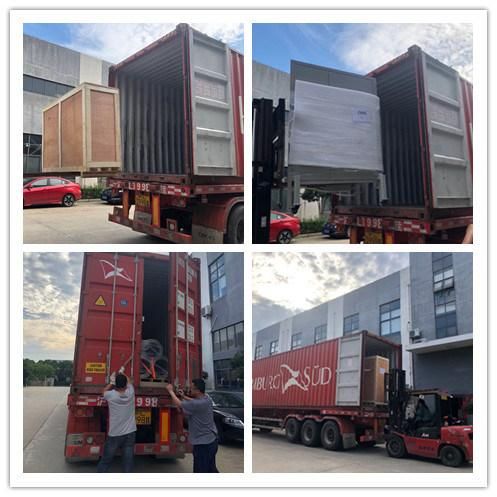

Pacakge

FAQ
1.What's the delivery time?
About 35 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
