New Generation Simple Operation Accurate Safe Cable Identification Instrument Power Cable Identifier
Xi'an Xu&Hui Electromechanical Technology Co., Ltd.- After-sales Service：Technical Support
- Warranty：1 Year
- Test Mode：Saved Test
- Usage：Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
- Test Region：Forming Cable
- Power：Electricity
Base Info
- Model NO.：XHGG501B
- Certification：CE
- Customized：Customized
- Color：Orange
- Measure Distance：60km
- Resolution：0.5m
- Temperature：-10 ºC~50ºC
- Pulse Amplitude：100V P-P
- Measuring Method：Tdr Measurement Method,Floshover Sampling etc.
- Transport Package：Wooden Box with Foam Inside
- Specification：350mm*280mm*170mm
- Trademark：XZH TEST
- Origin：China Xi′an
- HS Code：9030899090
- Production Capacity：1000pieces,Year
Description
Overview
Display Industrial grade 5.7 "LCD display---Angle view>160,2,SCM centralized control, push button operation , with strong anti-interference ability;. Measuring method TDR Measurement method flashover sampling and impulse current method Pulse amplitude 100Vp-p Pulse width 0.1uS ...2uS Output impedance 50 Ω Resolution 0.5m Dynamic range >75db Measuring distance 15m ...30km Location distance ±20m(it should be noted that in reality, the location distance is affected by the following factors, the choice of medium, on-site
measurement, and human analysis) Dead zone None Accuracy of distance measurement ±1% Power supply AC 220V+/-10% 50Hz;DC 24V/7Ah, continuous work for 6 hours Data storage 10 set Working conditions
temperature: -10 ºC ~ +45 ºC Relative humidity:90%
Product Description

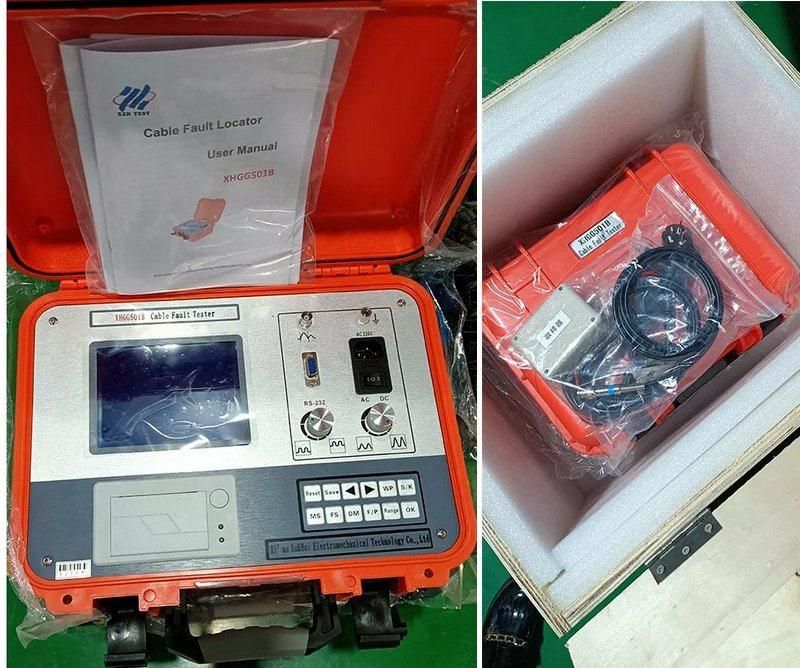

Detailed Photos
