Vf-1 CFR1615 Children′s Sheepwear Flammability Tester
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Online Training, Reply Customer′s Question in 12h
- Warranty：12 Months
- Description：CFR1615 Children′s Sheepwear Flammability Tester
- Reference Standards：CFR 1615,1616, ASTM D6413, Calif Tb117
- Test Objects：Upholstered Furniture,
- Application Field：Upholstered Furniture
Base Info
- Model NO.：VF-1
- Functions：Measure Vertical Flame Spread of Child′s Sleepwear
- Features：CFR1615 Standard Sheepwear Flammability Tester
- Power Supply：110V AC 60Hz , 230V AC 50Hz, 10A
- Trade Term：Fob, CIF, DDU, EXW, etc.
- Payment Term：30% as Deposit, The Balance Before Delivery
- Delivery Lead Time：20 Days
- Shipping Method：by Air or Express
- Dimension：350mm(W) X 350mm(D) X 700(H)mm
- Weight：8kg
- Gas Supply：Methane
- Transport Package：Sheepwear Flammability Tester Pack in Veneer Case
- Specification：350mm(W) X 350mm(D) X 700(H)mm
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：10 Sets Sheepwear Flammability Tester,Month
Description

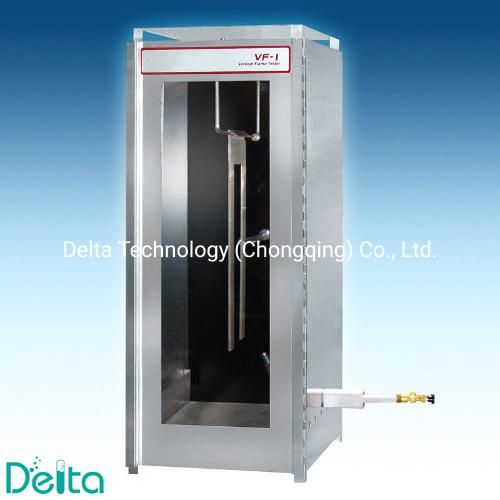

VF-1 CFR1615 Children's Sheepwear Flammability Tester is for measuring the vertical flame spread for children's sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture. Meet CFR 1615/1616, ASTM D6413 and CALIF TB117.
No. Item Name VF-1 CFR1615 Children's Sheepwear Flammability Tester 1 Application field Upholstered Furniture 2 Reference standards CFR 1615/1616, ASTM D6413, CALIF TB117 2 Dimension 350mm(W) X 350mm(D) X 700(H)mm 3 Weight 8kg 4 Power supply 230 volts Nominal 10 Amps 5 Ambient temperature Operating 25±5ºC 6 Gas supply Methane
Features:
- Stainless steel test cabinet with glass observation panel.
- Back wall painted black for easy test viewing.
- Specimen holders, burner and associated hardware are dependent on the test standard and must be specified.
- Separate enclosure for manual gas controls is located away from the flame chamber for operator convenience.Bunsen Burner assembly is available per request.
Specifications:
