• Model NO.：YPO-480
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Temperature Range：Room Temperature 10degrees to 300degrees
• Heating up Time：30 Minutes

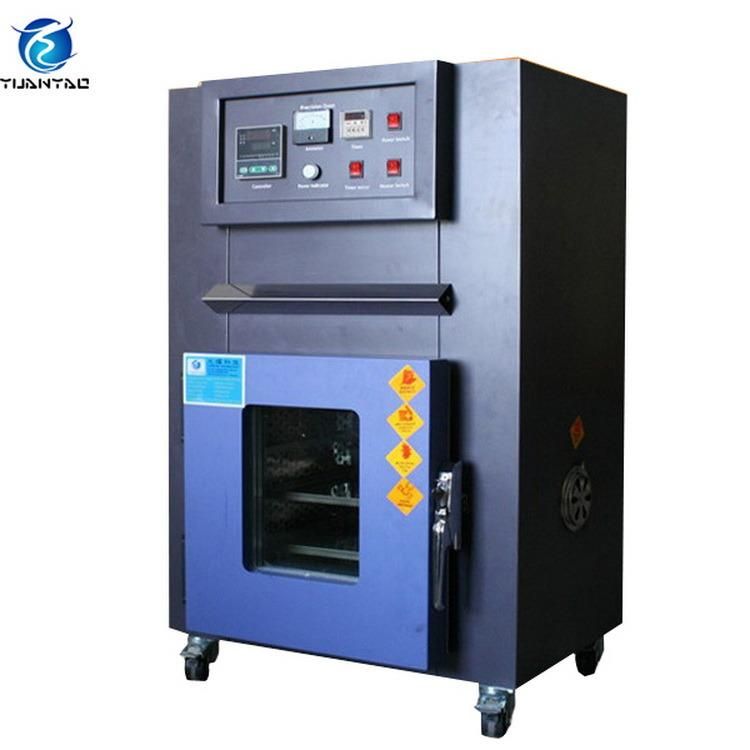

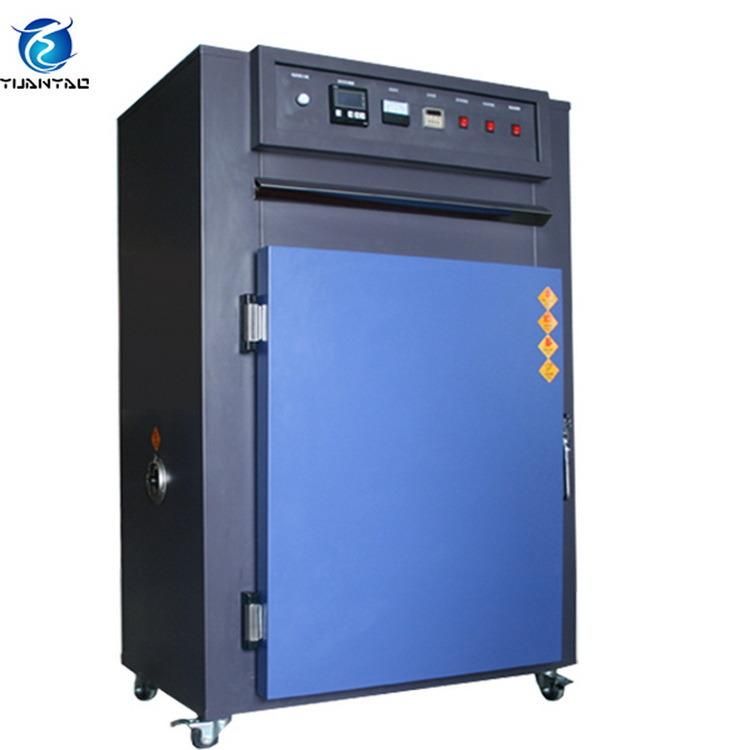

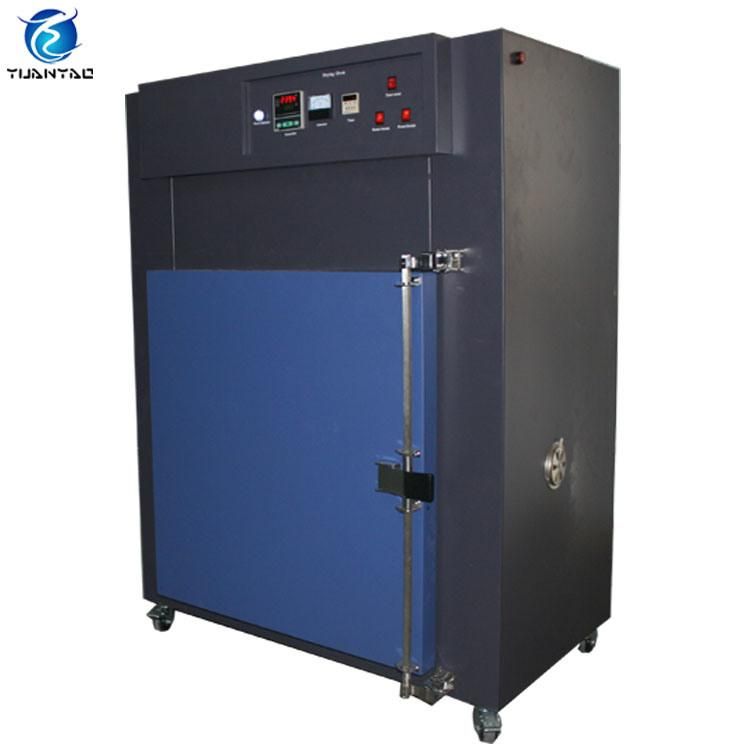

• Product Name：Laboratory Drying Cabinet
• Temperature Uniformity：+,-1degrees
• Warranty：12 Months
• Certificate：CE Certificate
• Power Supply：AC 3 Phase 380V 60,50Hz
• Inne Chamber Size W*H*D：800*1000*600(mm)

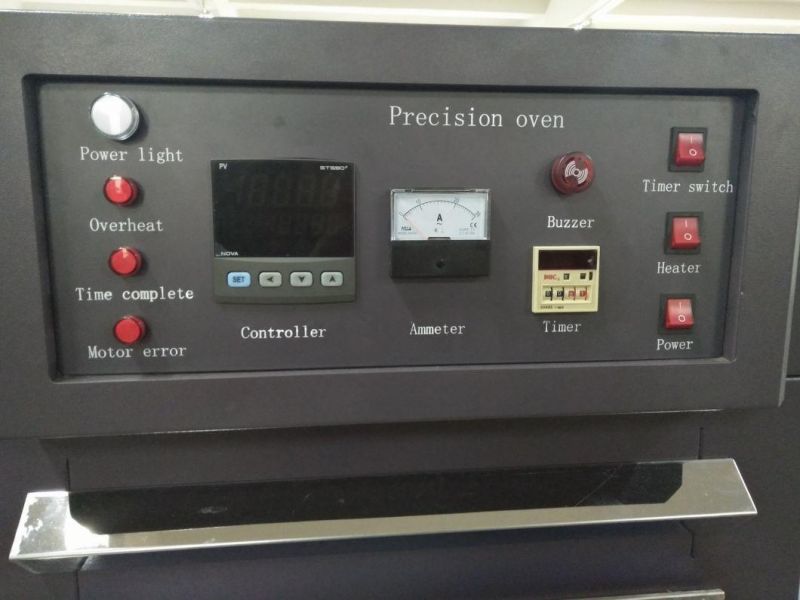

• Controller：Omron E5az Controller
• Transport Package：Strong Plywood Carton
• Specification：CE, ISO, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：8501510010
• Production Capacity：100sets,Month

ModelYPO-072YPO-270YPO-480YPO-600YPO-720Inner chanber size W*H*D(mm)400*450*400600*900*500800*1000*6001000*1000*6001200*1000*600Exterior chanber size W*H*D(mm)750*1100*5501150*1650*7401300*1700*8401500*1750*8401850*1750*840Temperature RangeRoom temperature 10ºC ´ 200ºC(300ºC)PerformanceTemperature control accuracy ±0.3ºCTemperature uniformity±1ºCTemperature resolution0.1ºCClean classClass100´class1000Heat-up time30minutesMaterialExterior chamber material Stainless steel plate+Powder CoatedInterior chamber material SUS#304stainless steel plateFiltersHEPA FiltersInsulation PU & Fiberglass woolSystemWind Circulation Sirocco fanHeating system SUS#304 stainless steel high-speed heaterController Omron E5AZ controllerOther components cable port(60mm),control status indicator lights,loading shelves(2pcs for free)Safety Devices Overheating circuit-breaker, compressor overload protection, control system overload protection,humidifying system overheating protection, breakdow indicator lightPower supply AC380V 60/50HzCustomizationCustomization of inner chamber size, temperature & humidity range etc.
