Test Instrument

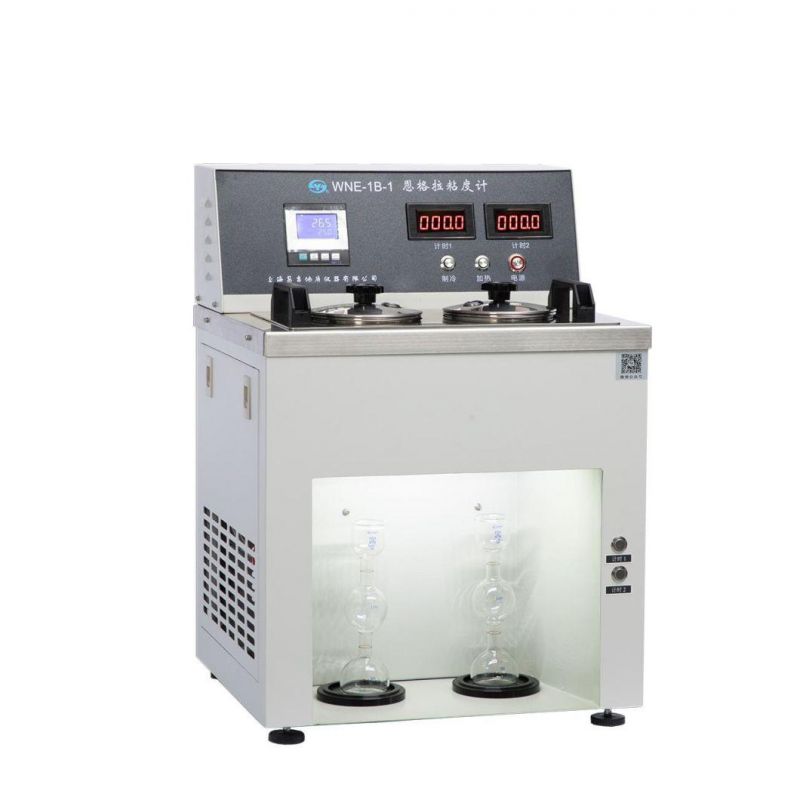

WNE-1B-1 Engler Viscometer of Bitumen and Bituminous Mixtures

Shanghai Changji Geological Instrument Co., Ltd.
  • After-sales Service:Yes
  • Warranty:1 year
  • Power supply:AC(220±10%)V, 50Hz
  • Maximum power consumption:1200W
  • Standard water value:K20=(51±1)s, asphalt sample, ×0.224
  • Temperature range:(20~100)ºC

Base Info

  • Model NO.:WNE-1B-1
  • Temperature controlling:(20±0.1)ºC, (25±0.1)ºC
  • Ambient temperature:(15~28)ºC
  • Relative humidity:≤85%
  • OEM:Yes
  • Transport Package:by Carton or by Wooden Case
  • Specification:63*30*50cm
  • Trademark:SHANGYI
  • Origin:China
  • HS Code:9021809090
  • Production Capacity:1000 Sets,Month

Description

Product IntroductionThis instrument is designed and made as per national standard GB/T266 Petroleum Products- Determination of Engler Viscosity, T0622 Bitumen Engler Viscosity Determination(Engler viscometer method) in national industrial standard JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering and Shanghai enterprise standard Q/YXYY11 WNE-1 Engler Viscometer.It is suitable to determine the rate of time(seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20ºC under certain temperature and cubage.This rate is the Engler viscosity.Unit is Engler degree.
WNE-1B-1 Engler Viscometer of Bitumen and Bituminous MixturesModelWNE-1B-1Power supplyAC(220±10%)V, 50HzTotal power consumption1200WStandard water valueK20=(51±1)s,(when the sample is asphalt:K20×0.224)Temperature range(20~100)ºCTemperature controlling(20±0.1)ºC, (25±0.1)ºCTemperature control accuracy±0.1ºCAmbient temperature(15~28)ºCRelative humidity≤ 85%Net weight24kg Packing&DeliveryWNE-1B-1 Engler Viscometer of Bitumen and Bituminous MixturesCompany Profile

WNE-1B-1 Engler Viscometer of Bitumen and Bituminous MixturesShanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of  the National Geology and Mineral Resource.

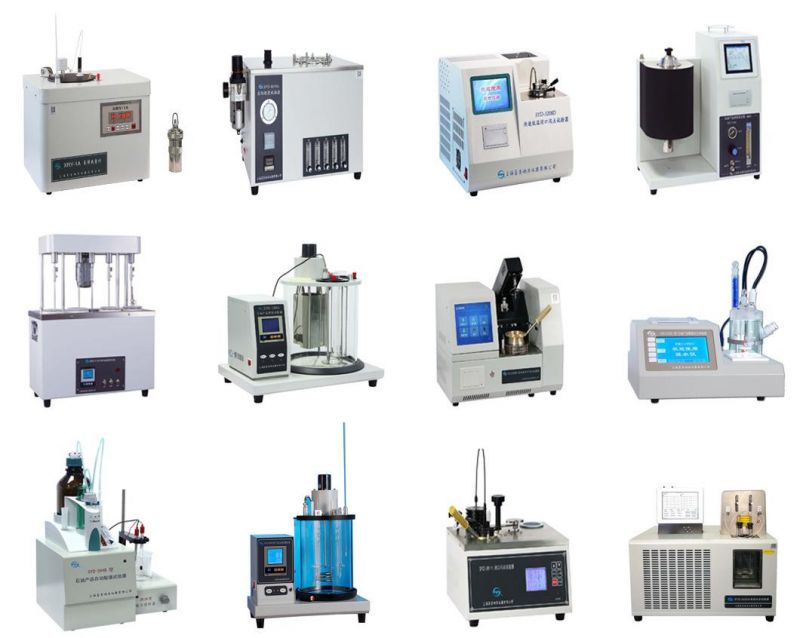

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.


Shanghai Changji Geological Instrument Co.Ltd mainly develops and produces petroleum products analyzing instruments ,  highway detecting instruments, geological instruments and lab instruments. Shanghai Changji is with strong technical strength,  large service team and sales, and strict quality manage system makes the market superior of  Changji.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.WNE-1B-1 Engler Viscometer of Bitumen and Bituminous MixturesFAQ

1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.

2. How can I choose the right one for me?
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.

4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated  places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
CertificatesWNE-1B-1 Engler Viscometer of Bitumen and Bituminous MixturesSimilar RecommedationWNE-1B-1 Engler Viscometer of Bitumen and Bituminous Mixtures
