Test Instrument

Home > Product > Test Machine

Dual Voltage Load Bank Rack Mounted Loadbank for Data Center

Hebei Kaixiang Electrical Technology Co., Ltd.
  • Warranty：12 Months
  • Rating Voltage：AC Single Phase 220V or DC 270V
  • Power：Electronic
  • Way of Working：Continuous
  • Cooling：Forced Air Cooling
  • Dimension：431mm *451mm*177.8mm

Base Info

  • Model NO.：AC,DC 220,270V-4KW
  • Transport Package：Wooden Box
  • Trademark：TriumphLoad
  • Origin：China
  • HS Code：9030339000
  • Production Capacity：20000 Sets, Per Year

Description

Brands of Main Components

Gear Switch

ABB





2. Rack Mounted Load Bank 4KW Main Functions

(1) Load Test: User can load any power within rated power, and test the output capacity of under test power supply.

(2) Control Mode: The laod bank is with 1 gear switch and 1 fan switch, can control loading/unloading after starting the fan.

(3) Fan Power Supply: Fan is installed near the air outlet, and powered on A/N phase. At first, connecting to power supply, turn on the fan switch, the fan can be started, then can load/unload through the gear switch. Don't to load before fan started.

(4) Temperature Protection: There will be sound and light alarm when the load bank temperature exceeds the safety threshold value.

(5) Load bank Cable: The internal cable adopts multi core flame retardant flexible cord, and with glass fiber casing protection



3. Rack Mounted Load Bank 4KW Operation Caution



The load bank is with 1 gear switch and 1 fan switch. At first, turn on the fan switch to start up, then can load/unload through the gear switch after the fan work normally, Max power is 3.6kW. Please keep the fan switch is in the open state when operating. If overheat alarm, please turn off the power switch and then check the equipment problem.

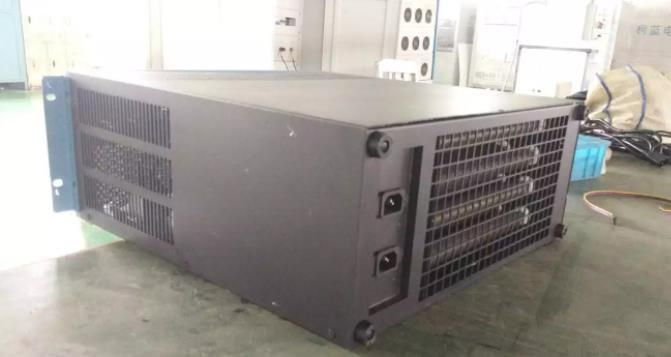

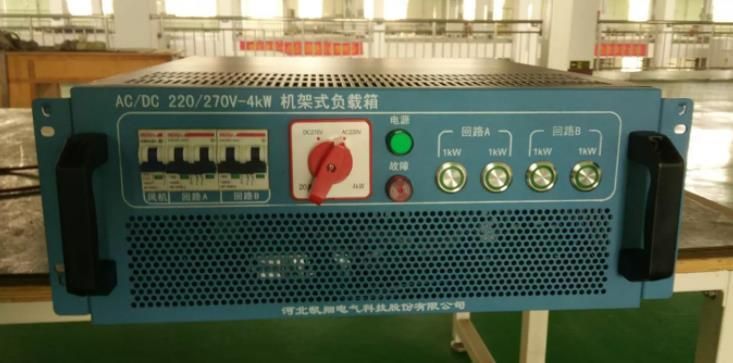

4. Rack Mounted Load Bank 6KW Picture
Dual Voltage Load Bank Rack Mounted Loadbank for Data CenterDual Voltage Load Bank Rack Mounted Loadbank for Data CenterDual Voltage Load Bank Rack Mounted Loadbank for Data Center

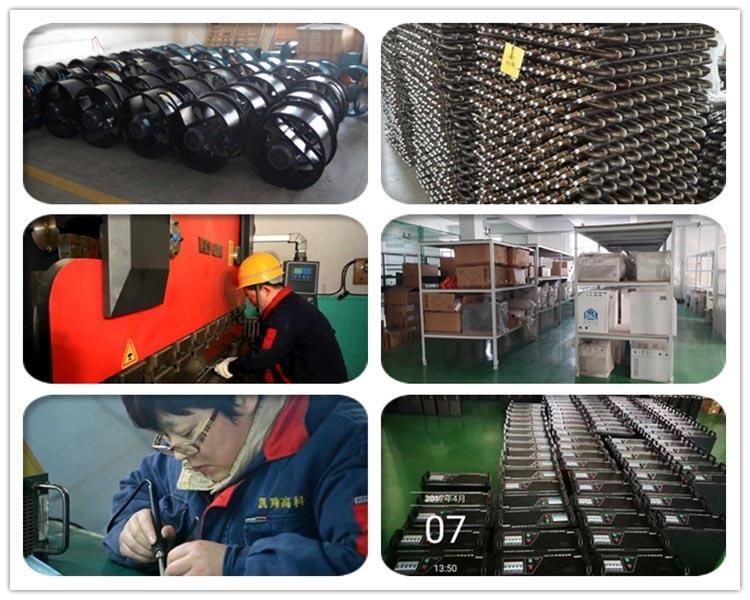

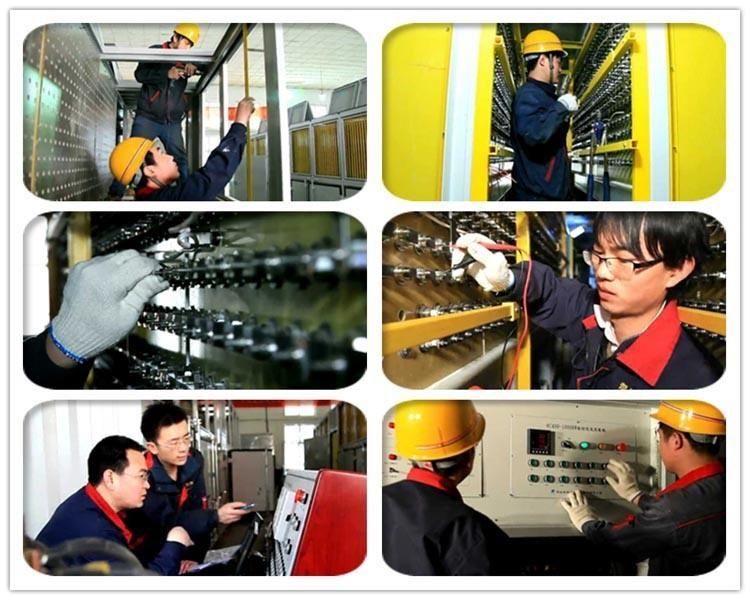

Our company

Dual Voltage Load Bank Rack Mounted Loadbank for Data CenterDual Voltage Load Bank Rack Mounted Loadbank for Data CenterDual Voltage Load Bank Rack Mounted Loadbank for Data Center



6. Why choosing us

  1. The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
  2. The most patent technology and scientific research awards gainer in China.
  3. Advanced detection method and strict inspection procedure build the qualified quality.
  4. Customized production meet the individual requirement.
  5. Prompt delivery & excellent after sales service.
  6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
  7. Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
  8. Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
