• Model NO.：TWSL-8856
• Current Level：60A, 120A
• Weight：50kg
• Series Number：1-32
• Transport Package：Wooden Box
• Specification：800*700*1280mm
• Trademark：TWSL,JXC
• Origin：Shenzhen
• Production Capacity：50 Set,Month

Basic Info.

Model NO. TWSL-8856 Current Level 60A, 120A Weight 50kg Series Number 1-32 Transport Package Wooden Box Specification 800*700*1280mm Trademark TWSL/JXC Origin Shenzhen Production Capacity 50 Set/Month

Product Description

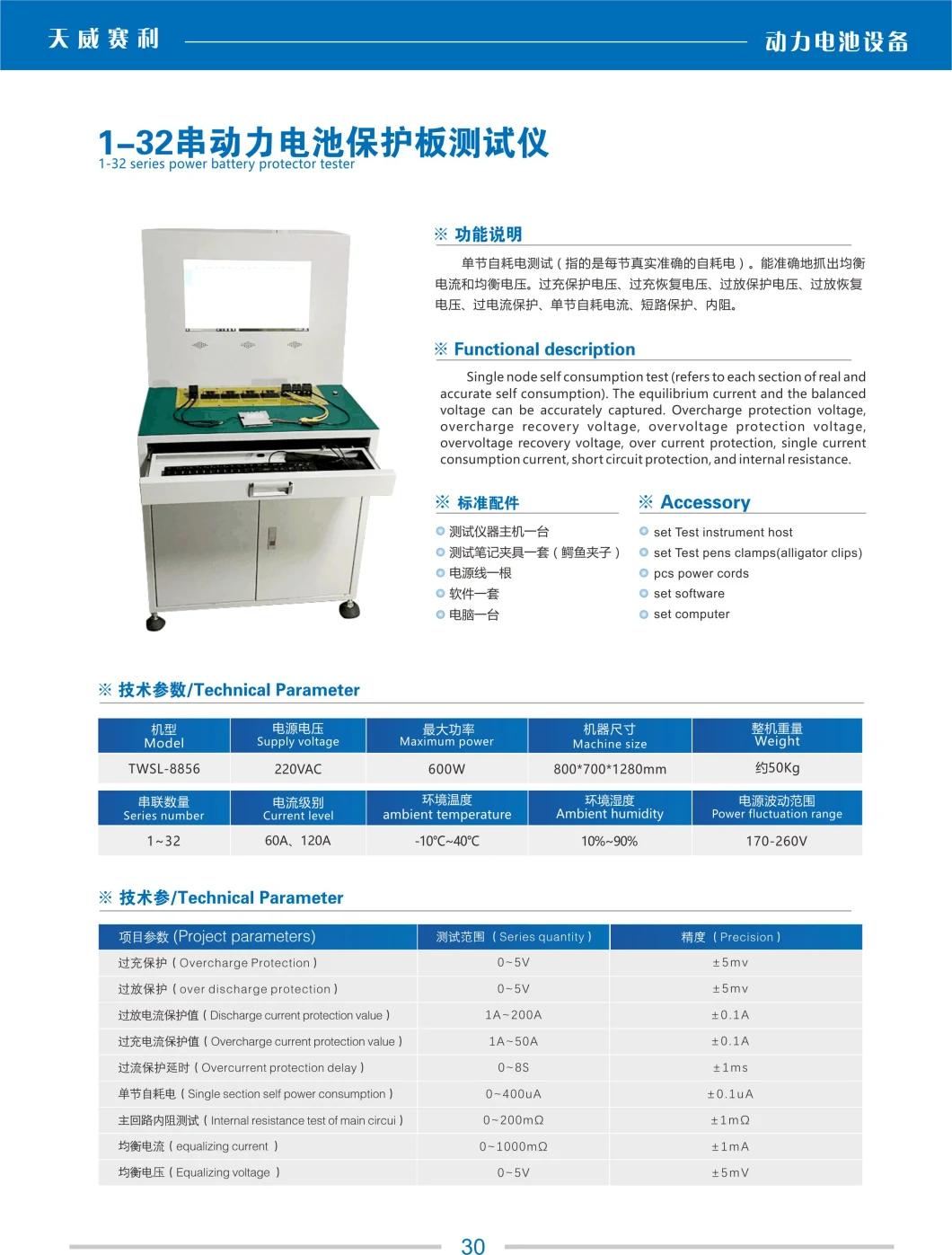

Professional Manufacturer 1-32 Series Power Battery Pack Tester Twsl-8856

Product Features:

Single node self consumption test(refers to each sextion of real and accurate self consumption).the equilibrium current and the balanced voltage can be accurately captured.overcharge protection voltage,overcharge recovery voltage,overvoltage protection voltage,overvoltage recovery voltage,overy current protection,single current consumption current,short circuit protection,and internal resistance

Application:
TWSL-8856 multi-function PCB board testing system mainly faces the PCB board manufacturer and power battery pack manufacturer for detection of battery protecting board.

Features:
1, Short circuit protection test 2, Self consumption of each PCB board test
3, Equalizing current and balance voltage test
Specification:
Size(L*W*H): 800*700*1280mm; Net weight: 50KG

Operating environment:
Input power from 170-260V, Temperature from -10ºC-40ºC, humidity from 10%-90%, Maximum power 600W.

Detailed configuration:
Item Range Accuracy
Test rate of series 1-36 series optional
Over charge protection 0-5V ±5mV
Over discharge protecting 0-5V ±5mV
discharge current protection value 1A-200A  ±0.1A
Over charge current protection value 1A-50A  ±0.1A
Over current protection delay 0-0.8S  ±1ms
Single section self power consumption 0-400uA ±0.1uA
Internal resistance test of main circui 0-200MΩ ±1mΩ
Equalizing current 0-1000mΩ  ±1mA

Equalizing voltage 0-5V  ±1mV



Packing and shipping


*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7 working days after we received your battery pack samples.
                      Customized Machine: 30-45 days


Payment Method
T/T,
30% or 50% deposit or full payment, it depends


Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided

Company Information

Shenzhen TWSL New Energy Battery Equipment Co., Ltd is a 12-year expert in factory automatic production machines. Our main products are used in manufacturers of batteries for power bank, laptops and cell phones. Besides the batteries pack & spot welding, we also supply low pressure injection machines at all kinds of customers' requests. With our machines, global factories can speed up their production rates and greatly enhance their business expanding efficiency. We can give advices about how to open your own factories. So far we have 8 engineers and 2000 square meters workshop. We can help you to build your own factory and expand your business! Any interests, please feel free to contact us!

We've gained more than 75% market shares in China with leading technology and service, and are trusted by world giants like BYD, SCUD and Desay, etc.

For successful cases:
we recommend:
In China: Like SCUD, Desay, UTEK, LISHEN, GREAT POWER, SUNWOOD, LARGE, TIANNENG Battery, SUMEC.etc.
In India, like INTEX,  ICCON, LIVGUARD, AXIOM, Fusion Power, Ambrane. I.E.,  RX infotech, Greenway, ADIT,  etc,
In US: Like Holley, MSD,
Others country customers, like Germany Varta, Korea Chience, PowerCraft, ect.

Customers Show



Certification




FAQ

Q: What can your machines do?

A: Make the batteries production automatically.

    Save the factory owner's invest and better the efficiency.



Q: What kind of items can your machines produce?

A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.



Q: How can I see samples or know more about the machines?

A: We have real time video on Youtube.

    Please contact our sales to get the links.

    Indian friends can visit our New Delhi sales office and see the machine by yourselves.



Q: Do you have a MOQ for orders?

A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.

     Our factory MOQ is 1 set.



Q: Do you have any warranty or certifications?

A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.

    All of our products are with CE certifications and are good to export worldwide.



Q: I am a new factory owner. Can I get some advices about automatic production?

A: You can tell us the ideal turn-over you want for your new factories.

    Our professional engineers and sales shall provide you with budget and costs how much it takes.


Looking forward to establish good business relationship with you in the near future,any question,please contact me
