Computerized Hydraulic Compression Tester
Jinan Kason Testing Equipment Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：3000kg
- Type：Compression Testing Machine
- Maxcapacity：100kn,200kn,300kn
- Accuracy Grade：1
- Load Way：Mechanical Load
Base Info
- Model NO.：YAW-1000,2000,3000D
- Loading Method：Static Load
- Display：Computer
- Control：Manual Control
- Weight：500-1000Kg
- Power Source：AC 380V ,220V
- Oil Cylinder Position：Under
- Color：Gray, White , Blue,Green or Customized
- Resolution：0.01kn
- Distance Between Pressure Plate：320mm
- Distance Between Columns：280mm
- Pressure Plate：250*250mm , 270*270mm or Customized
- Max Test Force (Kn)：2000kn
- Test Value Accuracy (%)：Better Than 1%
- Test Force Resolution：0.01kn
- Oil Cylinder Stroke：50mm
- Certificate：Ce ISO
- Transport Package：Standard Sea Shipping Case
- Specification：630*457*1410mm
- Trademark：HST or OEM
- Origin：China
- HS Code：9024800000
- Production Capacity：500 Sets,Month
Description
2.0kW/ AC 380V

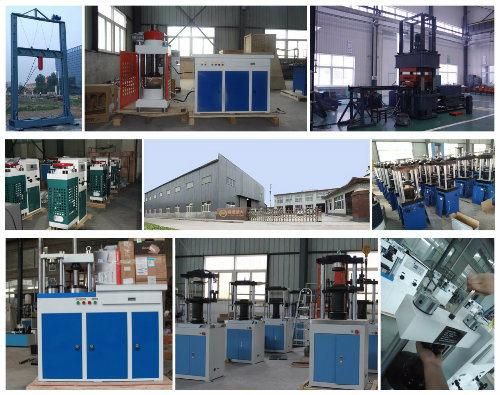

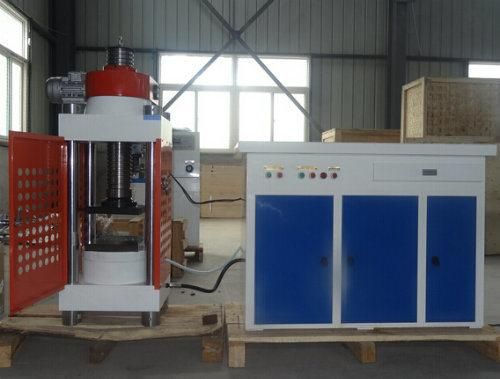

4. Real Pictures:
5.Package:
6. Certificate
7.Company information:
8. Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine: 150/300/250/500/750J
C: Compression Testing Machine: 100/200/300/1000/2000/3000KN
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Metallographic Equipments:cutting, mounting, polishing and grinding machine, microscopes.
