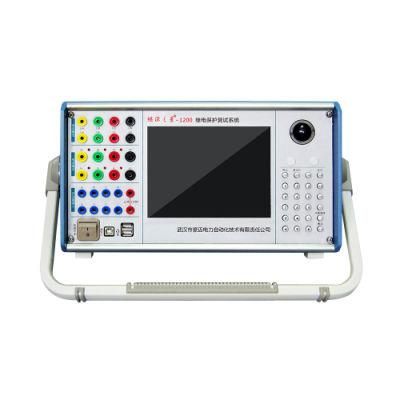

Six-Phase Universal Multi Application Directional Protection Relay Test Machine
Haomai Electric Power Automation Co., Ltd.- After-sales Service：on-Site Training
- Warranty：3 Years
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：HME-1200
- Display：Digital
- Control：Computer Control
- Weight：0-100kg
- Power Source：AC220V
- Type：Electric Power Tester
- Maxcapacity：Electric Power Tester
- Accuracy Grade：0.1%
- Oil Cylinder Position：No
- AC Current Output：6 Routes, 30A,450va
- AC Voltage Output：6 Routes, 120V,84va
- AC Output Accuracy：0.2%
- DC Current Output：6 Routes, ±10A,200va
- DC Voltage Output：6 Routes, ±160V,80va
- DC Output Accuracy：0.5%
- Transport Package：Standard Export Wooden Package
- Specification：420× 360× 210mm3
- Trademark：RELAYTESTAR
- Origin：Hubei China
- HS Code：9030820000
- Production Capacity：5000platform,Year
Description
Product Description
High Power 6-phase Protection Relay Test SystemSetting Range 6-Phase AC(L-N) 6x0…40A 3-Phase AC(L-N) 3x0…80A 1-Phase AC(LL-LN) 1x0…240A DC(L-N) 6x0…±20 A Power 6-Phase AC(L-N) 6x300VA At 40A 3-Phase AC(L-N) 3x450VA At 80A 1-Phase AC(LL-LN) 1x1000VA At 240A DC(L-N) 6x120VA At 20A Accuracy AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A) Resolution 1mA Setting Range 6-Phase AC(L-N) 6x0…150V 3-Phase AC(L-N) 3x0…300V DC(L-N) 6x0…±175V Power 6-Phase AC(L-N) 6x80VA At 150V 3-Phase AC(L-N) 3x100VA At 300V DC(L-N) 6x80VA At 175V Accuracy AC: ±2mV(0.2~2V), ≤0.1% (2~150V) DC: ±10mV (0.5~5V), ≤0.2% (5~175V) Resolution 1mV Auxiliary DCFrequency Range: 0~1200Hz Accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) Resolution: 0.001Hz Phase Range: -360° ~+360° Accuracy: 0.1° Resolution: 0.01° Harmonic Superposition Order: 2~24 Times Distortion: ≤0.5% Certifications Company Profile
