• Model NO.：XB-OTS-DC500
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Maximum Load：120kg
• Acceleration Rate：98.1m,S^2
• Sweep Rate：1 Octave,Min
• Certificate：ISO 9001:2008
• Uses：High Frequency Vibration Testing Machine
• Transport Package：Standard Strong Wood Case
• Specification：730*550*650mm L*W*H
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9031809090
• Production Capacity：248 Sets Per Month

Basic Info.

Model NO. XB-OTS-DC500 Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Maximum Load 120kg Acceleration Rate 98.1m/S^2 Sweep Rate 1 Octave/Min Certificate ISO 9001:2008 Uses High Frequency Vibration Testing Machine Transport Package Standard Strong Wood Case Specification 730*550*650mm L*W*H Trademark OTS Origin Guangdong, China (Mainland) HS Code 9031809090 Production Capacity 248 Sets Per Month

Product Description

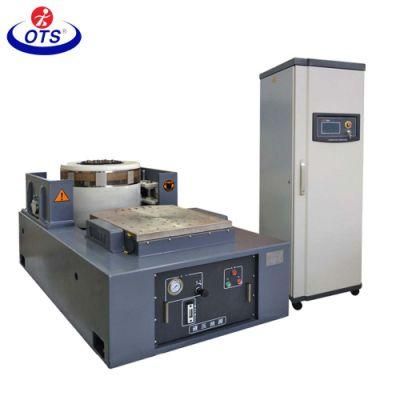

Lab Equipment High Frequency Mechanical Vibration Test Bench




Model: XB-OTS-DC500


Description & Application:
 High Frequency Electromagnetic Vibration Test Machine / (Electromagnetic Vibration Test Equipment) is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles,  Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.


Feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

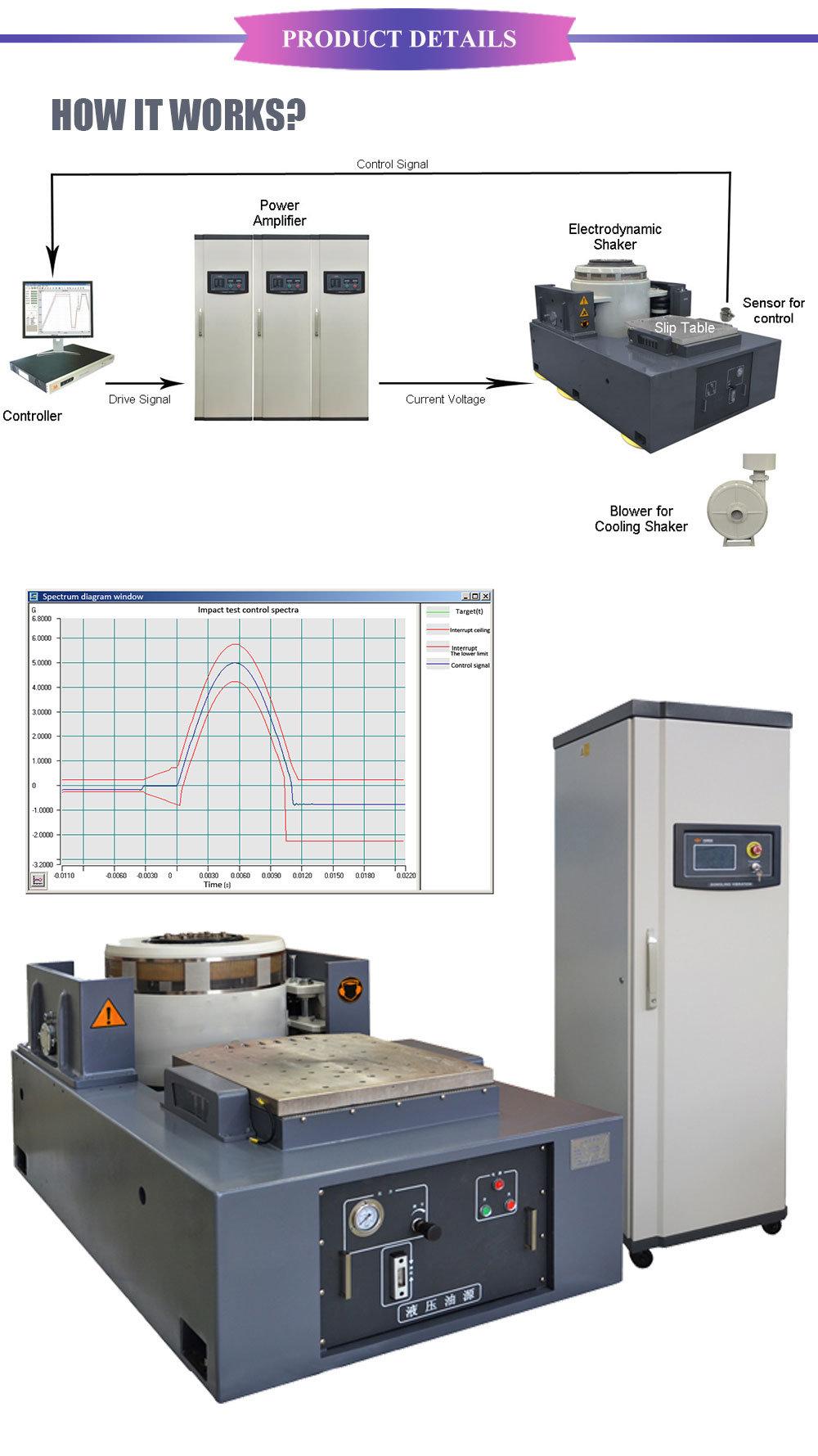

Composition of High Frequency Electromagnetic Vibration Test Machine
Vibration test bench, power amplify, cooling fan,Slip table,vertical expander


Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.


Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect


Specification :

Brand	OTS
Type	Circular
Transmission Structure	Electromagnetic Shaker
Works	Electrodynamic Vibration
Axis	3 Axis
Frequency range	5-2000Hz
Amplitude	10-16hz+-10mm
Sweep rate	1 octave/min
Number of axes	3(X-Y-Z)
Duration	90 min 2 cycles per axis
Supporting Device	Coil Spring
Customized	Customized
Rated Sine Force (N)	1000 to 3500000
Frequency Range (Hz)	3 to 3500
Rated Velocity(M/S)	1.2 to 1.8
Function	High Frequency Vibrating Screen
Usage	Experiments Shaker
Object	Electronic Parts
Running Track	Circular Vibrating Screen
Condition	New
Rated Random Force (N)	1000 to 3500000
Rated Acceleration(M/S2)	400 to 1000
Rated Displacement (P-P, mm)	25 to 91
Power	AC380V ,3 pH 3 Lines
Warranty	1 Year
Certificate	CE

Packing & Shipping:
1.Strong standard wood case, inner plastic films wrapped for Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer



Our Services:
We are here to help you.Services available:
Replacement manuals
Consumables and replacement parts
On-site maintenance and repair
Warranty support
Over-the-phone service support and advice
If you have an OTS chamber  , we will do our best to help you in whatever way we can.
Manuals:PDF files of manuals for current models are available free.Please contact us to request a copy.Older and printed copies at additional charge.
Service repair:We prefer you contact us direct at the factory with any problems you may be experiencing.We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.Rarely can a local contractor get all that done for you as quickly as we can.We also guarantee the work .


Our Company
OTS (Overall Testing System)
Was established in 1978, with 35 years' history
With 30,000 square meter salable production base and 120 employees
Is one of the leading companies solely dedicated to manufacture of
Environmental Simulation Test Chambers ,Physical Testing Equipment .
(such as  constant temperature and humidity chambers, environmental chambers, climatic test chambers, rain and dust test chambers,thermal shock test chambers,fast change rate chambers, salt spray chamber,UV test chambers,walk in test chambers and other special customized test chambers  ;Tensile testing machine, vibration test machine ,carton compression testing machines, bursting strength testing machine etc.) ..
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement.With offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms:ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...


FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
