• Model NO.：CTA-1000C-093
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Power Supply：220V 50Hz
• Voltage Output：180V
• Size：365 mm*290mm*153mm
• Warranty：1 Year
• Transport Package：Aluminum Alloy Packing Box Inside Andwooden Box O
• Trademark：KvTester
• Origin：China
• HS Code：9031809090
• Production Capacity：500,Month

TypeCTA-1000CUsageCT,PTOutput0~180Vrms,12Arms,36A(peak value)Voltage measurement accuracy±0.1%CT RatioRange1~40000accuracy±0.05%PT RatioRange1~40000accuracy±0.05%PhaseRange±2minaccuracy0.5minDC resistanceRange0~300Ωaccuracy0.2%±2mΩBurdenRange0~1000VAaccuracy0.2%±0.02VAPower supplyAC220V±10%,50HzEnvironmental Conditions

Operating temperature: -10ºC~50ºC
Humidity:≤90%

Weight and DimensionsDimensions:365mm×300mm×165mm
Weight:9.5kg

Standard Accesories:

No.

Name

Qty

1

Host

1

2

Up-flow reactor(optional)

1

3

Power line

1

4

Red test line

1

5

Yellow test line

1

6

Green test line

1

7

High current test line(optional)

2

8

Control line(optional)

1

9

Ground wire

1

10

Alligator clip

4

11

Alligator clip

2

12

U type insert

4

13

Thermal printing paper

4

14

U disk

1

15

Protective tube

5

16

Special screwdriver for protective tube

1

17

Quality testing report

1

18

Instruction manual

1

19

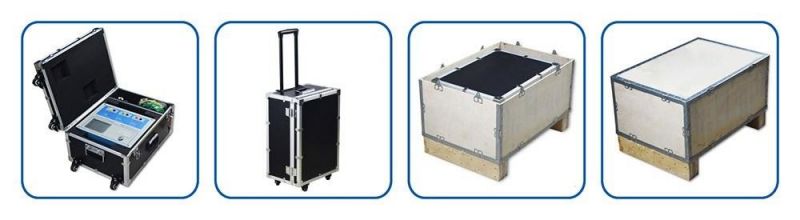

Aluminum alloy packing box

1
