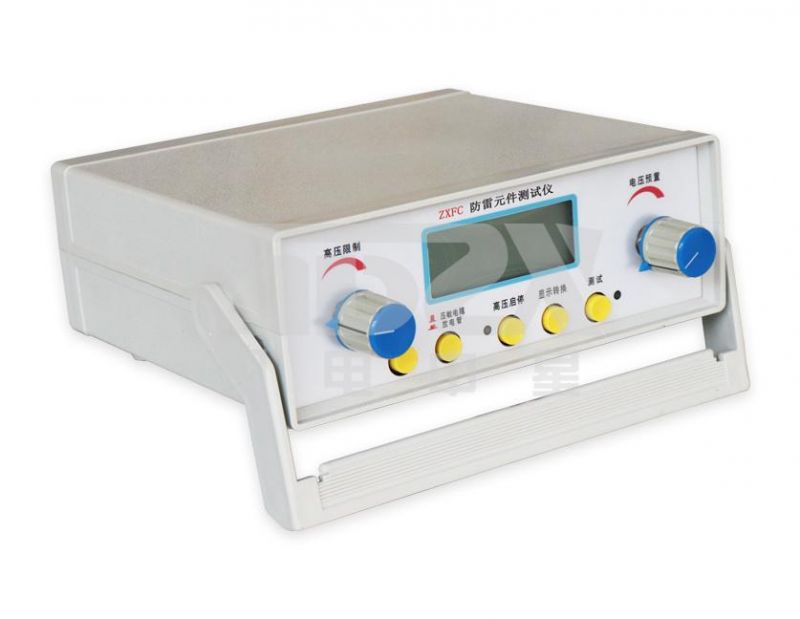

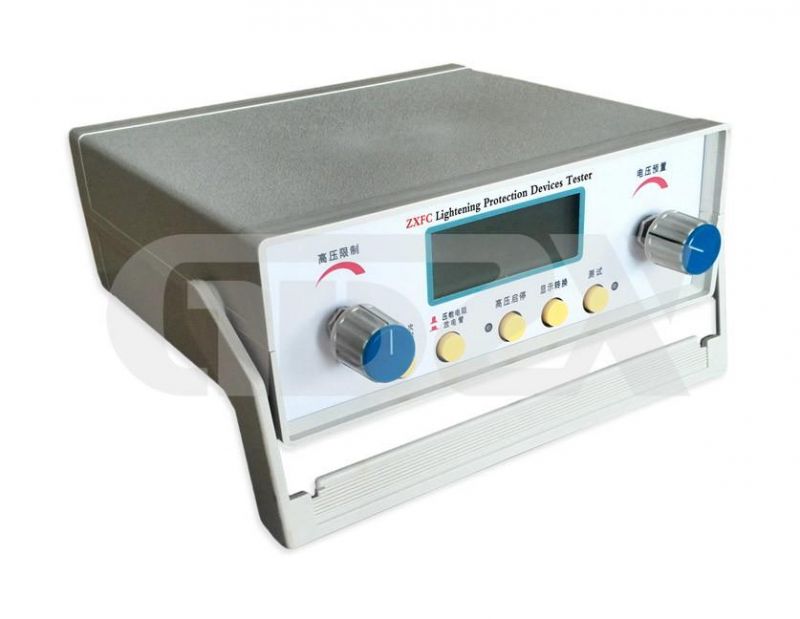

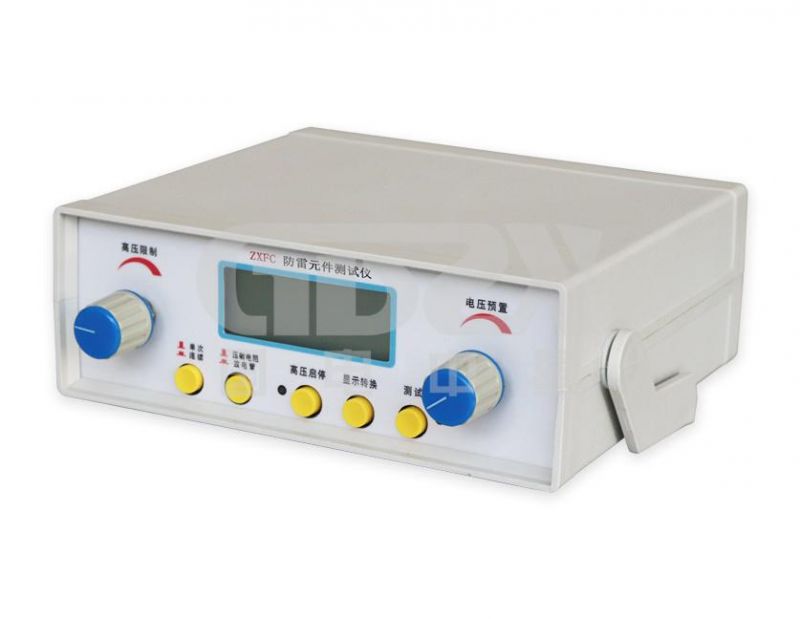

Zinc Oxide Arrester Lightening Protection Devices Tester

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Insulation resistance：6MOhm(500V)
  • Withstand voltage：AC 1.5kV 50HZ 1min
  • Working temperature and humidity：0 to +40Centigrade, Less than or equal to 85%RH
  • Storage temperature and humidity：-10C to +50C, Less than or equal to 90%RH

Base Info

  • Model NO.：ZXFC
  • Power supply：AC 220V 50Hz DC12V 0.5A
  • Consumption：8W
  • Instrument size：208mm*190mm*78mm
  • Weight：1.5kg
  • Transport Package：Wooden Case or Carton
  • Specification：Universal Testing Machine
  • Trademark：GDZX
  • Origin：China
  • Production Capacity：1200sets,Year

Description

    ZXFC Lightening Protection Devices Tester is used to test the DC parameters of Oxide Zinc arrester (piezoresistor), ceramic 2/3-electrode surge arrester, vacuum lightning arrester and others over voltage protective components. It also can be considered as stable power source and constant current power supply.Zinc Oxide Arrester Lightening Protection Devices Tester



    Zinc Oxide Arrester Lightening Protection Devices Tester
    Technical parameters Zinc Oxide Arrester Lightening Protection Devices TesterZinc Oxide Arrester Lightening Protection Devices Tester

    Zinc Oxide Arrester Lightening Protection Devices Tester

    Test cases

    Zinc Oxide Arrester Lightening Protection Devices Tester    Zinc Oxide Arrester Lightening Protection Devices Tester

    Company introduction

    Zinc Oxide Arrester Lightening Protection Devices Tester

    Zinc Oxide Arrester Lightening Protection Devices Tester

    Zinc Oxide Arrester Lightening Protection Devices Tester





    Service and Warranty



    Service

    * Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
    * Ensure customer get the detailed information about the product in hand.
    * Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
    * Welcome customers visit.

    * The contract and the technical agreement to sign by both parties.
    * Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
    * Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
    * Move quick and efficient, professional on delivery, installation, debugging, training and others.     Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.Zinc Oxide Arrester Lightening Protection Devices Tester





    Features

                                  1. With HV short circuit protection, over current protection, high voltage preset, range adjustment functions, HV self discharge time less than 0.5 second.

                                  2. Self calibration function.

                                  3. LCD display, high precision, strong reliability.

                                  4. Preset the measurement range when testing, there will be sound alarm if exceed the measurement range.

                                  5. Choose continuous measurement can make continuous test for mass measured equipment.

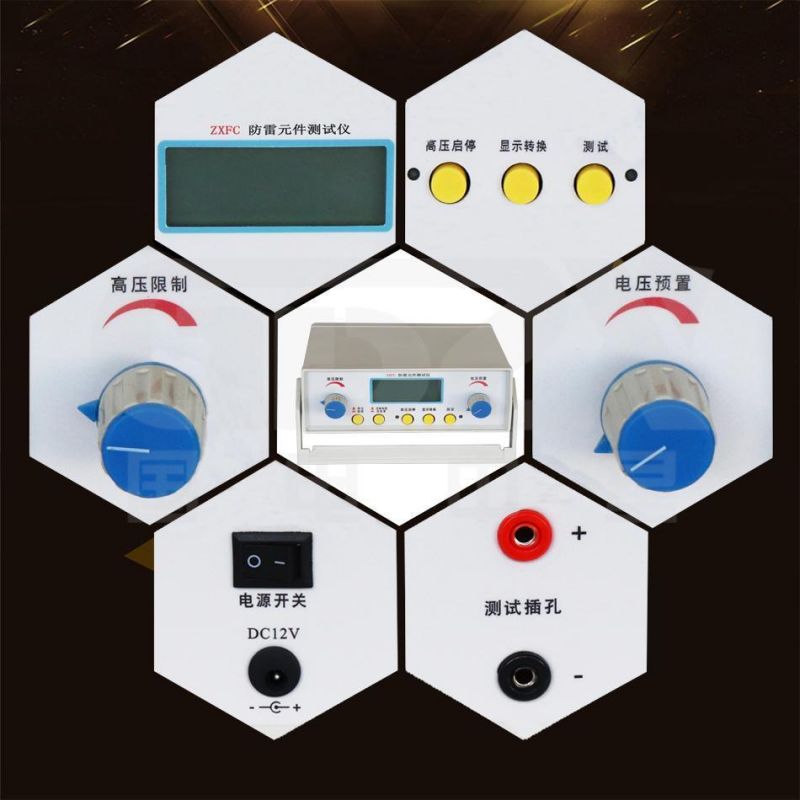

                                  6. Panel function is simple, easy to operate.

                                  7. Light in weight, easy to carry.
