• Model NO.：TP-323
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Method：English Display
• Screen：Large
• Transport Package：Wooden Case
• Trademark：TOPTESTER
• Origin：Chongqing, China
• HS Code：9027
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. TP-323 Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Display Method English Display Screen Large Transport Package Wooden Case Trademark TOPTESTER Origin Chongqing, China HS Code 9027 Production Capacity 1000 Sets/Month

Product Description

I.Overview

For your convenience and to ensure that you can fully grasp the functions and features of this instrument, please read the instruction manual carefully. Please keep it in a convenient location for future reference after reading.

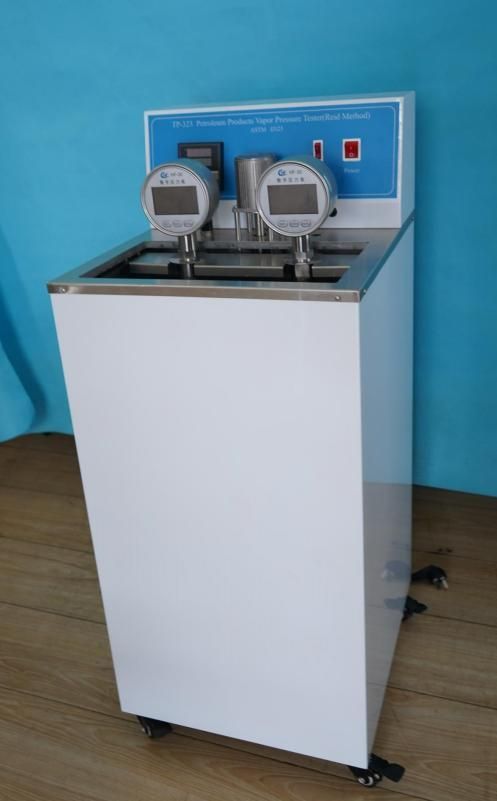

This instrument is designed and manufactured by the national standard GB/T 8017 "Vapor Pressure Measurement Method for Petroleum Products (Reid Method)" and the American Society for Testing and Materials Standard ASTM D323-82 "Vapor Pressure Measurement Method for Petroleum Products (Reid Method)" to measure vapor pressure of gasoline, volatile crude oil and volatile petroleum products.

The Reid vapor bombs equipped on the instrument are made of stainless steel and have good sealing performance. The diameter of the pressure gauge is 150MM, and the range is 0~100Ka and 0~200Ka. The water bath tub is made of stainless steel and has excellent corrosion resistance. Electric heater is used for heating, with digital display and automatic temperature control. Its basic structure and technical conditions in line with the requirements of GB / T 8017 and ASTM d323 standards, and it is easy to use, reliable and highly precise
.

II.Technical Parameters

1. Input power: AC220V±10% 50Hz
2. Temperature control range: 37.8±0.1°C
3, Size: 520 × 400 × 690 (floor movable)

Table of functional parameters:

Prompt	Name	Set scope	Description	Initial value
RE	Proportional control reset	-99(99.9)~100(100.0)ºC	The proportional control is reset, and when I=0, it can adjust the static difference of the proportional control instrument.	0
rt	Process value deviation	-99(99.9) ~100(100.0)ºC	Used to correct measurement errors caused by sensors or thermocouple wires	0
Df	Insensitive area	0.4~100.0ºC	Located in the insensitive area of the control, when P, D=0, it adjusts the dead zone of the position control instrument	0.4
AL	Alarm point setting	-100.0~200.0ºC	Alarm point setting, when AL>0, it is the upper limit alarm, and when AL<0, it is the lower limit alarm.	50
T	Control cycle (heating side)	1~100 second	Relay output ≮20S, SSR and SCR switch ≮3S,	20 2
P	Proportional band(heating side)	0~300ºC	Proportional action adjustment, the larger P is, the smaller the proportional effect is, the system gain is at least low, only on the heating side, and P=0 is the position control.	30
I	Integration time (re-adjust time)	0~3600 second	Integral action time constant, the larger I is, the weaker the integral action, the PD control when I=0	240
D	Differential time (pre-adjustment time)	0~3600 second	The larger the differential action time constant D is, the stronger the differential action is, and the overshoot can be overcome, and the PI control at D=0	60
Lc	Password	0~2	0: All parameters can be changed 1: Only the set value can be changed 2: All parameters cannot be changed	0

Test equipment of our company
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Automatic Freezing Point & Pour Point Tester model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF

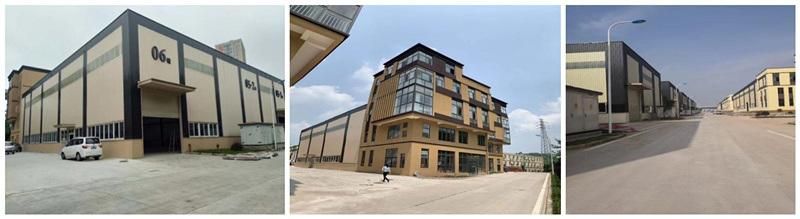

Our Company
