• Model NO.：AC440-500kW
• Loading Method：Automatic
• Display：Digital
• Control：Automatic
• Weight：500-1000Kg
• Power Source：AC440
• Voltage：AC440V 50Hz
• Power：500kw
• Working Mode：Continuously
• Cooling：Forced Air Cooling
• Accuracy：3%
• Certification：ISO CE
• Transport Package：Plywood Case
• Specification：3 cmb
• Trademark：TriumphLoad
• Origin：China
• HS Code：9030339000
• Production Capacity：2000 Sets, Per Year

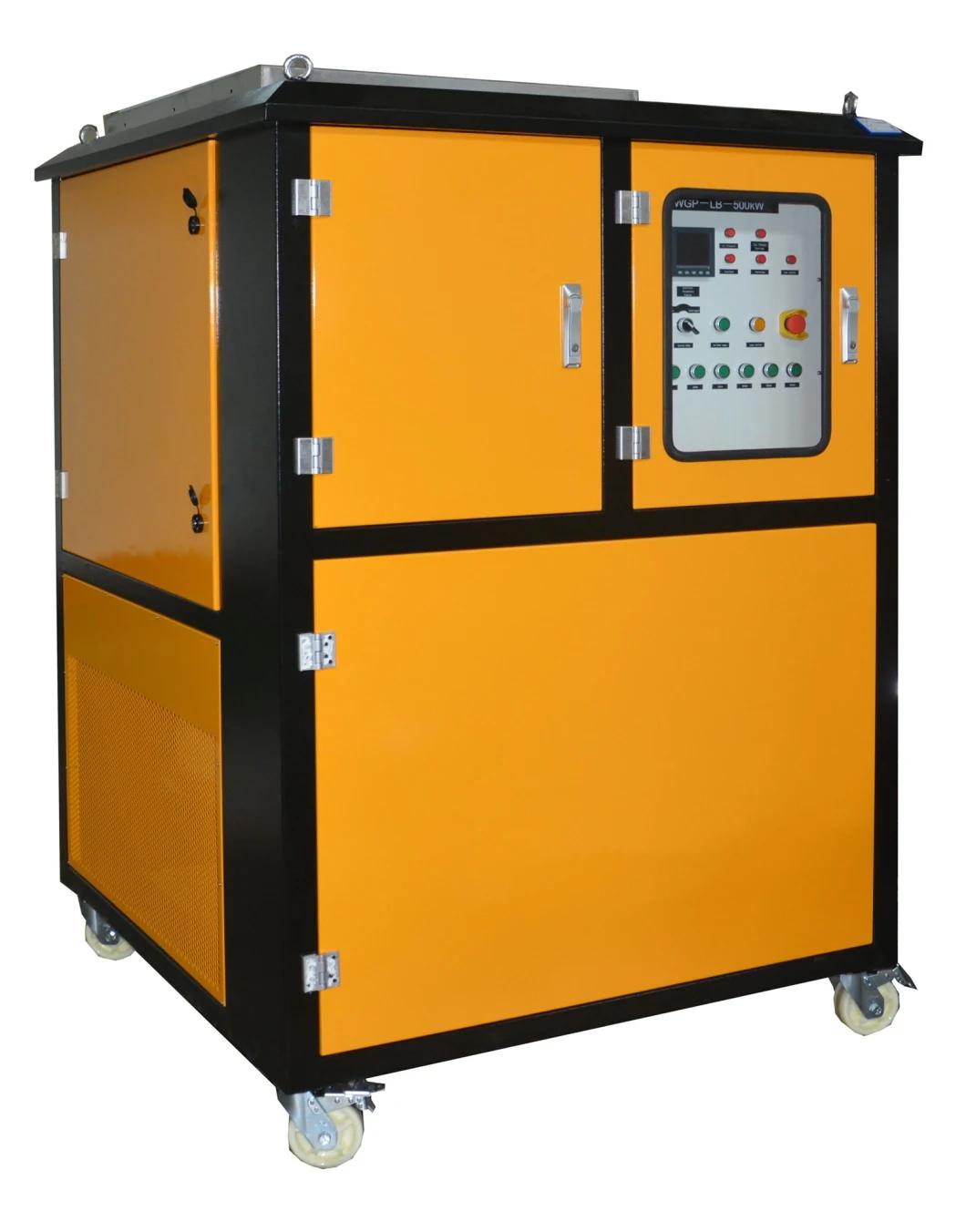

AC Automatic Load Bank

Rating Voltage/Frequency

440VAC/50Hz, 3 phase 4 wire,  phase voltage 250V

Rated Power

Resistive load: 500kW

Installed Capacity

Resistive load: 500kW

Load Step

1,2,2,5,10,10,20,50,100,100,200,kW, min step load: 1kW

PF(Power Factor)

1

Load Tolerance  (each step)

±5%

Load Tolerance(overall)

±3%

Display Precision

0.5 class

Control Power

380VAC/50Hz 3 phase 4 wire (line voltage 380V, phase voltage 220V )

Wire Connection

Load power supply input--Copper bar (star coupling)

Control power supply input--Connector-bar

Insulation

F

Way of Working

Continuous Working

Casing Dimensions and Cooling

about 1600*2600*2000mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling

Weight

About 1700kgs/set

Transportation

Hoisting, there are lifting lug in top of casing and wheel casters in bottom

Casing Color

Grey(RAL7035)or as you required

Operating Environment Parameter

Workplace

Outdoor

Ambient Temperature

-10ºC~+50ºC

Relative Humidity

≤95%

Altitude

≤2500 meter

Atmospheric Pressure

86~106kPa

Brands of Main Components

Contactor

CHINT

Fuse

DELIXI

MCU

INFINEON

Data processing software

Kaixiang(self-developed)

Alloy Resistance

Kaixiang(self-developed)

The Main Application Of The Load Bank

Factory testing of engines generator sets

To reduce "wet stacking" problems

Periodic exercising of stand-by engine generator sets

Load testing of AC power source

On-site acceptance testing

UPS system testing and maintenance

New projects inspection and battery system maintenance

Load optimization in prime power applications
