• Model NO.：ZXHQ-Y
• Output current：0.001 ~ 5A (RMS)
• Output power：300VA
• The highest equivalent inflection point：45KV
• Turn ratio measurement: range：1 ~ 30000, 1 ~ 5000 error <0.2%, 5000 ~ 30000 erro
• Size：485mm* 356mm *183mm
• Weight：15kg
• Transport Package：Wooden Case or Carton
• Specification：Universal Testing Machine
• Trademark：GDZX
• Origin：China
• Production Capacity：1200sets,Year

Basic Info.

Model NO. ZXHQ-Y Output current 0.001 ~ 5A (RMS) Output power 300VA The highest equivalent inflection point 45KV Turn ratio measurement: range 1 ~ 30000, 1 ~ 5000 error <0.2%, 5000 ~ 30000 erro Size 485mm* 356mm *183mm Weight 15kg Transport Package Wooden Case or Carton Specification Universal Testing Machine Trademark GDZX Origin China Production Capacity 1200sets/Year

Product Description

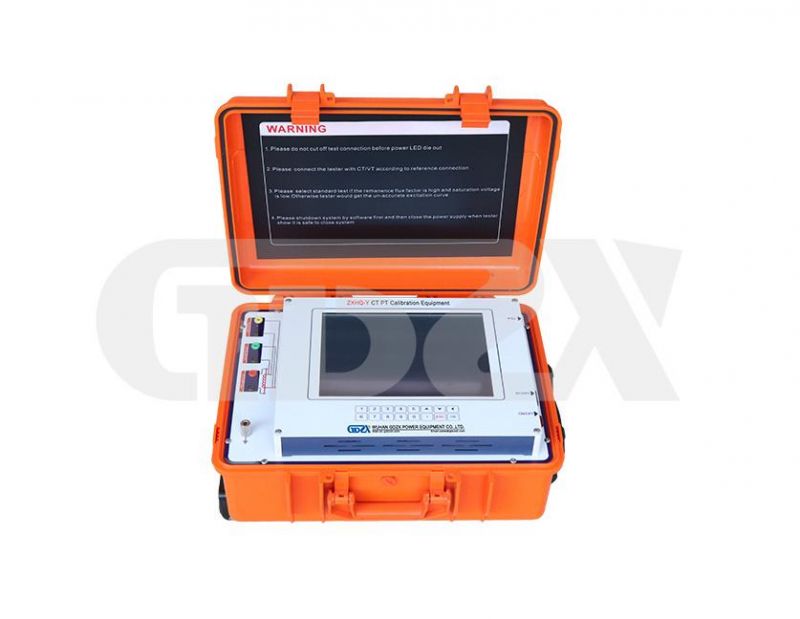

45KV Portable Multifunctional CT PT Analyzer Transformer Field Calibrator

Introduction
   ZXHQ-Y Transformer Field Calibrator is a multifunctional current and voltage transformer characteristic tester designed in accordance with IEC60044-1 / GB1208, IEC60044-2GB1207, IEC60044-6 / GB16847 and C57.13, the instrument can obtain the excitation characteristics of the current and voltage transformers, excitation parameters. The maximum inflection point voltage of the current transformer under test can reach 45kV with various test parameters such as ratio, hit ratio error, polarity, coil resistance and hysteresis loop.


Features

The CT PT analyzer is used for the following tests of current transformers:
1. Excitation characteristic test
2. Turn ratio detection
3. Verification of ratio difference and angle difference
4. Polarity check
5. Secondary winding resistance measurement
6. Secondary load measurement
7, 5% and 10% error curve measurement
8. CT transient characteristics test and analysis
9. CT nameplate automatic inference
10. Measurement of CT parameters such as inflection point voltage / current, accurate limit factor, instrument security factor, secondary time constant, residual magnetic coefficient, accuracy level, saturation and undersaturation and inductance, inflection point electromotive force, limit electromotive force and area factor
11. Hysteresis loop measurement of current transformer core
The CT PT analyzer can also be used for the following tests of voltage transformers:
1. PT turns ratio detection
2. PT polarity check
3. PT secondary winding resistance measurement
4. PT secondary load measurement
The application of the device mainly includes:
1. Parameter verification of CT nameplate
2. Parameter verification when CT is connected to current load
3. Analyze the impact of CT's transient characteristics on the relay protection device.
4. PT nameplate parameter verification
5. PT secondary load verification

Technical Indicators

Test standard basis	IEC60044-1, IEC60044-2, IEC60044-5, IEC60044-6, GB1207, GB1208, GB16847, GBT4703, C57.13
Input power voltage	AC220V ± 10%, 50Hz / 60Hz ± 10%
Output voltage	0.1 ~ 125V (AC)
Output current	0.001 ~ 5A (RMS)
The highest equivalent inflection point voltage	45KV
Current measurement	Range: 0 ~ 10A (automatic range 0.1 / 0.4 / 2 / 10A), error <± 0.1% + 0.01% FS
Voltage measurement	Range: 0 ~ 200 V (automatic range 1/10/70 / 200V), error <± 0.1% + 0.01% FS
Turn ratio measurement	Range: 1 ~ 30000, 1 ~ 2000 error <0.05%, 2000 ~ 5000 error <0.1%, 5000 ~ 30000 error <0.2%
Phase measurement	Accuracy: ± 2min, resolution: 0.01min
Measuring range of secondary winding resistance	range: 0 ~ 8KΩ (automatic range 2/20 / 80Ω / 800Ω / 8kΩ),Error <0.2% RDG + 0.02% FS, maximum resolution: 0.1mΩ
Temperature measurement	-50 -100 degrees, error <3 degrees
CT secondary load measurement	0 -160ohm (2/20 / 80ohm / 160ohm), Error 0.2% RDG + 0.02% FS Maximum resolution 0.001ohm
PT secondary load measurement	0 ~ 80kohm (800ohm / 8kohm / 80kohm), Error 0.2% RDG + 0.02% FS Maximum resolution 0.1ohm
Turn ratio measurement	range: 1 ~ 30000, 1 ~ 5000 error <0.2%, 5000 ~ 30000 error <0.5%
Number of data storage groups	more than 1000 groups
Working conditions	temperature: -10 ºC ~ 50 ºC, humidity: ≤90%
Size	485mm × 356mm × 183mm
Weight	15Kg

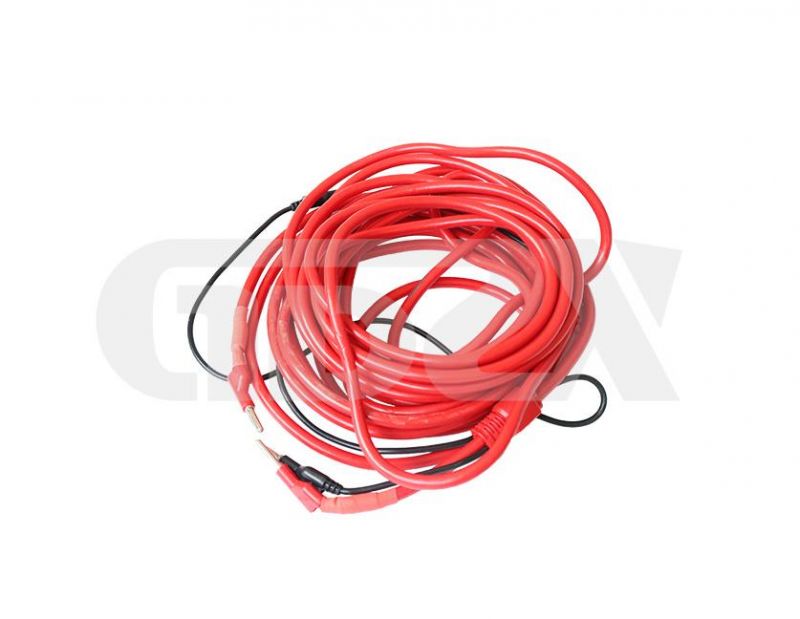

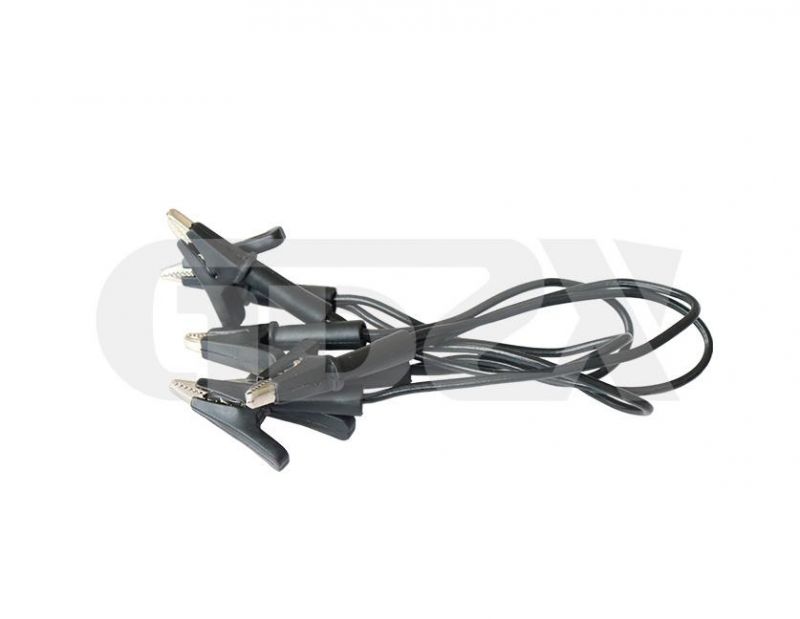

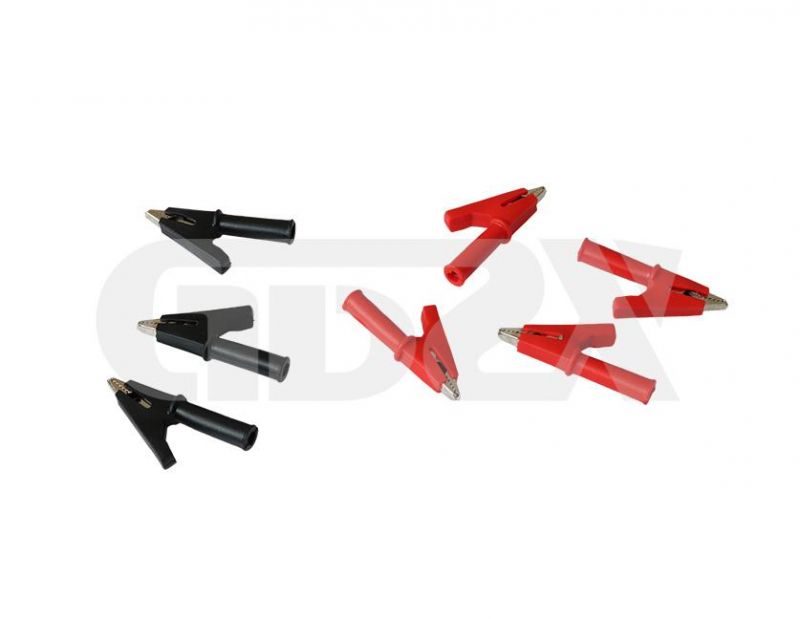

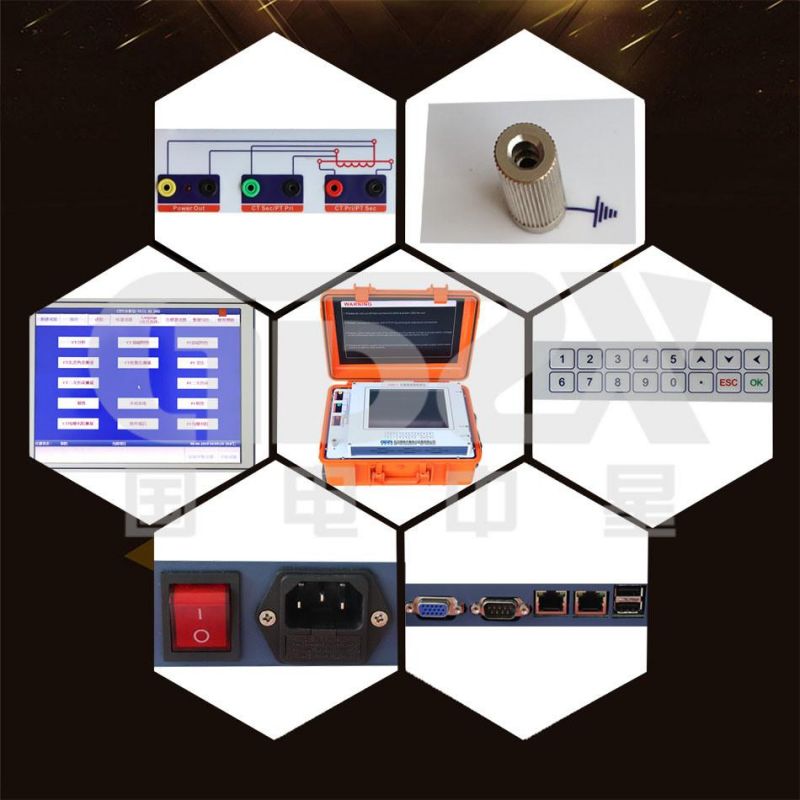

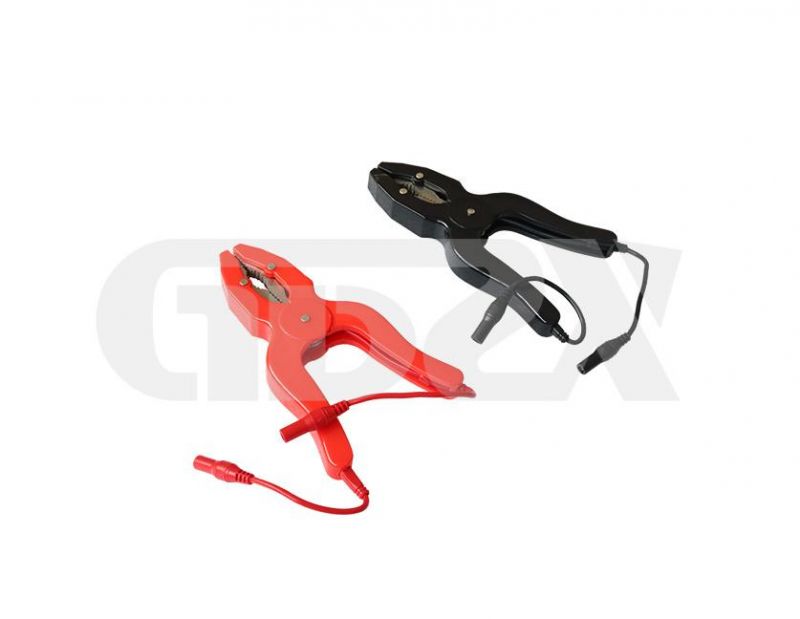

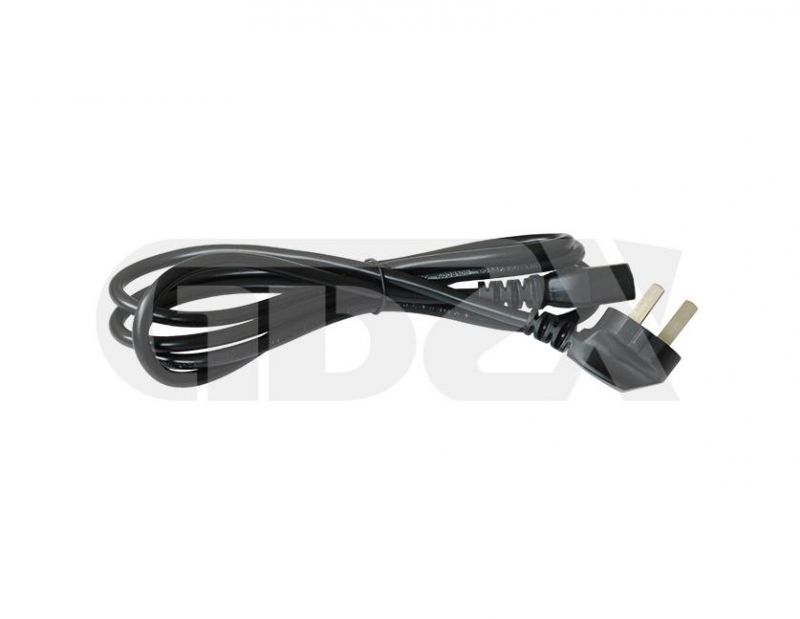

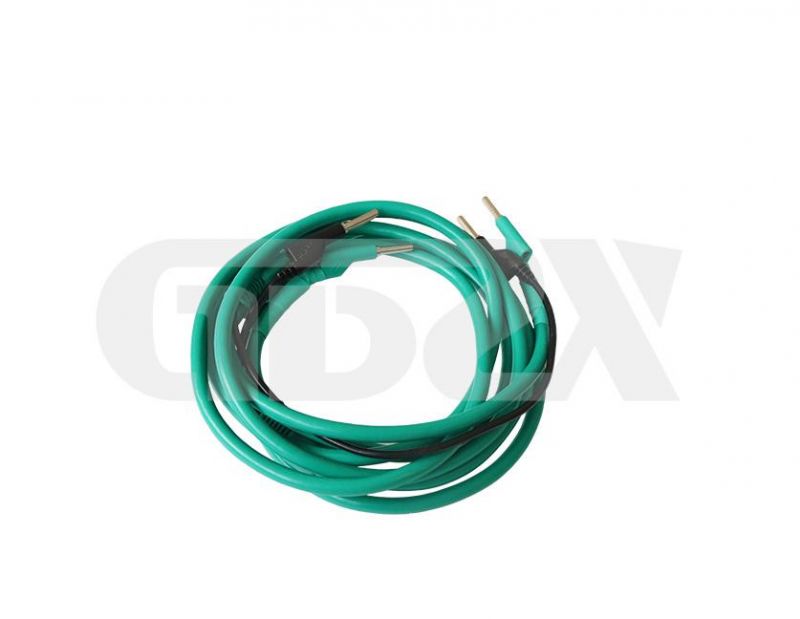

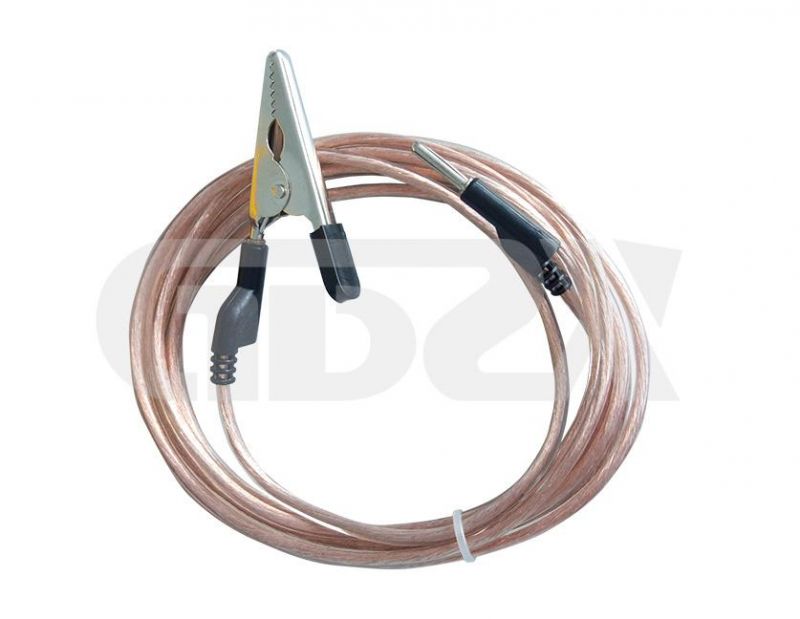

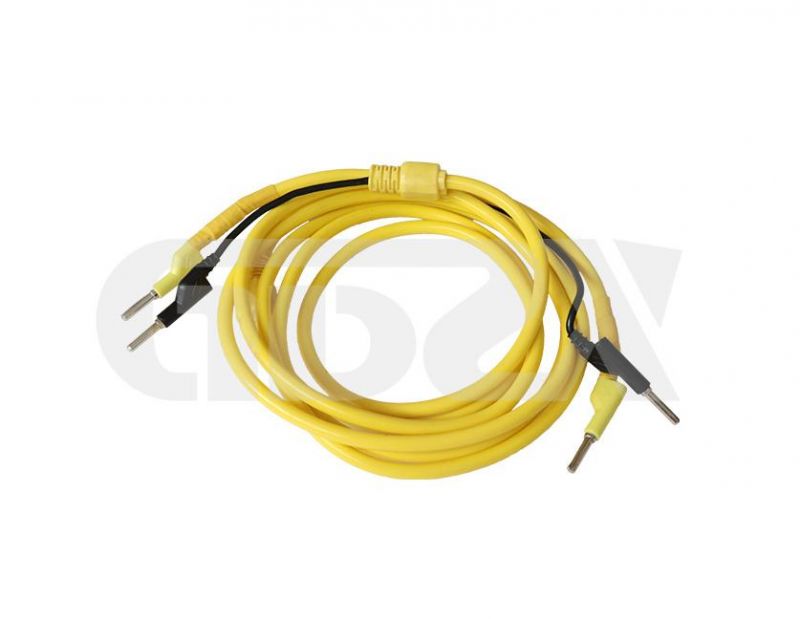

Product pictures

Company introduction

    Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
