• Model NO.：XLBL
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Color：Blue
• Resulrt Control：PLC
• Using Life：More Than 15 Years
• Package：as Customer′s Require
• Use：Lab Use
• Brand：Cgy
• Name：Lab Use Machine
• Kinds：Mooney Viscometer. Tension
• Factory：Qingdao Chaoguangyue Industry Company
• Transport Package：Wooden or as Required
• Specification：CE, SGS, ISO
• Trademark：chaoguangyue
• Origin：China Qingdao
• HS Code：84778000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. XLBL Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Needle Control Computer Control Weight 0-100Kg Power Source AC380V Oil Cylinder Position Under Color Blue Resulrt Control PLC Using Life More Than 15 Years Package as Customer′s Require Use Lab Use Brand Cgy Name Lab Use Machine Kinds Mooney Viscometer. Tension Factory Qingdao Chaoguangyue Industry Company Transport Package Wooden or as Required Specification CE, SGS, ISO Trademark chaoguangyue Origin China Qingdao HS Code 84778000 Production Capacity 30 Sets Per Month

Product Description

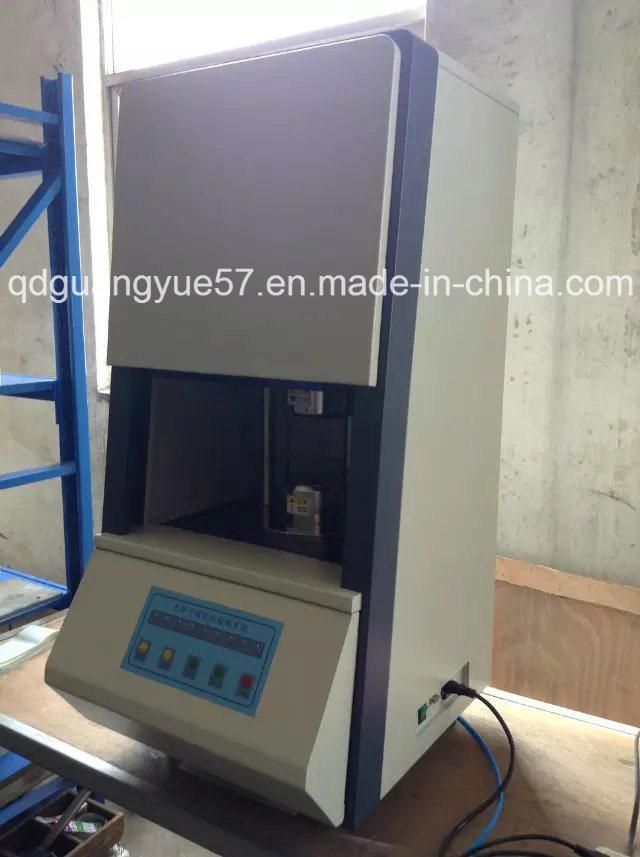

Lab Use Rubber Rheometer Machine
Specifications:

Rubber rheometer machine
1.The stanard:ASTMD5289-95,ISO6502:1991,GB/T16584-1996
2.Test temperature:0-200
rubber rheometer machine

I. Product Introduction:
    A. High - precision sensor : 0 ~ 20N.m . Resolution: 0.001N.m .
   B. Control systems: computer control and interface boards for data acquisition , preservation, processing , and printing test results and curve processing .
   C. Rotation system : stepper Electronics Speed Motor + amplitude adjustment . Swing angle: ± 0.5 º ± 1 º .
   D. Temperature control system : Intelligent digital temperature controller, real-time the Automatism adjustment of the PID control parameters .
The temperature control range of 0 - 200 ° C , the temperature control precision ≤ ± 0.3 ° C temperature resolution of 0.1 ° C .
E. Data transmission : RS232 transmission
F. Display : Vulcanize - 105 + WIN -XP test software on the computer screen display , excellent user software and advanced hardware makes the whole measurement has become very convenient, fast , accurate and enjoyable .
G. The cavity : Cr6wv material , in line with GB/T16584-1996 standard requirements .
F. Way of monitoring and control : monitoring humane way , the mouse to point , or front panel touch button two on trial .

II. Main Count Index:

Temperature range	0 °C -200 °C
Measuring accuracy	≤ ± 0.3 ° C
Temperature accuracy	≤ ± 0.3 ° C
Temperature Resolution	0.1 ° C
Torque range	0- 10N . In m-0- 20N.m
Torque resolution	0.001N.m
Cavity frequency	1.7Hz
Amplitude	± 0.5 º ± 1 º
Ambient temperature	0 -35 ° C
Curing time setting range	2- 300min
With gas	5MPa
Power Supply AC	220V
Power	800W
Machine size	660 × 580 × 1300mm
Weight	about 210Kg

About our company:

1. Special manufacturer that has professional producing team and technical support
2. Top level sale teams to communicate with clients by email, telephone, face to face.
3. Professional explanation to clients about machines(techonogy, apply, using guide and so on)
4. Best after sale---follow the whole producing situation, provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur and reply you within 12 hours.
5. Reasonable price and flexible delievery time
6. More than 30 years of experience of exporting ability
If you are interested in our machines,pls feel free to let me know,we will do our best to service for you.
Company"Quality of survival, reputation and development, technology and innovation, excellence;"As business philosophy.Products through the CE,ISO9001 Quality system certification. We will, as always, adhere to the "gifted victory, reputation first, customer first" principle and good after-sales service, for your dedicated a day.


Our certification:
