• Model NO.：NF501
• Dimension：1900mm (W) X2100mm X (H) X 460mm (D)
• Power Supply：220 V, 50Hz
• Color：Silver
• Gas：Propane
• Heat Radiation Flux：30kw,M2
• Power Consumption：500W
• Control：PC
• Software Language：English
• OEM Service：Available
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. NF501 Dimension 1900mm (W) X2100mm X (H) X 460mm (D) Power Supply 220 V, 50Hz Color Silver Gas Propane Heat Radiation Flux 30kw/M2 Power Consumption 500W Control PC Software Language English OEM Service Available Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Product introduction
The thermal radiation flame propagation tester is developed according to the French building materials and railway vehicle flame retardant test standard NF P92-501. The principle of the test is to perform 30KW/m2 heat radiation on the sample, which may cause the sample to evaporate and flammability. The gas, and the combustion of the volatile gas, while observing the spread state of the flame, collects relevant data for evaluating the flame retardant properties of the material.


Standard:
NF P 92-501: Building materials- Reaction to fire tests, radiation test used for rigid material or flexible materials thickness more than 5mm

Product parameters
1, Stainless steel test cabinet, the inner wall is flame resistant material with transparent viewing window.
2, Stainless steel tubular inlet device, equipped with filtration devices shield for indoor sources.
3, 45° of the test stand, equipped with stainless steel foot instructions to calculate the distance of flame spread.
4, Heat radiation device can provide 30KW / m2 heat flux.
5, The power controller controlling the radiation output, adjustable heat radiation.
6, The heat radiating panel display device operating power value, eliminating frequent calibration procedure.
7, The stainless steel burner can ignite the combustible gas automatically.
8, The imported needle valve can control the upper and lower burner flame height, with a flame height measuring.
9, Lasting small flame device is be ignated before the test to convenient upper and lower ignition burners.
10, One-quarter rotation stopper device to facilitate cutting the gas burner and ignite the flame.
11, The top and the air inlet temperature thermocouple monitoring, real-time status display temperature difference value.
12, The test software can automatically analysis index of flame and burning heat index.
13, Test reports and data can be exported and printed, system has friendly user interface.
14, The test data includes: raw flame index:i-flame average height index: S- longest flame index: h-combustion heat index: C.

Installation requirements of Thermal radiation flame propagation tester

1	Power requirements	220 V, 50Hz,550W
2	Ambient temperature	10 ° C to 35 ° C
3	Combustion gas	propane
4	Dimension	1900mm (W) x2100mm x (H) x 460mm (D)
5	Weight	208KG

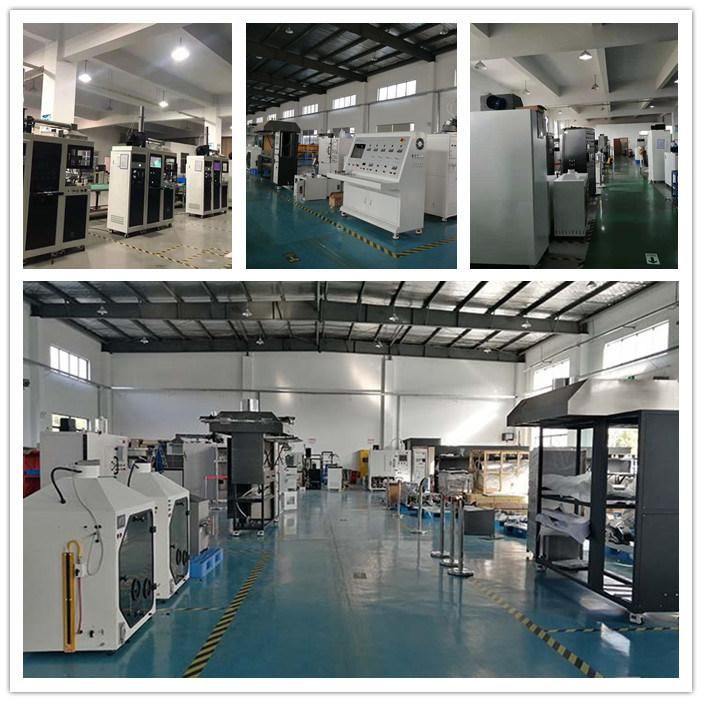

Factory overview
Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 2 or 3 months.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every perso
