• Model NO.：ZXJS-V
• Weight：3Kg
• Transport Package：Carton,Wooden Case
• Specification：With the change of technical scheme
• Trademark：GDZX
• Origin：Hubei
• Production Capacity：500 Pieces,Month

ZXJS -V Arrester Discharge Counter Tester is used to record exchange non-clearane metal oxide Arrester lightning strike action number of a device. The reliability of counter operation is very important for power system. It is an important parameter to record the statistics of lightning strike times of lightning arrester in normal operation. It can provide an important basis for power system personnel to inspect the lightning arrester.

1. This machine adopts 3.5-inch LCD.
2. The instrument has its own lithium rechargeable battery, which is easy to carry and suitable for outdoor operation.
3. Counter function test and ammeter calibration can be switched automatically without changing the wiring.
4. The ammeter is stepless and can output any current value up to 10mA.
5. The machine is equipped with 0.5% high-precision ammeter.
6. Small volume, light weight, high precision, sensitive operation, simple and convenient use.


Technical Indicators

Output surge current waveform :8/20us
Output voltage: six gears adjustable 1:2000V;2:1800V ;3:1600V;4:1400V;5:1200V ;6:1000V
Output current :0-30mA
Interval time: adjustable from 2-10s
Power supply :AC200V±10% 50Hz±2%
Impact current :≥100A (8/20us)
Size: 380 * 230 * 150 mm
Weight: 3 kg

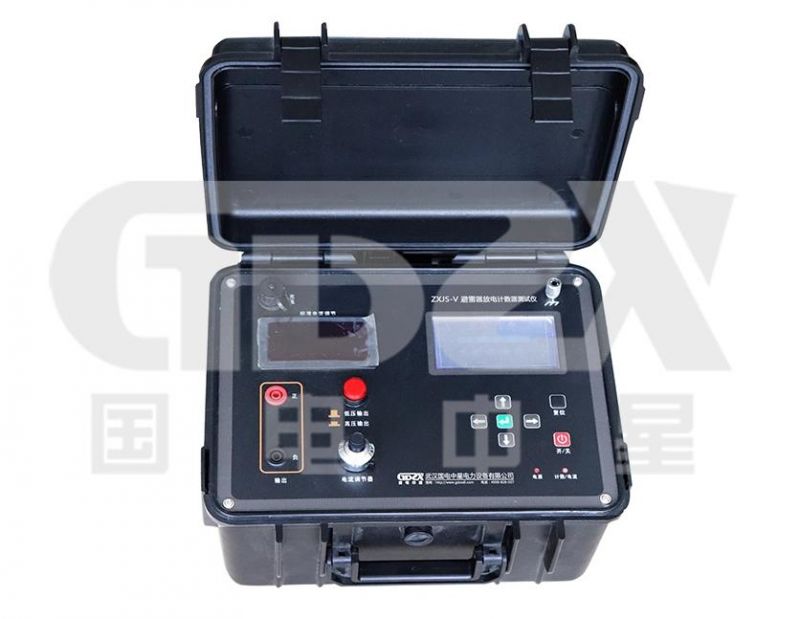

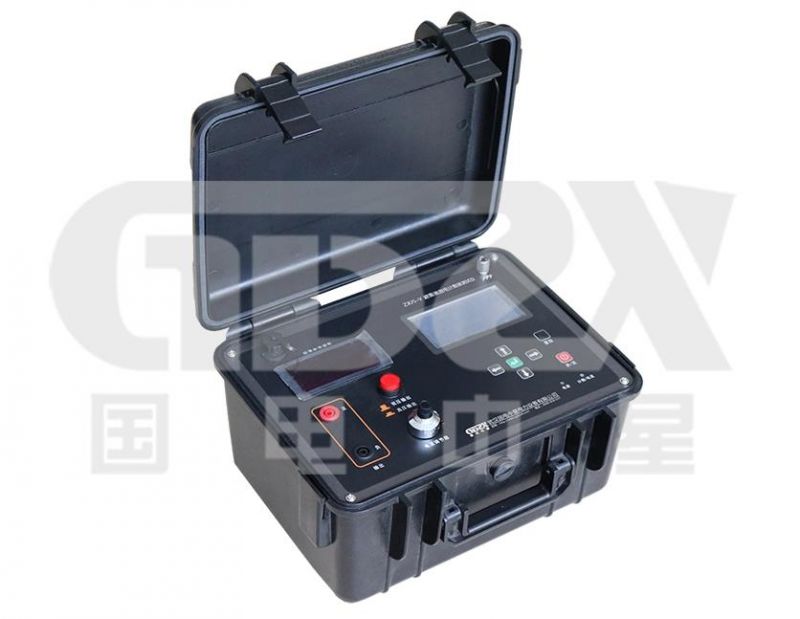

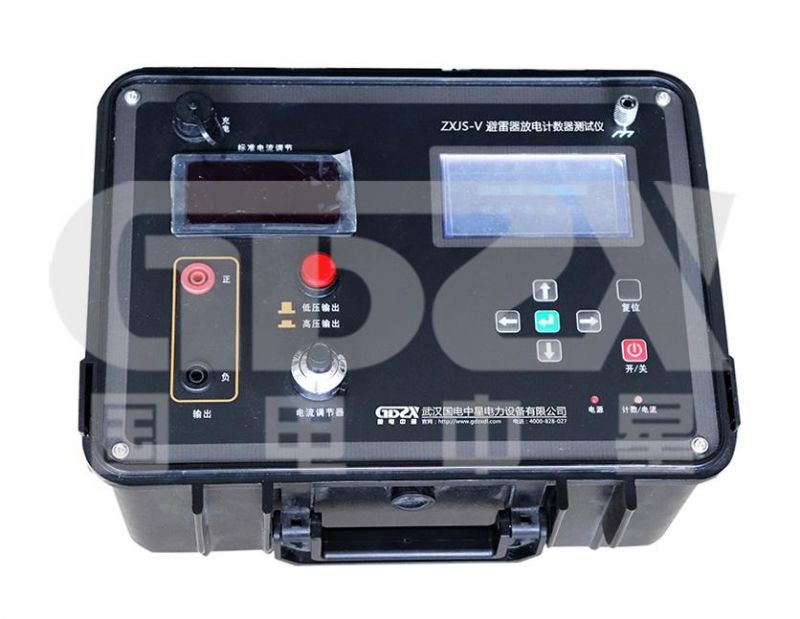

Device display
