20A High Precise Three Phase Programmable Testing Power Source

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Voltage：0.50%
  • Current：0.50%
  • Frequency：0.02Hz
  • Power factor：0.50%

Base Info

  • Model NO.：ZX5050
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

20A High Precise Three Phase Programmable Testing Power Source

   ZX5050 High Precise Three Phase Programmable Testing Source is an instrument using embedded system, large TFT LCD and touch screen, CPLD chip and high precision components, portable and widely used in electric energy metering industry, electrical laboratory and other relevant departments






Technical Indicators

1. Output:

1) Voltage:10~450V(built-in gears: 57.7,100,220V,380V, Maximum output power: 20VA
2) Current: 0.001~60A( built-in gears: 0.2,1,5,20A,50A), max output power 40VA for 50A, 20VA for others

3) Frequency output: 45-65Hz
4) Phase output: 0~359.99°

5) Stability: voltage current 0.02%(2Min)
6) distortion: voltage current ≤0.5%(Non capacitive load)

 Item Output and display accuracy Resolution
 Voltage0.50% 4 significant digits
 Current0.50% 4 significant digits
 Frequency 0.02Hz 0.001Hz
 Phase 0.5° 0.01°
 Power factor0.50%0.001
 Active power0.50% 4 significant digits
 Reactive power1% 4 significant digits
 Apparent power0.50% 4 significant digits

> Common output regulation test point:

1) Voltage test point: 90%,100%,110%,120%

2) Current test point: 1%,5%,10%,20%,50%,100%,120%

3) Phase: 0.5L,0.86L,1.0,0.86C,0.5C

4) Three phase voltage, current amplitude adjustable, fineness: 10%,1%,0.1%,0.01%, range to 125%

5) Phase and power factor of three phase voltage, current also adjustable, fineness: 10°1°0.1° 0.01°

6) Phase position of UB,UC to UA: adjustable

7) Frequency is adjustable together with three phase voltage and current: 5Hz,1Hz,0.1Hz,0.01Hz

> Power supply: Single phase AC 182-262V, 50/60Hz

> Size: 500*600*178mm; Weight 35 KG
20A High Precise Three Phase Programmable Testing Power Source

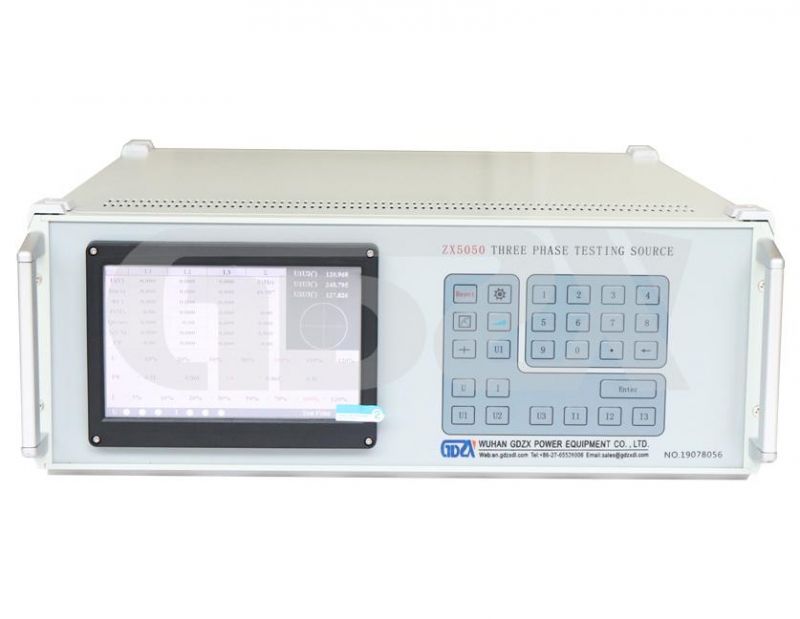

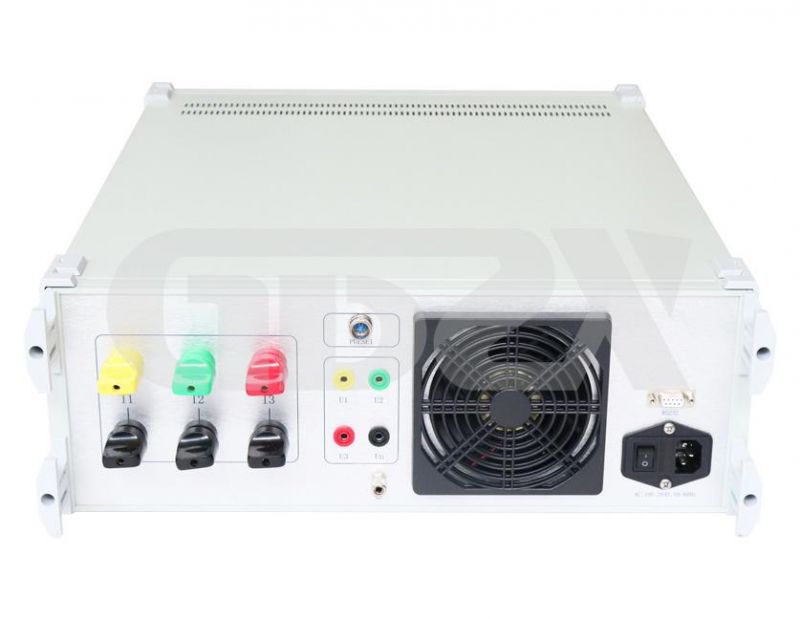

Product pictures
20A High Precise Three Phase Programmable Testing Power Source20A High Precise Three Phase Programmable Testing Power Source20A High Precise Three Phase Programmable Testing Power Source

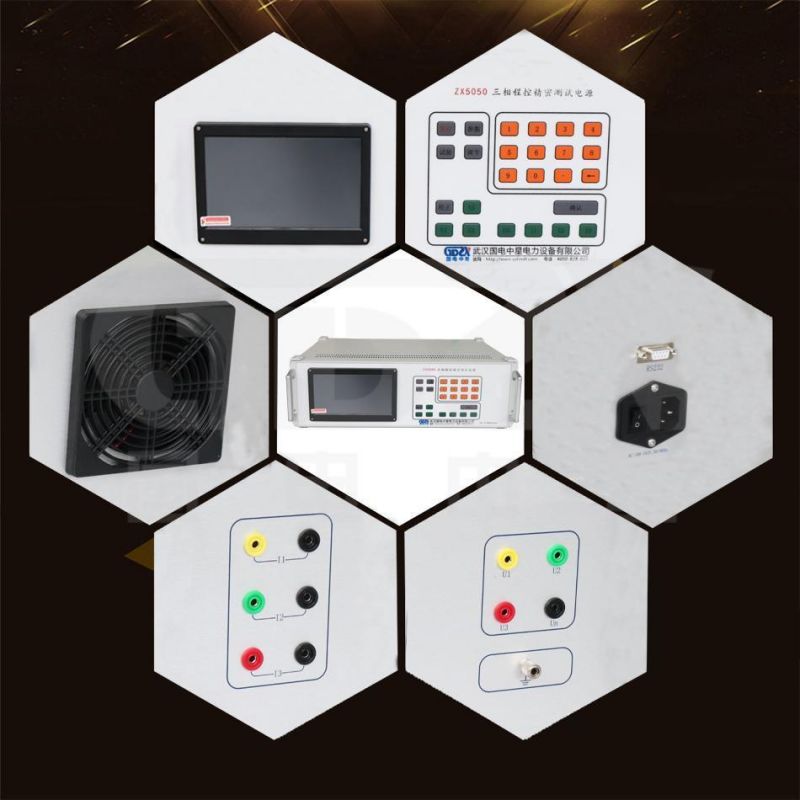

Device display
20A High Precise Three Phase Programmable Testing Power Source20A High Precise Three Phase Programmable Testing Power Source
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
20A High Precise Three Phase Programmable Testing Power Source20A High Precise Three Phase Programmable Testing Power Source20A High Precise Three Phase Programmable Testing Power Source20A High Precise Three Phase Programmable Testing Power Source

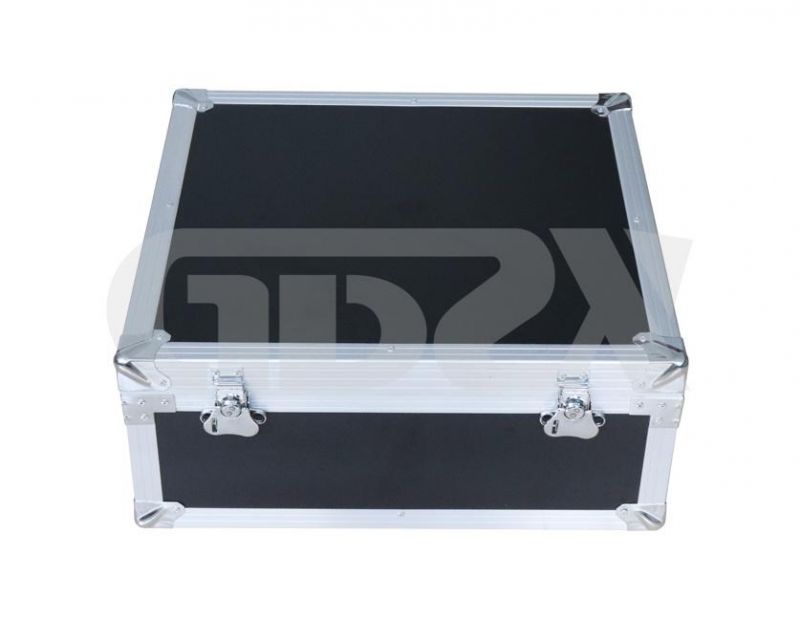

Shipping and packaging
20A High Precise Three Phase Programmable Testing Power Source
Features

1) Design with touch panel and mask button, massive information to see and simple to use

2) Built-in energy meter which can indicate parameters like voltage, current, frequency, phase, active power, reactive power, apparent power, power factor

3) Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

4) Three phase rated current rated voltage can be preset by users

5) Multiple choose of voltage, current, phase testing point

6) With RS232 communication interface
