• Model NO.：8360
• Weight：About 80kg
• Transport Package：Wooden Case
• Trademark：SAMYON
• Origin：Cn
• HS Code：903180
• Production Capacity：500sets,Month

Type

8360

Data Logger

PC-104 Mainboard ,4 core processor,4G internal

Data Storage

64GB SSD hardware

Display

10.4 Inch Industrial LCD 1024×768

Operation Mode

Touchable

System

WES7 Insert version

Scan speed

≥20 repeat time/s

Band width

1-500K

Ultrasonic wave precision

≤0.5%

Measurement precision (Level)

0.2%FS

Range

320~7200mm

Frequency

45kHz/63kHz/88kHz

Transmit Power

1000V

Max depth

150m

Max depth resolution

≤5mm,Depth error≤1%

sound speed calibration

Yes

Data record mode

Color image, data file

Output mode

Printer(Color), USB or WIFI

Position

GPS

Work Mode

-20~+70ºC

Power supply mode

1.Data logger power

2.220V and 380V

Data logger size

350mm×250×150mm

Data logger weight

4.5KG

Ultrasonic sensor size

145mm*145mm*350mm

Ultrasonic sensor weight

15kg

Maximum mud density

1.3g/cm³

Lifting speed

Lifting up, down adjustable,0-20m/min adjustable, Emergency lift up.

Self-stop function

Borehole surface and borehole bottom auto self-stopping function.

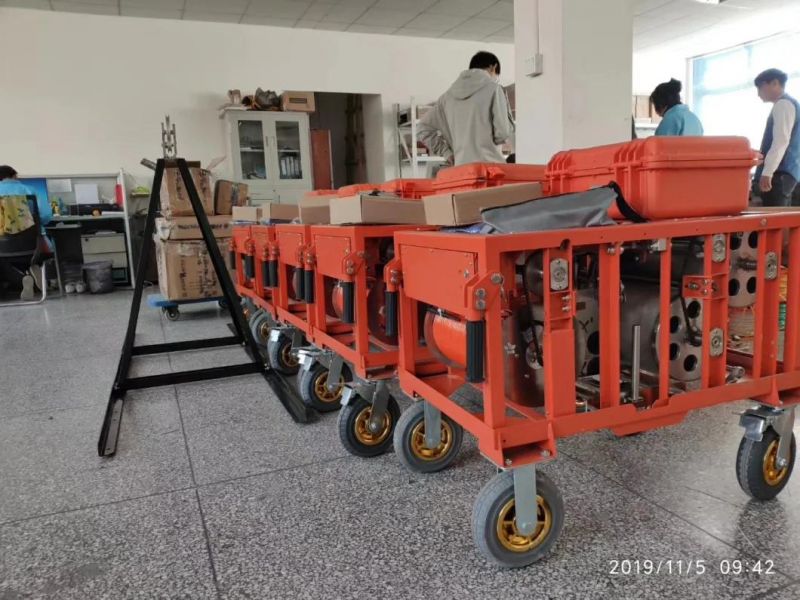

winch lifting system size

800mm×450mm×380mm

Winch lifting system weight

80kg
