• Model NO.：LS180
• Control：Manual Control
• Weight：590g
• Power Source：5V AC,DC Adapter
• Oil Cylinder Position：No
• Resolution：0.1%
• UV Peak Wavelength：365nm
• Vl Peak Wavelength：550nm
• IR Peak Wavelength：1400nm
• Power Supply：5V AC,DC Adapter
• Accuracy：Better Than +,-2%
• Packing Size：21*13*6cm,Box
• Color：Silver, Gray, Black Ect
• Usage：Solar Film Vlt, IR, UV Testing
• Name：Solar Film Transmission Meter
• Transport Package：One Piece One Small Box
• Specification：216mm*134mm*29mm(L*H*W)
• Trademark：ALILULA, New Vision
• Origin：Guangzhou, China
• HS Code：9030849000
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. LS180 Control Manual Control Weight 590g Power Source 5V AC/DC Adapter Oil Cylinder Position No Resolution 0.1% UV Peak Wavelength 365nm Vl Peak Wavelength 550nm IR Peak Wavelength 1400nm Power Supply 5V AC/DC Adapter Accuracy Better Than +/-2% Packing Size 21*13*6cm/Box Color Silver, Gray, Black Ect Usage Solar Film Vlt, IR, UV Testing Name Solar Film Transmission Meter Transport Package One Piece One Small Box Specification 216mm*134mm*29mm(L*H*W) Trademark ALILULA, New Vision Origin Guangzhou, China HS Code 9030849000 Production Capacity 500000PCS/Month

Product Description

LS180 Solar Film Transmission Meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, VL and IR transmission values. This meter is self-contained light sources and self-calibration. No manual adjustment is needed. The users only need power on the meter and put the testing sample in the opening. The resulting performance data appear on the display.



Product Specification:

Product Item	LS180 Solar Film Transmission Meter
Product Size	216mm*134mm*29mm(L*H*W)
Weight	590g
Thickness of testing sample	Wide 47mm * Height 91 mm
Resolution	0.1%
Accuracy	+/-2%(Colorless and transparent material)
UV peak wavelength	365nm
VL peak wavelength	550nm
IR peak wavelength	1400nm
Power supply	5V AC/DC Adapter

Operation:
1.Power on: When LS180 is off, press the "ON/Hold" key.

2.Power off: Press "ON/Hold" key and hold for longer than 3 seconds, LS180 will be powered off.

3.Auto off: No key is pressed in 3 minutes, and then LS180 will power off automatically.

4.Manual hold: If "ON/Hold" key is short pressed during measure status, transmission value will hold on the LCD, "Hold" symbol is displayed on the LCD.Press the "NO/Hold" key again will
release the "Hold" mode. When backing is off, press the "NO/Hold" key turn on the backlight.

5.Measurement: When the meter displays 100% for each value, insert the testing sample in the
" OPENING", VL, UV and IR transmission value will display simultaneously.

Feature:
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in
ONE device.

2. Small size, portable product for transmission value measurement.

3. Simple operation, putting the testing sample in the "OPENING", UV, Visible and Infrared transmission values of the sample will simultaneously display.

4. Using for window film, solar film and other transparence material testing. Test any sample thickness up to 8mm.

Note:
1. When battery symbol is empty and flash, pls replace the battery.
2. Keep the " OPENING" is empty before turn on LS180. Otherwise LS180 will display testing interface, turn off and empty the " OPENING" and turn on again.
3.+/-2% Accuracy is for Colorless and transparent material, for colorful or optical coating product
ect, it will be low accuracy.
4. When not use for a long time(e.g several months), please take the battery out.
5. Avoid contact with corrosive agents and prevent from high temperature and high humidity environment.

Service:
1. The meter has one-year warranty. If the meter works abnormally, please send the whole meter
to the company for maintenance.
2. Provide users with spare parts and lifelong maintenance service.
3. Provide the users with the meter inspection service for free.
4. Free technical support for long term.

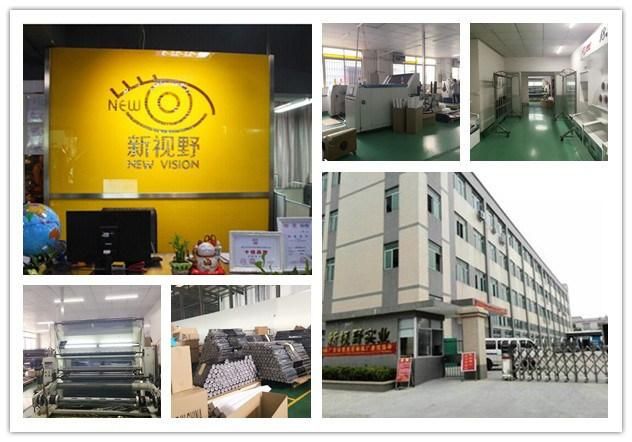

Welcome to visit our company

GuangDong New Vision Film Co.,Ltd. is a professional manufacturer of car tint film,building film,safety film ect. Our Company is in Guangzhou,factory in Jiangmen city.We offer high
quality products to our customers from all over the world in competitive price.

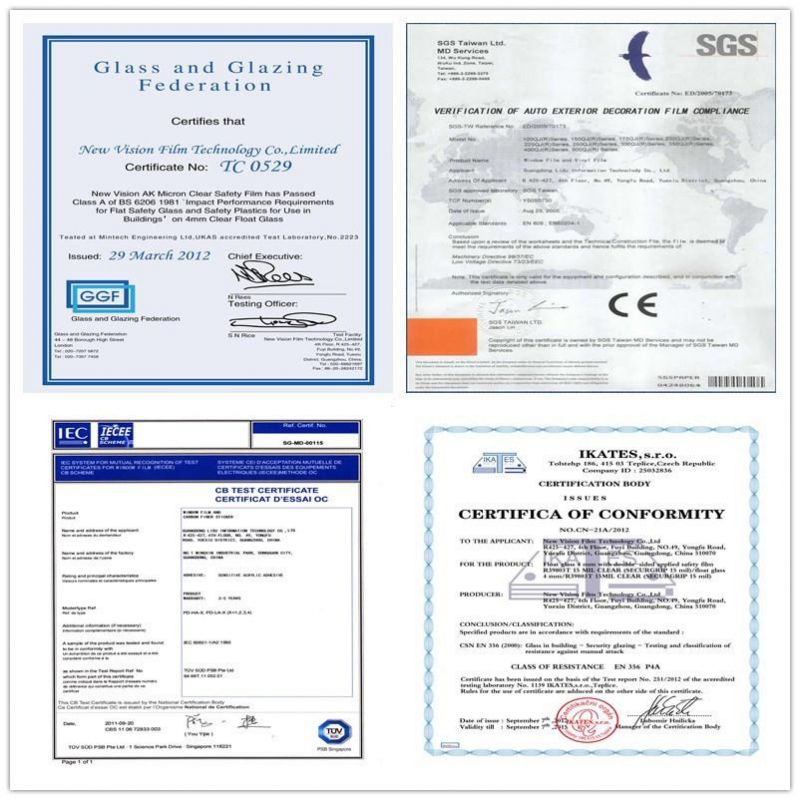

Certification
We have passed SGS, CE, ROHS, ISO etc test, the products are deserving of your try.
