Automatic Bitumen Mixtures Wheel Tracking Device Wheel Rutting Tester

Shanghai Changji Geological Instrument Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 year
  • Power supply：380V AC
  • hz：50Hz
  • Rolling speed of grinding wheel：(42 ± 1) times, min (one way)
  • Test car moving distance：(230 ± 10) mm

Base Info

  • Model NO.：SYD-0719C-2
  • Rubber hardness of grinding wheel：78± 2 (international standard hardness)
  • Displacement measuring range：(0 ~ 30) mm
  • Displacement measurement accuracy：less than 0.01mm
  • Test time：(60 ~ 240) min
  • Tryout temperature control accuracy：± 0.5 ºC
  • Works：Immersion and non-immersion test
  • Temperature measuring channel number：2 channels
  • Displacement sensor：3
  • Can do specimen number at the same time：3
  • The number of specimens of health：9
  • Transport Package：by Carton or by Wooden Case
  • Specification：2200mmx 960mm x1680mm
  • Trademark：SHANGYI
  • Origin：China
  • HS Code：9021809090
  • Production Capacity：1000 Sets,Month

Description

Overview

Product Description

Product Parameters

Main Technical Features

Packaging & Shipping



Automatic Bitumen Mixtures Wheel Tracking Device Wheel Rutting Tester

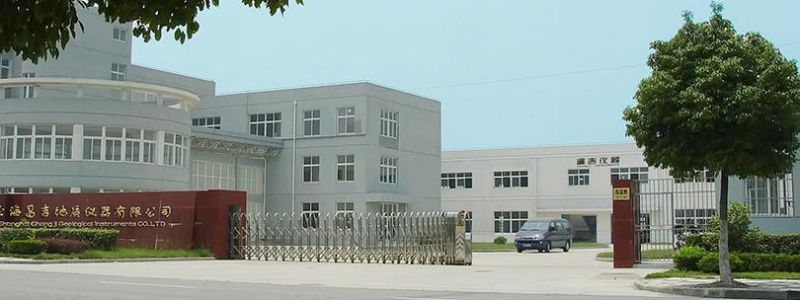

Company Profile
