Geographic Cable fault Tester And Power Cable Pathfinder
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Test distance：no more than 40km
- Location error：+,-0.2m
- Testing error：less than+,-;1%
- shortest testing distance：5-10m
Base Info
- Model NO.：ZX-A10
- Transport Package：Carton,Wooden Case
- Specification：With the change of technical scheme
- Trademark：GDZX
- Origin：Hubei
- Production Capacity：500 Pieces,Month
Description

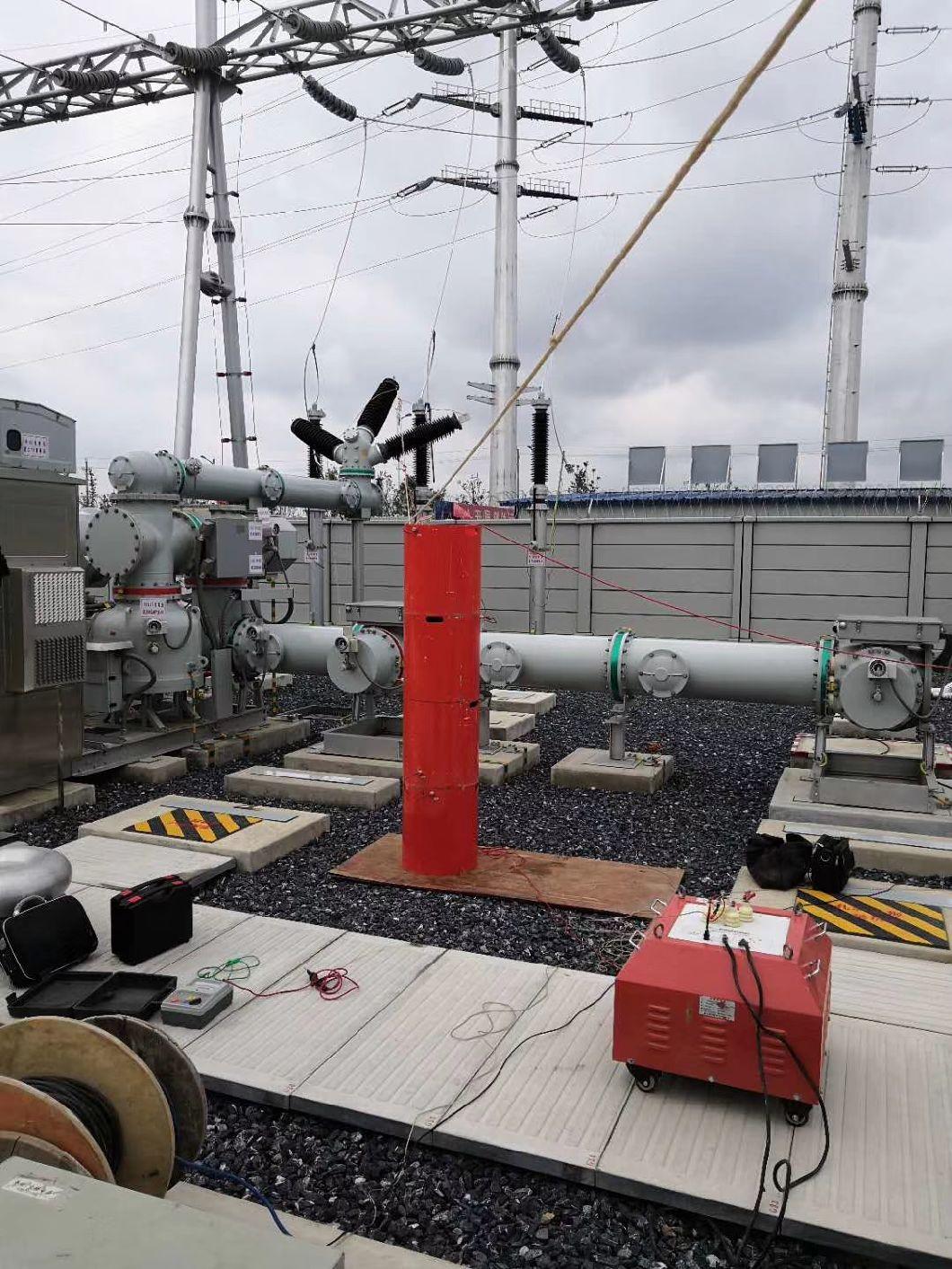

Device display
About GDZX
Shipping and packaging
Features
1. We are the first company in China who use industrial embedded computer platform system into cable fault locator. Lithium-power supply affords the convenience of field tests.
2. We are the first company in China who use 12.1 inch touch-screen and windows XP system.
3. The device adopt USB communication interface. The host can select 5 sampling frequency automatically between 6.25 MHz to 100MHz for the cable of different length.
4. The device can search the fault point and display the distance automatically, the movement of double cursor can be accurate to 0.15m. The waveform can be compressing or expanding freely. At the same time the system will display two waveforms randomly which is close to standard waveform for your reference.
5. The device saves total 40G waveforms and on-site wiring diagrams for your reference.
6. We developed smart modular sampler to replace the on-site wiring, the sampling is totally separated with high-voltage to ensure the safety of the operator.
7. We developed ZX-35kV high frequency high voltage power supply (8.9Kg) to replace the testing transformer and operation box (65Kg).
