• Model NO.：YT-MC05
• Weight：0-100Kg
• Power Source：AC220V
• Force Range：0.05 - 5n
• Resolution：0.01n
• Slider Size：63*63 mm
• Slider Weight：200g
• Slider Speed：100mm,Min
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-MC05 Weight 0-100Kg Power Source AC220V Force Range 0.05 - 5n Resolution 0.01n Slider Size 63*63 mm Slider Weight 200g Slider Speed 100mm/Min Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

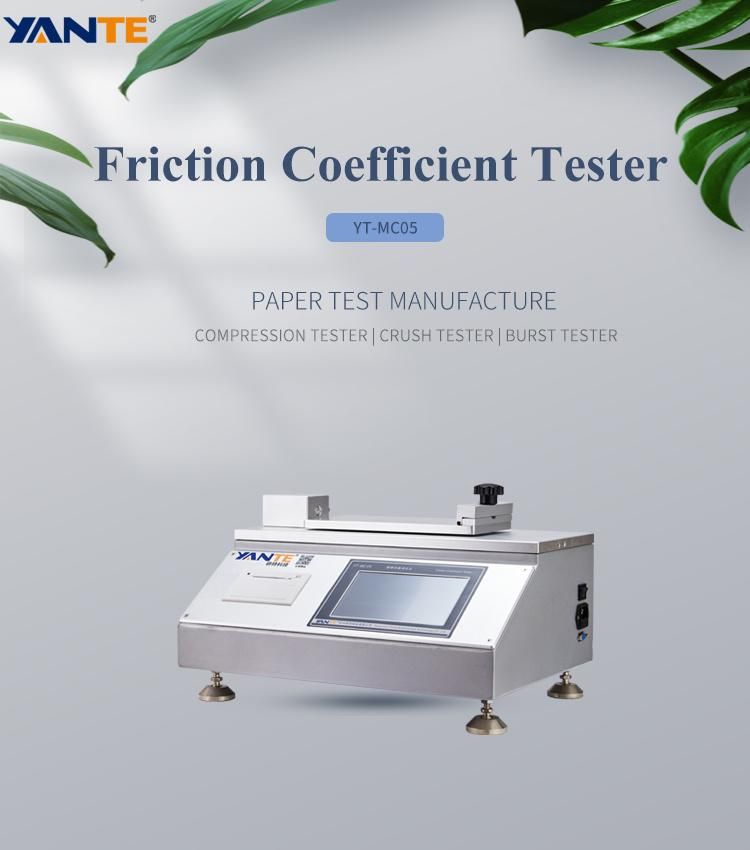

The Friction Coefficient Tester is used to measure the static and dynamic friction coefficients of plastic films and sheets. It can intuitively understand the smoothness and opening of the film, and display the distribution of the slip agent through a curve. By measuring the smoothness of the material, it is possible to control and adjust the opening of the packaging bag, the packaging speed of the packaging machine and other production quality process indicators to meet the requirements of product use.

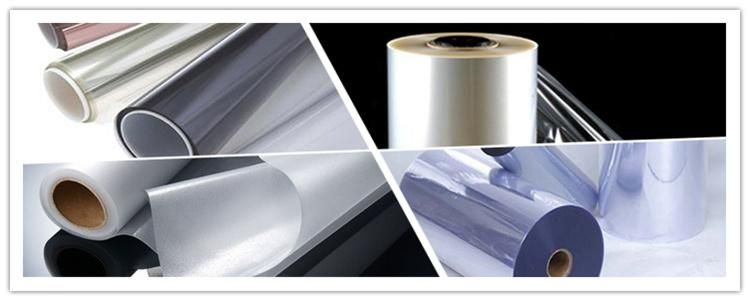

Plastic film and sheet

1. ARM processor, 7-inch large-screen color touch screen
2. Test data memory function, high-speed thermal printer print output, fully automatic test function
3. Test data statistical processing function, real-time display of test data and curves
4. The closed-loop servo motor drives the precision ball screw to ensure accurate displacement, smooth operation and low noise.
5. Cooperate with computer software for communication (purchased separately)

GB10006-1988

No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	800×480 7 inch color touch screen
4	Force measuring range	(0.05~10)N
5	Resolution	0.001N
6	Slider size	63×63 mm
7	Slider weight	200g
8	Test bench size	200×455 mm
9	Measurement accuracy	±0.5%(Range 5%~100%)
10	Slider movement speed	(100±10)mm/min
11	Slide stroke	100 mm
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	460×330×280 mm
14	Net Weight	17.5kg around
