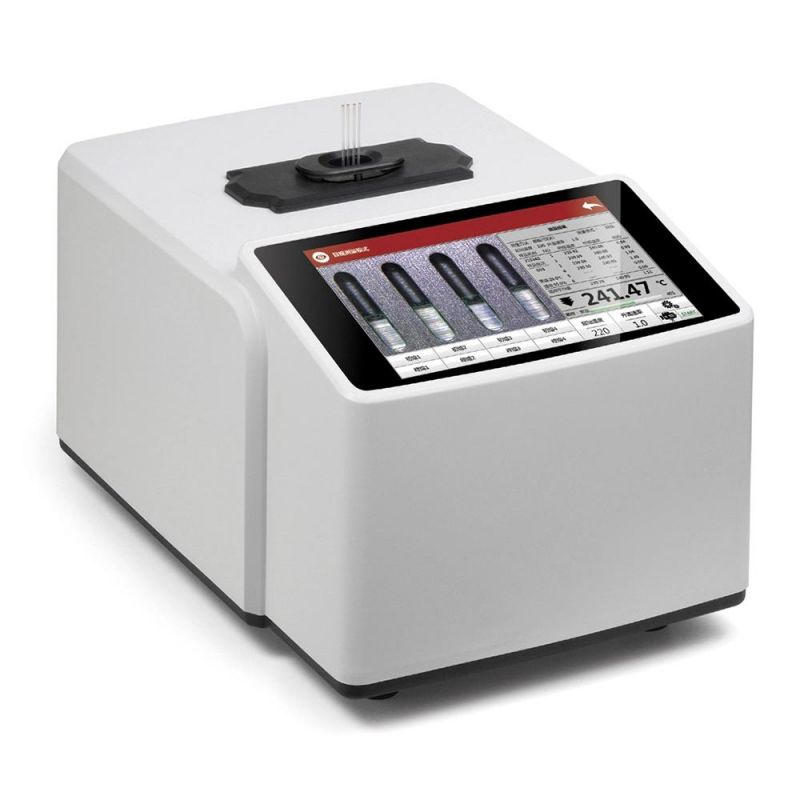

Hmzx-1A Advanced Lab Image Analysis Video Melting Point Apparatus
Huazhi (Fujian) Electronic Technology Co., Ltd.- After-sales Service：Training
- Certification：CE, ISO
- Power：Electronic
- Warranty：1 Year
- Style：Desktop
- Application：School, Lab, Spice, Cosmetics, Pharmaceutical Factory
Base Info
- Model NO.：HMZX-1A
- Test Method：Image Analysis + Vision Measurement
- Sample Loading Way：Capillary Tube Method
- Number of Capillaries：4
- Transport Package：Corrugated Carton
- Specification：400x245X550(adjustable)mm(LxWxH)
- Trademark：HUAZHI, OEM
- Origin：China
- HS Code：9025800000
- Production Capacity：100PCS,Month
Description
Main Technical ParametersModel HMZX-1A Test Method Image analysis AUTO-ROI® measure + Visual Sample Loading Way Capillary Tube Method Temperature range Ambient ~ 320ºC Min. Temperature Resolution 0.01ºC Ramp Rate Stepless setting at 0.1ºC~20ºC/min Ramp Rate Error ≤5% Accuracy ±0.2ºC(<200ºC) ±0.4ºC(≥200ºC) Reproducibility 0.1ºC(ramp rate 0.5ºC/min)
0.2ºC(ramp rate 1ºC/min) Number of Capillaries 4 Capillary dimensions Φ1.4mm ext. dia., Φ1.0mm inner dia., 90mm lengths. Fill height 3mm~5mm Display 7" True color (1024x600)+ HD capacitive touch screen Screen Display melting video and melting curve in real time Length of video recording 500mins(optional with 1000mins) Port RS232 / USB(M) / Ethernet / WIFI(optional) Printing Included Pre-set Meas. Methods Predefined 64 kinds of measuring methods Log Store Included User Management Administrator+32operators(permission settings) Hierarchical Password Administrator+32 operators E-signature Included Data provenance Included Measurement Report Manual/auto generate or store; Customized format Power supply 220±10%V AC,50/60Hz/150W
5 Dimensions (L ×W×H) 345X245X215mm Weight About 5kg
FAQ:
Q:Are your company a trading one or a factory?
A:Factory Direct Sale, More than 12 years focusing on lab instruments field,10 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:Our products are guaranteed for 12 months and we provide life-long service. The professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: Is Available to print customer required logo on your product ?
A: Sure. Please inform and confirm the logo design details with our team ahead of the production.Then we will follow your requirement
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
