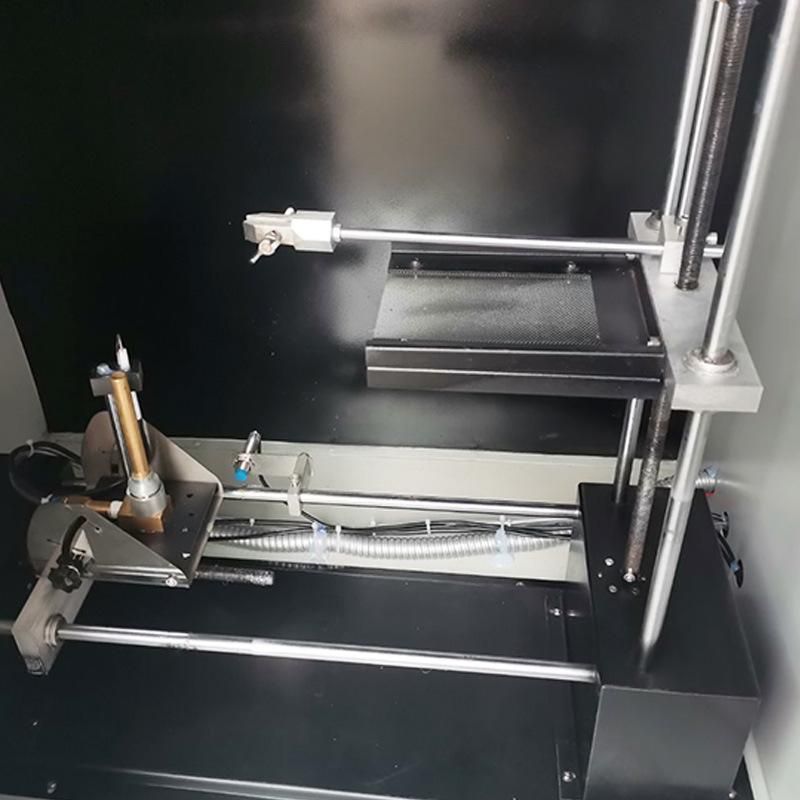

Plastics Flammability Tester Vertical and Horizontal Burning Test Machine
Dongguan Hongjin Test Instrument Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Type：Textile Combustion Testing Machine
- Maxcapacity：No
- Accuracy Grade：No
- Display：Digital
Base Info
- Model NO.：HJ-80
- Control：Touch Screen Controller
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Counter：0-9999
- Flow Pressure：with Flow Meter (Gas)
- Test Background：Black Background
- Chassis Material：Painted or Stainless Steel
- Studio Volume：0.5 Cubic
- Transport Package：Fumigation-Free Standard Export Wooden Box
- Trademark：Hongjin
- Origin：China
- Production Capacity：1000 Sets, Month
Description

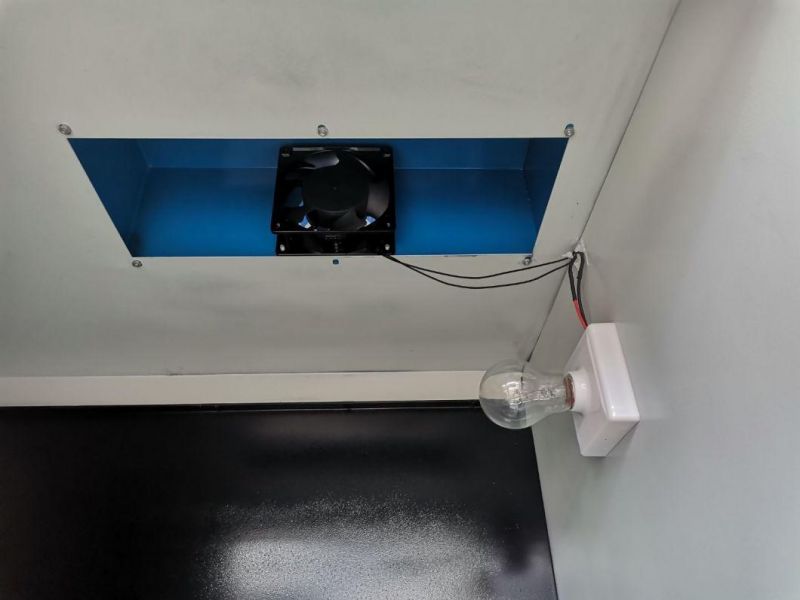

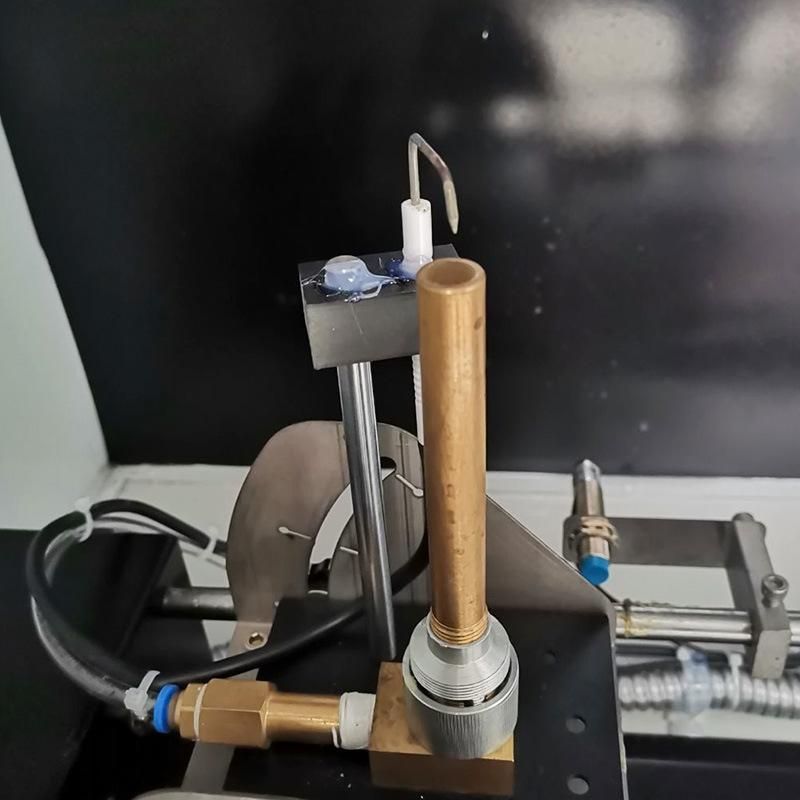

Technical parameter1. Burner One inner diameter Φ9.5mm (12) ± 0.3mm single gas mixed gas Bunsen burner 2. Test inclination 0°, 20°, 45°, 65°, 90° manual switching 3. Flame height 20mm ± 2mm to 180mm ± 10mm adjustable 4. Time of applying flame 0-999.9s±0.1s adjustable 5. Afterflame time 0-999.9s±0.1s, 0-999.9s±0.1s, 6. Counter 0-9999 7. Combustion gas 98% methane gas or 98% propane gas (generally, liquefied petroleum gas can be used instead) 8. Flow pressure With flow meter (gas) 9. Temperature test range 0~1000ºC 10. Flame temperature requirements The time to rise from 100°C±5°C to 700°C±3°C is within 44±2 seconds and 54 seconds±2 seconds 11. Dimensions (LxWxH) 2825px x 1425px x 3000px (paint); 12. Test background Black background 13. Test process Test procedure manual/automatic control, independent ventilation, lighting 14. Reference standard UL1581UL13UL444UL1655CAS FT-1, UL 94-2006, IEC 60695, IEC 60695-11-4, GB/T5169.1722-2008 (GB/T2408-2008/IEC60695-11-101999) standards 15. Studio volume 0.5 cubic (other sizes can be customized) 16. Chassis material Painted or stainless steel
