• Model NO.：CCT
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Na
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Item Name：Building Material Heat Release Rate Hhr Testing as
• Application：Test Heat Release, Mass Loss of Building Material
• Reference Standards：ISO5660, ASTM E1354
• Application Field：Building Material, Railway, Marine, Cable, etc.

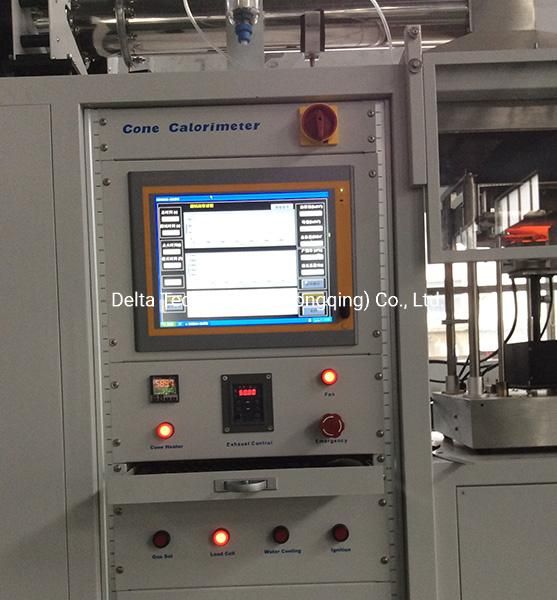

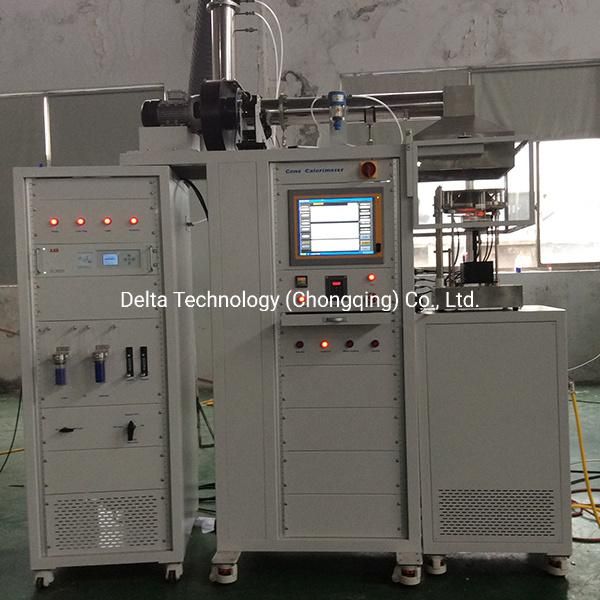

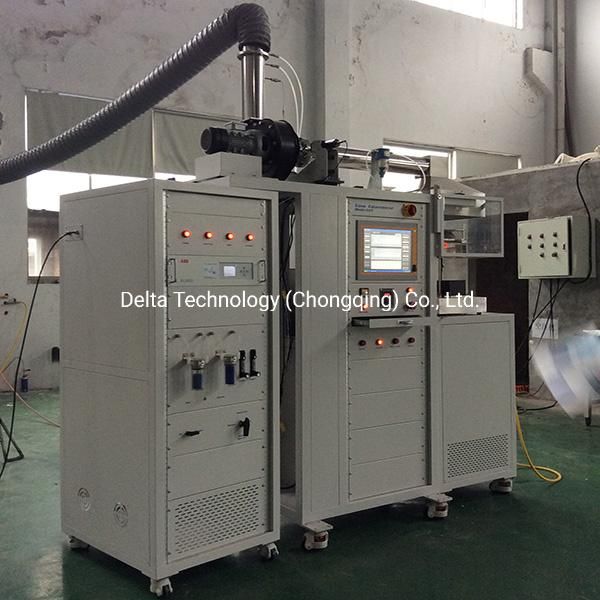

• Features：High Quality ASTM E1354 ISO5660 Cone Calorimeter
• Conical Heater：5000 W, Output 100 Kw,M2
• Temperature Controller：3 Type K Thermocouples and a 3-Term (Pid)
• Operation Method：Through Computer, PLC Control
• Working Gas：Compressed Air
• Calibration Gas：CH4, N2, CO2,Co Mixed Gas
• Transport Package：in Veneer Casse
• Specification：1800mm (W) x 900mm x (H) x 2600mm (D)
• Trademark：DELTA
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Measured properties:

1. Heat release rate;
2. Flue gas flow rate;
3. C coefficient;
4. Time to ignition;
5. Extinction time;
6. Total oxygen consumption;
7. Smoke release rate;
8. Mass loss rate;
9. Effective heat of combustion;
10. Rates of release of combustion gas (e.g. CO and CO2)
