• Model NO.：CMX-HS
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Needle
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Customization：Available
• Transport Package：Plywood Cases
• Specification：depends on size
• Trademark：CAMINIX
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. CMX-HS Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Needle Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Top Customization Available Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 200 Sets/Year

Product Description

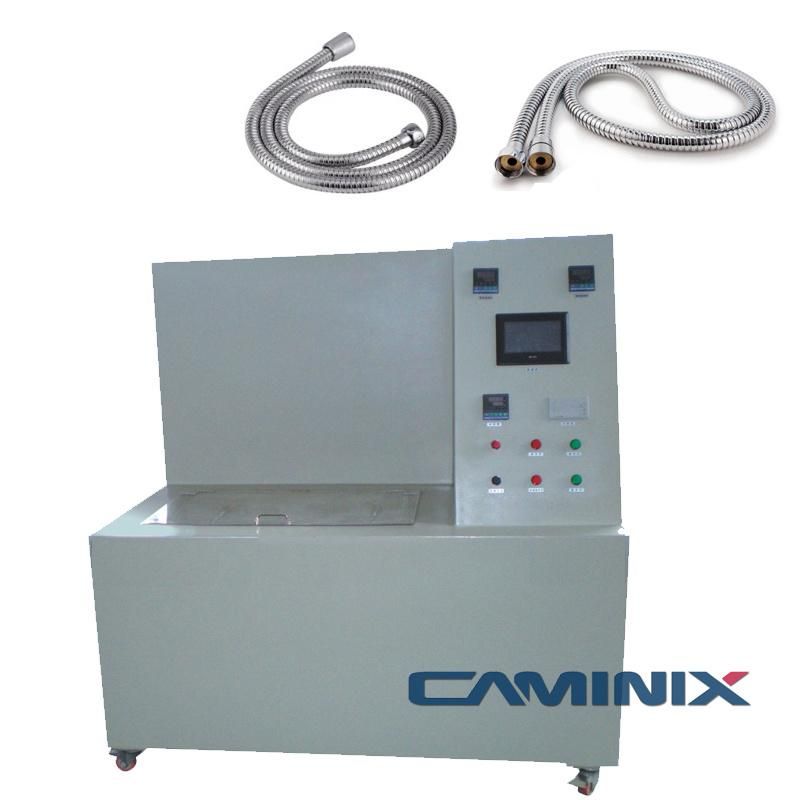

test bench for testing Stainless Steel Wire Braided Bathroom shower hose

Overview

Equipment introduction: This equipment is equipped with a corresponding water pressure supply system, which is used to provide the test medium with corresponding temperature, pressure and flow to the hose.

Pulse or intermittent impact testing is performed to detect thermal performance.

Working voltage: water pump/heating/cooling three-phase AC380V, other single-phase AC220V, with reliable grounding

Working water pressure: static pressure 1.3Mpa, dynamic pressure 0.3Mpa (product flow does not exceed 15 liters/min) fluctuation range within 0.02Mp

Test station: one station Test products: faucet, valve core, shower, ball head, hose

Test medium: 10+6°C cold water (can be set and controlled), 82+3°C hot water (can be set and controlled)

Electronic control system: LG PLC+5.7 touch screen, data can be archived Data printing: text information can be printed

Prompt function: automatic shutdown, alarm and information prompt when abnormality occurs or when the test is over

Test setting times: 1-200000 can be set Action frequency: 1-1800 seconds can be set

Water supply system: composed of stainless steel water pump + pressure reducing valve, the static pressure can be adjusted by the pressure reducing valve, and the adjustment range is 0.5Mpa-1.3Mpa

Power: 3HP Dimensions: L1280*H680*H1300 (Unit: mm)

Temperature accuracy: within the deviation range of ±2°C, it can be displayed to one digit after the decimal point.

Test items

Shower hose , Bathroom Hose

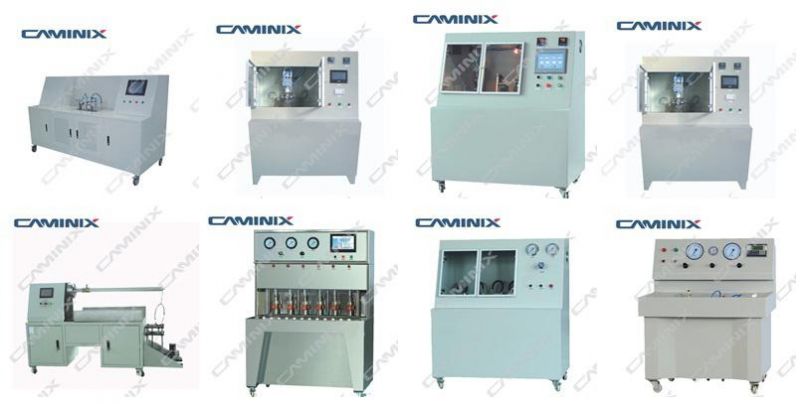

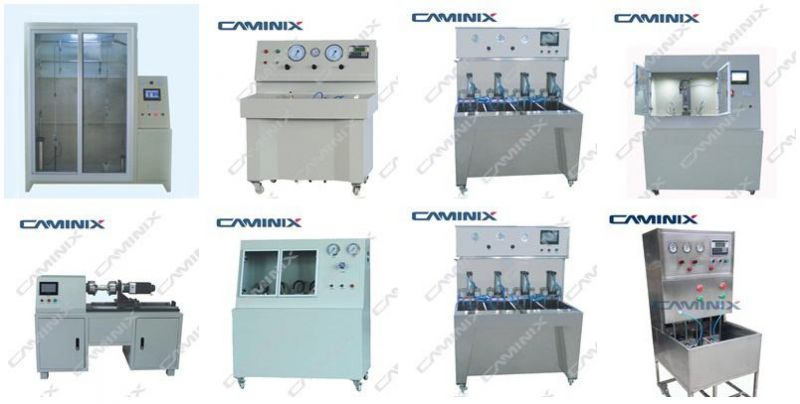

We also have other types of faucet testing machines . Please contact us for more infromation.
We can also customize the machine for you too if you send us the detailed request.
