China Famous Brand Power Transformer TTR Tester
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Response on Customers′ Questions Within 12 Hours.
- Warranty：1 Year
- Description：Multi-Functional Famous Brand Power Transformer Tt
- Reference Standards：IEC76-1 and IEC60044
- Test Parameters：Turns Ratio, Phase Angle, Polarity, Vector Group
- Function：TTR Tester for Transformer Testing
Base Info
- Model NO.：TTR-I
- Features：China Made Low Price TTR Tester
- Test Object：Single Phase and Three Phase Transformer, CT, PT
- Ratio Measurement Range：1-10000
- Group Measurement：1-12
- Test Voltage：0-80V
- Length of Test Cable：8 Meters
- Communication Port：USB
- Printer Function：Yes, Micro Printer
- Dimension：40cm*35cm*20cm
- Weight：7kg
- Power Supply：220V, 50Hz or as Request

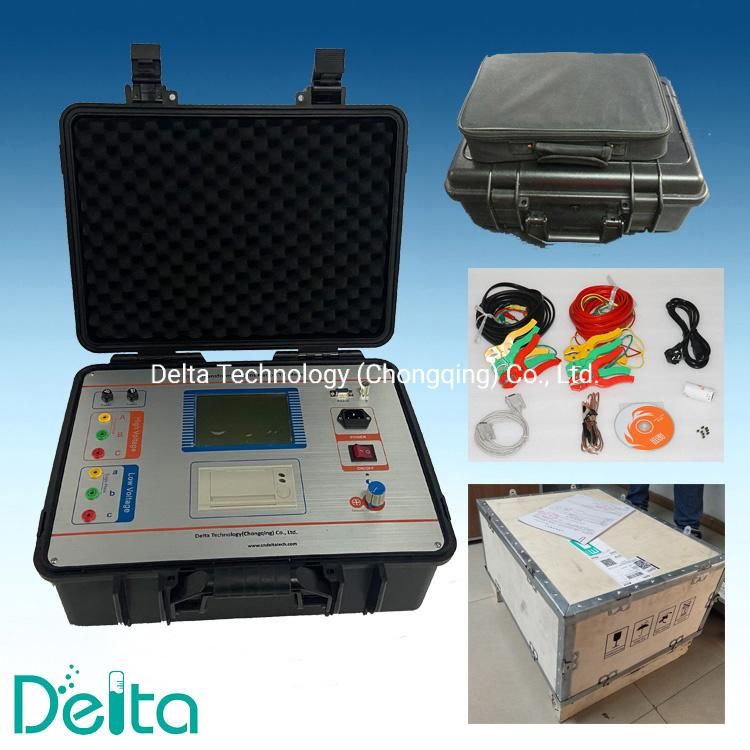

- Transport Package：TTR Tester Packed in Veneer Case
- Specification：400mm*350mm*200 mm, 7kg
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets , Month
Description
Basic Info.
Model NO. TTR-I Features China Made Low Price TTR Tester Test Object Single Phase and Three Phase Transformer, CT, PT Ratio Measurement Range 1-10000 Group Measurement 1-12 Test Voltage 0-80V Length of Test Cable 8 Meters Communication Port USB Printer Function Yes, Micro Printer Dimension 40cm*35cm*20cm Weight 7kg Power Supply 220V, 50Hz or as Request Transport Package TTR Tester Packed in Veneer Case Specification 400mm*350mm*200 mm, 7kg Trademark Delta Origin China Mainland HS Code 9031809090 Production Capacity 1000 Sets / MonthProduct Description

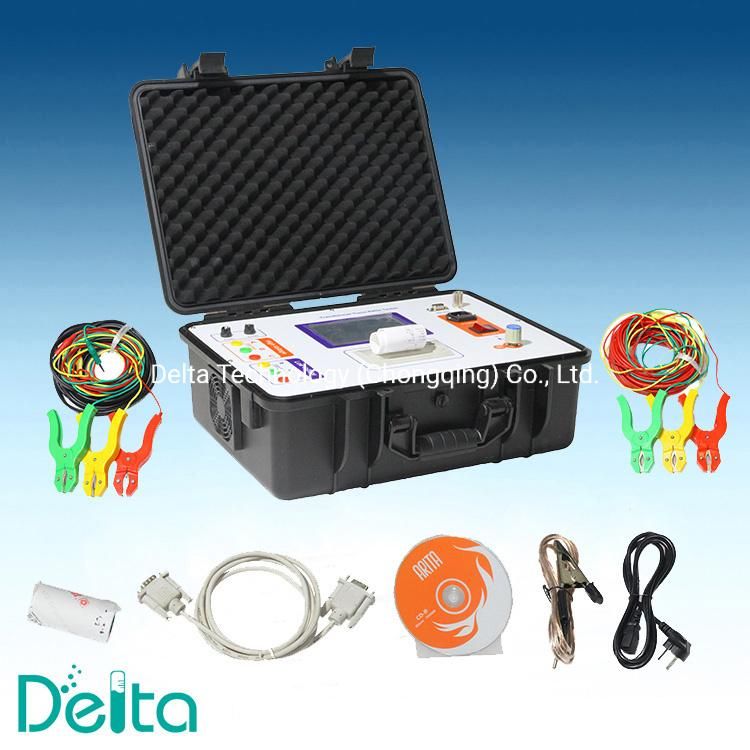

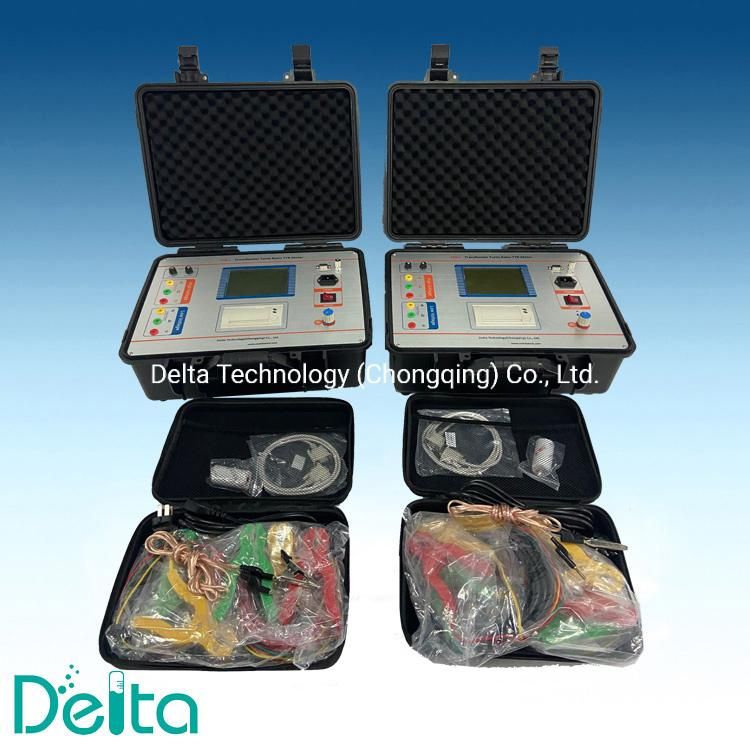

TTR-I China Famous Brand Power Transformer TTR TesterIntroduction:
1. TTR-I Transformer TTR Tester is designed according to IEC76-1 and IEC60044.
2. TTR-I Transformer TTR Tester can be applied to test the turns ratio and group vector of single or three phase transformer.
3. The connection group of three phase transformer also can be calculated with the ratio.
4. All parameters can be measured in one test for three phase transformer.
Functions:
| Parameters Testing / Type of Transformer | Single Phase Power Transformer | 3 Phase Power Transformer | CT | PT |
| Turns Ratio Testing | Yes | Yes | Yes | Yes |
| Phase Angle Testing | Yes | Yes | Yes | Yes |
| Polarity Testing | Yes | Yes | Yes | Yes |
| Vector Group Testing | / | Yes | No | No |
Main Parameters:
| No. | Item Name | TTR-I China Famous Brand Power Transformer TTR Tester |
| 1 | Ratio measurement range | 1-10000 |
| 2 | Group measurement | 1-12 |
| 3 | Phase measurement error | 1 degree |
| 4 | Ratio measurement error | 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG |
| 5 | Test voltage | AC 0~80V continuously, frequency 50Hz |
| 6 | Power supply | AC220V ± 10%, 50Hz/60Hz |
| 7 | Working environment | 0-50°C, ≤85%RH |
| 9 | Size | 400mm*350mm*200 mm |
| 10 | Weight | 7kg |
| 11 | Length of test cables | 8 meters |
