• Model NO.：DC48-100
• Brand：Triumph Load
• Nominal Voltage：DC48V
• Discharge Voltage：10-60V
• Protected Voltage：1-60V
• Discharge Current：1-100A
• Discharge Time：1m---99h59m
• Discharge Capacity：1-1000ah
• Accuracy：Current--0.1A, Voltage --0.1V
• Working Voltage：AC Single Phase 220V,50Hz
• Cooling Mode：Forced Air Cooling
• Transport Package：Wooden Box
• Specification：426*505*172mm
• Trademark：Triumph
• Origin：Hebei China
• Production Capacity：10000,Month

Basic Info.

Model NO. DC48-100 Brand Triumph Load Nominal Voltage DC48V Discharge Voltage 10-60V Protected Voltage 1-60V Discharge Current 1-100A Discharge Time 1m---99h59m Discharge Capacity 1-1000ah Accuracy Current--0.1A, Voltage --0.1V Working Voltage AC Single Phase 220V/50Hz Cooling Mode Forced Air Cooling Transport Package Wooden Box Specification 426*505*172mm Trademark Triumph Origin Hebei China Production Capacity 10000/Month

Product Description

Portable DC Battery/UPS Discharger Tester

1.Portable DC Battery/UPS Discharger Tester Introduction
This DC battry/UPS discharger tester was designed as the function of batteries and DC power supply  maintenance.
It widely used in broadcasting, communication, electric power electron, scientific research, and so on. The advantages of the product are small volume, light weight, digital display, easy to operate, high intelligence and long life time. After all parameter setting it can be automatically discharge with constant current.

2.Portable DC Battery/UPS Discharger Tester Main Features
1.LED Digital meter can display voltage, current, capacity and time.
2.Keyboard will be used to setting protected voltage, discharge current ,capacity and time.
3.Automatically discharge when TIME OUT,EXCEED CAPACITY,or REACH PROTECTED VOLTAGE.
4.When the following conditions occur, the system will give alarm and cut off the load automatically: Overheat,
improper connection of positive and negative terminals, abnormal disconnection of battery pack.
5.The machine will automatically remember last parameter setting, for the same model of battery bank, it is not
necessary to reset again.
6.Cooling: Forced air cooling.

3.Portable DC Battery/UPS Discharger Tester Specification

Model No.	DC48-100
Nominal Voltage	DC48V
Discharge Voltage	10-60V, DC48V±5% for MAX current (100A, long duration). Current reduces by Voltage decrease.
Protected Voltage	1-60V
Discharge Current	1-100A
Discharge Time	1M---99H59M
Discharge Capacity	1-9999Ah
Accuracy	Current--0.1A, Voltage --0.1V
Control Precision	±(0.3%+0.2A)
Working Power	AC 1-phase 110V/220V,50Hz/60Hz
Cooling	Forced air cooling
Work Environments	-10ºC ~ +40ºC (14ºF~104ºF)

4.Quality Inspection
The company has 140 employees, including 50 technicians and 25 senior technicians.It is a research and development team and production team composed of elite professionals. Provide the best technical service for customers

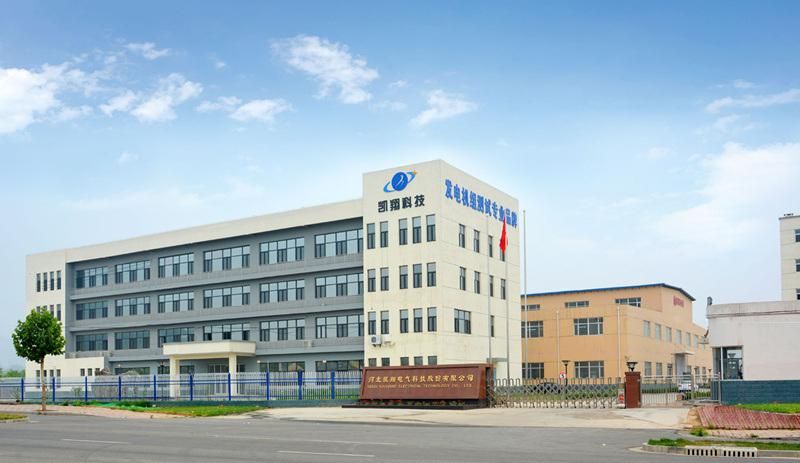

5.company information

Kaixiang Technology was established in 1994, long-term focus on smart power detection technology development and application in shipbuilding, petroleum, offshore platforms, data centers, communications, power, military, aviation, research institutes and other areas, and in strict accordance with the ISO9001 international quality standard management system for the design, manufacture and service.

The company's core technologies are independent research, has seven patents, 10 software copyrights, two corporate standards.Among them, Kaixiang "smart power marine generators AC load," Science and Technology Department of Hebei Province has been named the international advanced level scientific and technological achievements, the enterprise standard "dry AC load" to upgrade the industry standard by the Ministry of publicity.

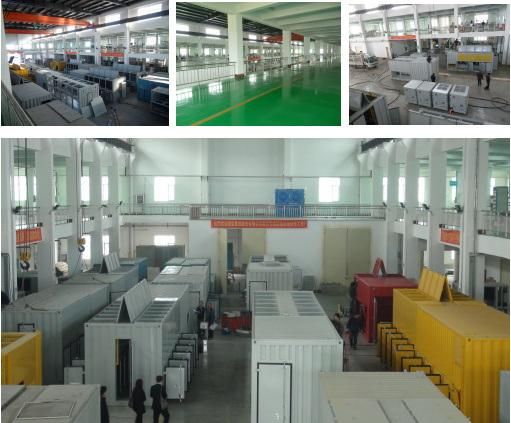

6.factory

7.exhibition


8. Why choosing us

1. The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
2. The most patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
8. Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.

9. Contact Information
Marisa Ren
KAIXIANG ELECTRICAL TECHNOLOGY CO.,LTD
FOREIGN TRADE DEPARTMENT




Web:kxload.en.made-in-china.com
Add:No.79,Wangshan Road,Luquan District,Shijiazhuang,Hebei,China
