• Model NO.：EV-200
• Display：Digital Display
• Product：Asphalt Bitumen Engler Viscometer
• Certification：ISO 9001
• Transport Package：9mm and 15mm Plywood Package
• Specification：200ml
• Trademark：CIVITTEST
• Origin：Zhejiang-China
• HS Code：9031809090
• Production Capacity：100sets ,Month

Basic Info.

Model NO. EV-200 Display Digital Display Product Asphalt Bitumen Engler Viscometer Certification ISO 9001 Transport Package 9mm and 15mm Plywood Package Specification 200ml Trademark CIVITTEST Origin Zhejiang-China HS Code 9031809090 Production Capacity 100sets /Month

Product Description

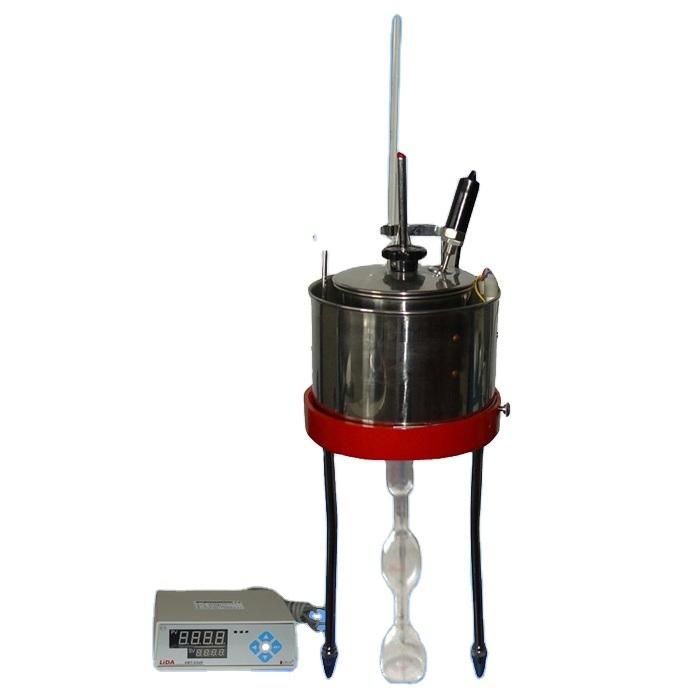

ASTM D1665 BS 2000 oil Liquid Viscosity Test Asphalt Bitumen Binder Petroleum Engler Viscometer

I. Summary
The instrument is made as per T0622 and ASTM D1665 Asphalt Engler Viscosity Test (Engler Viscometer Method) in the industrial standard of People's Republic of China JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering, the national standard of People's Republic of China GB/T 266 Standard Test Method for Engler Viscosity of Petroleum Products and the enterprise standard of Shanghai municipality Q/YXYY11 WNE-1A Engler Viscometer. It is suitable to determine ratio between the time used by an asphalt sample or other petroleum products sample flowing out of Engler viscometer under a certain temperature and volume, and that of distilled water flowing out of Engler viscometer at 25 ºC. The ratio is the Engler viscosity of asphalt or other petroleum products.
Notification: The temperature of distilled water and the capacity of receiving flask may be different for other petroleum products measurement.

II. Features:
1. The instrument is composed of tester and temperature controller. Desktop structure.Both of inner and outer crucible adopt stainless materials.Inner crucible has been specially processed.The smooth finish corresponds with the test requirements.
2. PID temperature controller. The parameters set is convenient. The temperature control precision is high.

III. Technical Specification

Number	Name	Technical indicators
1	Standard water value	(51±1)s
2	Temperature range	(0~100)ºC
3	Temperature control accuracy	±0.2ºC
4	Engler viscosity thermometer	correspond with GB/T 514
5	Specification of measuring flask	(200±0.2)ml
6	Inner crucible	stainless steel material
7	Power of electric heater	550W(AC220V, 50Hz)
8	Accuracy of electric stopwatch	1/100s(provided by user himself)
9	Dimension	200mm×200mm×400mm (Temperature controller is not included)

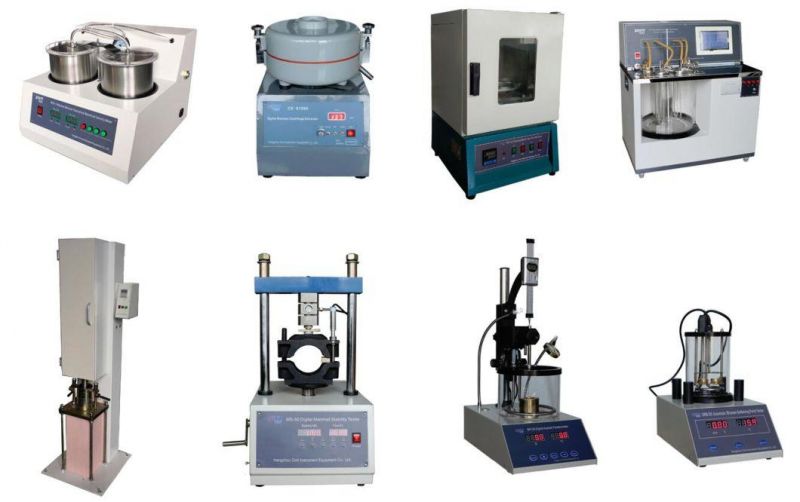

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



IV. Our services

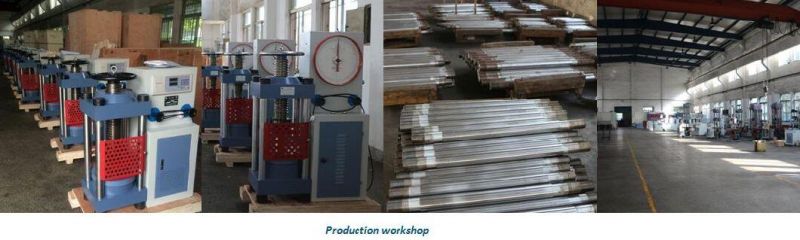

1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.

2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.

3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
