Vertical and Horizontal Vibration Test Table for Automobile Industry
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Warranty：1 Year
- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：ES Series
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Rated Sine Force (N)：1000 to 3500000
- Rated Random Force (N)：1000 to 3500000
- Frequency Range (Hz)：3 to 3500
- Rated Acceleration(M/S2)：400 to 1000
- Rated Velocity(M/S)：1.2 to 1.8
- Rated Displacement (P-P, mm)：25 to 51
- Application：Automobile Industry

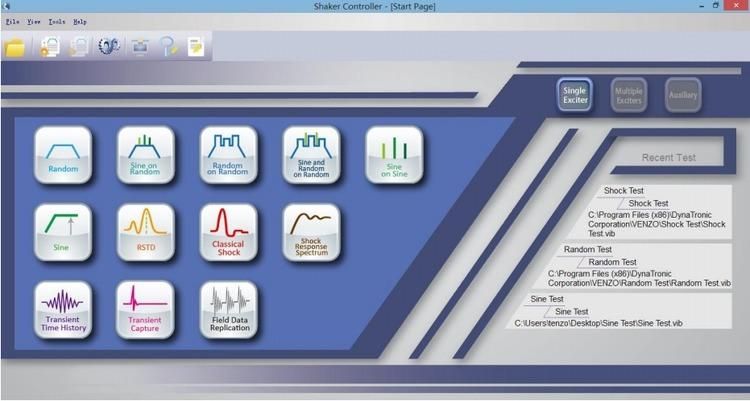

- Control Method：Venzo Controller
- Transport Package：Wooden Case
- Specification：ES Series
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：90312000
- Production Capacity：450 Sets, Year
Description
Overview
Product Description Model Rated
Sine
Force (N) Rated
Random
Force (N) Frequency
Range (Hz) Rated
Acceleration
(m/s2) Rated
Speed
(m/s) Rated
displacement
(p-p)mm Max.
Loading (
Kg) Moving
coil(Kg) Dimension of
Moving coil
(mm) ES-1 1000 1000 3-3500 400 1.2 25 70 2.5 Φ150 ES-2 2000 2000 3-3500 800 1.6 25 70 2.5 Φ150 ES-2a 2000 2000 3-3500 300 1.6 40 70 8 Φ230 ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150 ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230 ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230 ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230 ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240 ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320 ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450 ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450 ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450 ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450 ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450 ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500 ES-160 160000 160000 3-2100 1000 1.8 51 1500 150 Φ600 ES-200 200000 200000 3-2000 1000 1.8 51 2500 200 Φ650 ES-350 350000 350000 3-1700 1000 1.8 51 4500 300 Φ870
Test capacity:
Sinusoidal vibration, random vibration, shock
Vertical and Horizontal Vibration Testing Machine Features:
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

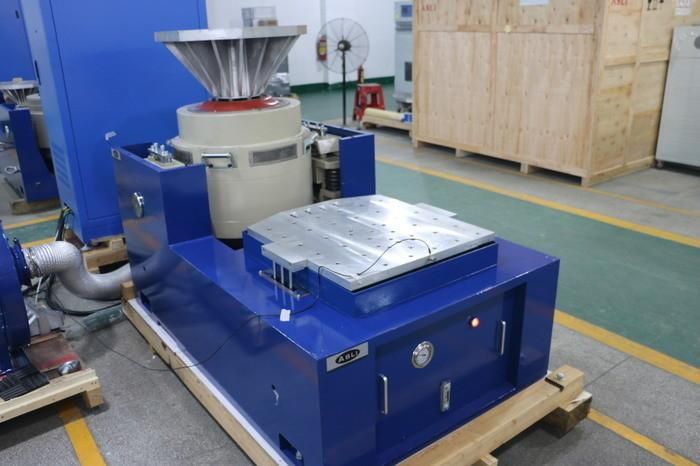

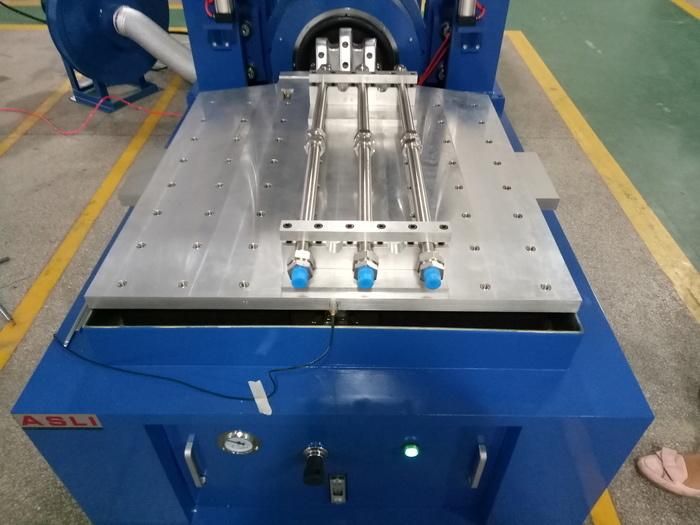

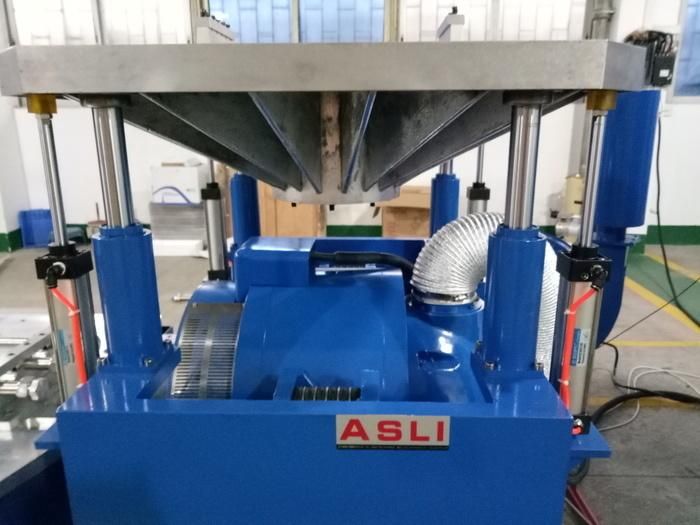

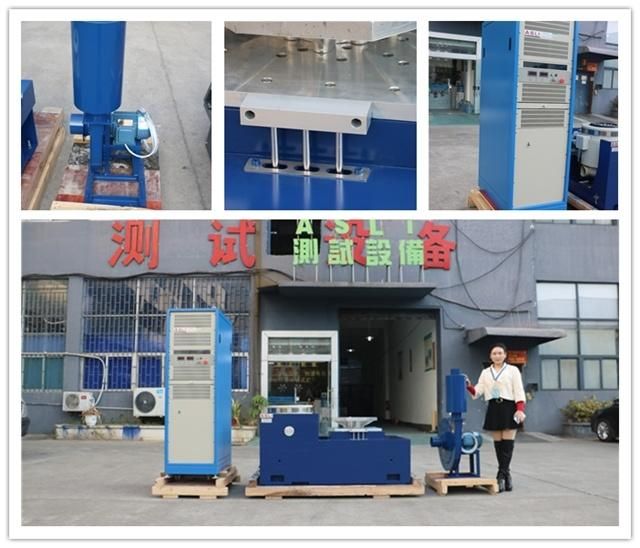

Detailed Photos
Packing Detail:
Vertical and Horizontal Table Vibration Testing Machine for Automobile Industry is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
ASLI Customer Reference List
If you need more information about Vertical and Horizontal Vibration Test Table for Automobile Industry, please feel free to send your inquiry.
Vertical and Horizontal Vibration Test Table for Automobile Industry is widely applied to national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, transportation, home appliances, etc.
