Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619

GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.
  • After-sales Service:24 Hours Online
  • Power Supply:AC 380V 5.5kw
  • Certification:CE, ISO
  • Warranty:1 Year
  • Internal Material:45# Die Steel with Spray Coating
  • Internal Chamber Thickness:10mm

Base Info

  • Model NO.:BE-8214
  • Overall Dimension:W2300 X D3500 X H2600 mm
  • External Chamber Thickness:10mm
  • Door Operation Mode:Hydraulic
  • Air Output:45m³,Min
  • Total Weight:Approx 8 Tons
  • Transport Package:Each Set Protected with Resin Fiber and PP Film, T
  • Specification:W2000 X D3000 X H2000 MM
  • Trademark:DGBELL
  • Origin:Guangdong China
  • HS Code:8419899090
  • Production Capacity:100set ,Month

Description

Basic Info.

Model NO. BE-8214 Overall Dimension W2300 X D3500 X H2600 mm External Chamber Thickness 10mm Door Operation Mode Hydraulic Air Output 45m³/Min Total Weight Approx 8 Tons Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification W2000 X D3000 X H2000 MM Trademark DGBELL Origin Guangdong China HS Code 8419899090 Production Capacity 100set /Month

Product Description

Walk in Explosion-proof Test Machine According to UL 2580 IEC 62619

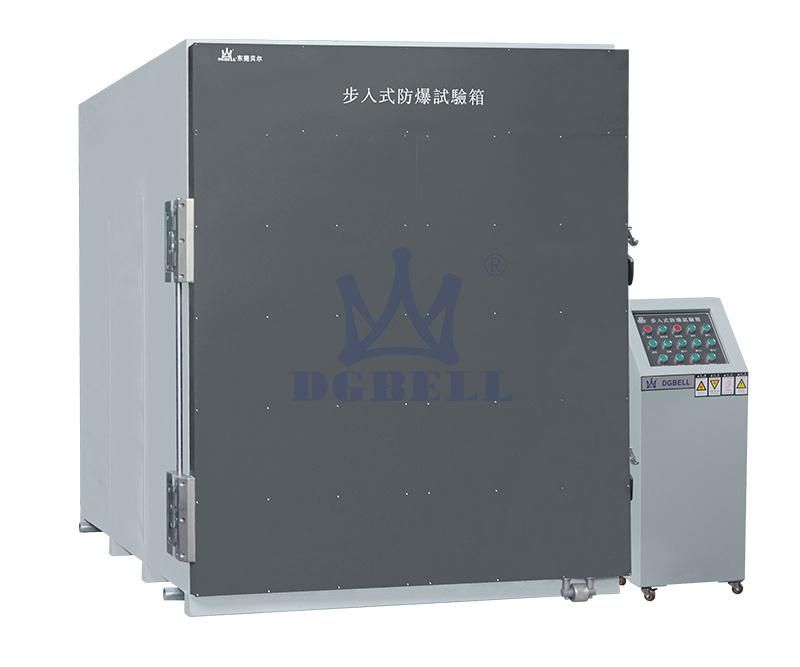

Product show

Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619

Application

This Walk in Explosion-proof Chamber is mainly used to test the safety performance of lithium ion battery, battery pack. Prevent test operators and other test equipment from being burned and exploding. At the same time, the explosion-proof test chamber with the smoke exhaust system can discharge the smoke generated in the test to the outside.



Features

  • Integral construction with many auxiliary functions: Lighting, smoke exhaust, fire extinguishing, explosion-proof pressure relief device, etc.
  • The inner chamber is composed of high temperature resistant and flame retardant components. The chamber door is sealed with high temperature resistant sealing strip.
  • Integrated internal construction, no holes nor gap inside the chamber, easier to clean.



Standards

  • UL 2580
  • IEC 62619



Technical Parameters

Product NameWalk in Explosion-proof Chamber
ModelBE-8214
Interior DimensionW2000 X D3000 X H2000 MM
Internal Material45# die steel with spray coating
Internal chamber thickness10mm
Overall DimensionW2300 X D3500 X H2600 MM
External chamber thickness10mm
Door Operation ModeHydraulic
Air Output45m³/min
Total WeightApprox 8 Tons
Power SourceAC 380V, 5.5KW
Other FunctionExplosion proof pressure relief system

Smoke exhaust system

Sprinkler fire-extinguishing system

video monitoring system

Drainage system.



Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.


Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Walk in Explosion-Proof Test Machine According to UL 2580 IEC 62619Complete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control
