Hj-1 Lithium Battery Burning Flammability Test Machine

Dongguan Hongjin Test Instrument Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Power Supply：1 Year
  • Certification：CE, ISO
  • Controller：Touch
  • Test Hole Surface Diameter：102mm
  • The Height of The Flame on The Mesh Scre：38mm

Base Info

  • Octagonal Grill Height：12″(305mm)
  • Transport Package：Fumigation-Free Standard Export Wooden Box
  • Trademark：Hongjin
  • Origin：China
  • Production Capacity：1000 Sets, Month

Description

Basic Info.

Octagonal Grill Height 12″(305mm) Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

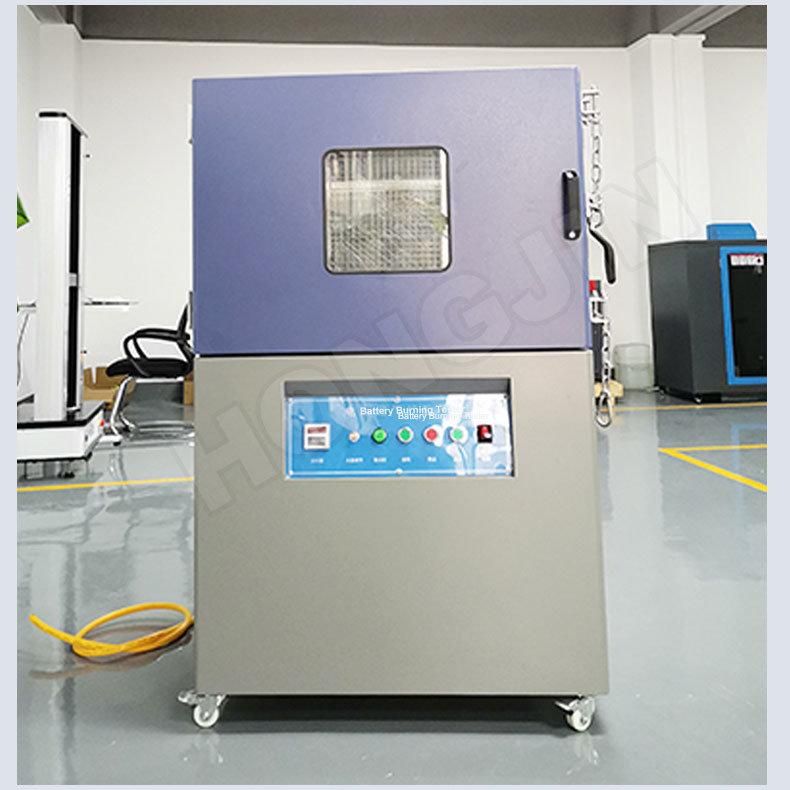

Battery Burning Test Equipment
1.Meets the test standards of UL 2054-2004 and UL1642-2005.
2.The equipment is suitable for battery flame resistance test. Fix the mesh screen 38.1mm above the top of the burner. The mesh screen has 20 holes every 25.4mm, and the steel wire diameter is 0.43mm.
3.The burner and observe the battery combustion until the battery explodes or burns out; And time the combustion process.

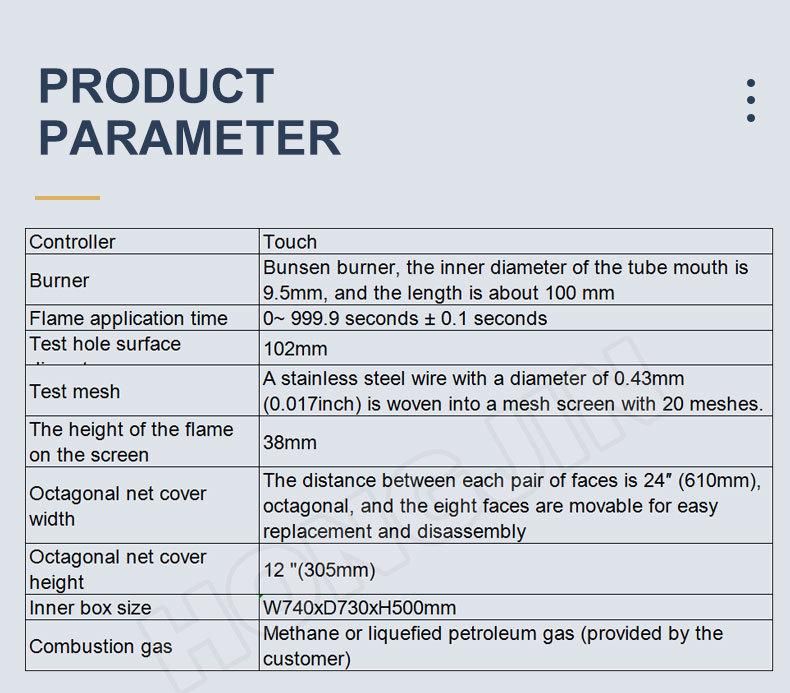

controllertouch
burnerBunsen burner with an inner diameter of 9.5mm and a length of about 100mm
flame application time0~999.9s±0.1s
Test hole surface diameter102mm
Test mesh screenA mesh screen with 20 meshes woven from stainless steel wire with a diameter of 0.43mm (0.017inch)
The height of the flame on the
mesh screen		38mm

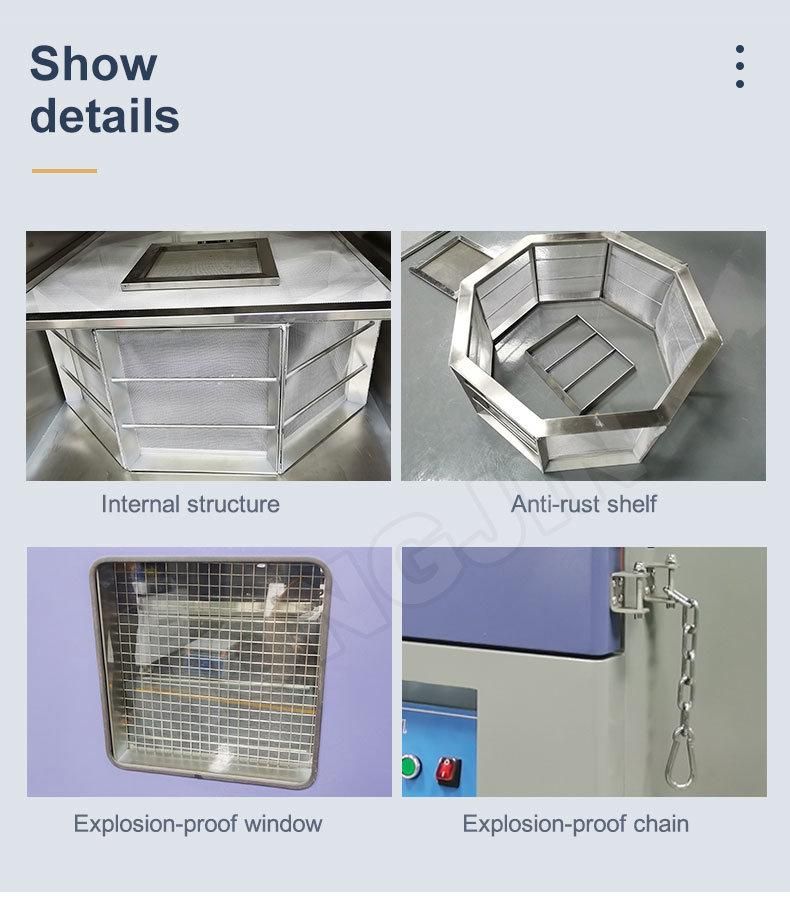

Octagonal grille widthThe distance between each pair is 24″ (610mm), octagonal, and the eight sides are movable for easy replacement and disassembly
Octagonal grill height12″(305mm)
Inner box sizeW740xD730xH500mm (combustion gas methane or liquefied petroleum gas (customer provided)

Hj-1 Lithium Battery Burning Flammability Test MachineHj-1 Lithium Battery Burning Flammability Test MachineHj-1 Lithium Battery Burning Flammability Test MachineHj-1 Lithium Battery Burning Flammability Test MachineHj-1 Lithium Battery Burning Flammability Test MachineHj-1 Lithium Battery Burning Flammability Test Machine

Hj-1 Lithium Battery Burning Flammability Test MachineHj-1 Lithium Battery Burning Flammability Test MachineFAQ
1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2.. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
