Basic Info.

Model NO. TP-4294X Detection Limit 7 Ppm Transport Package Wooden Case Specification CE/ISO Trademark TOP Origin China HS Code 9027809900 Production Capacity 200 Sets/Month

Product Description

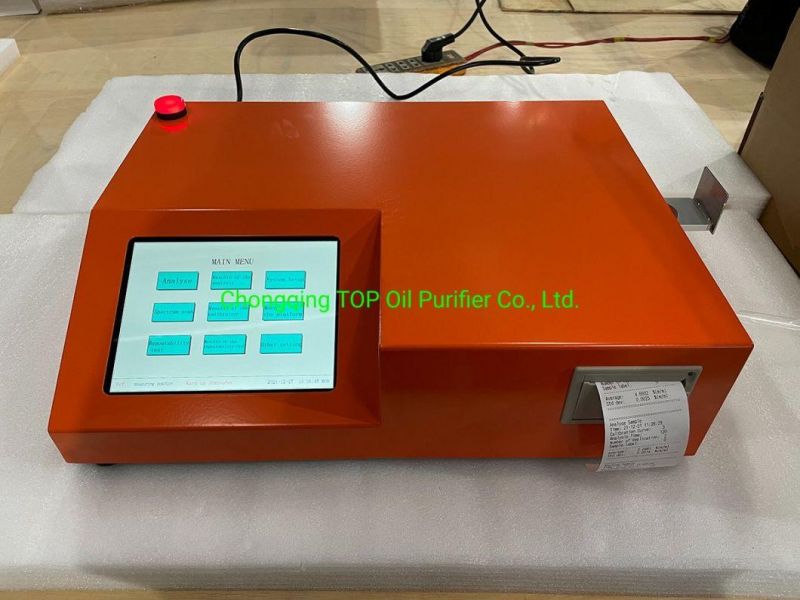

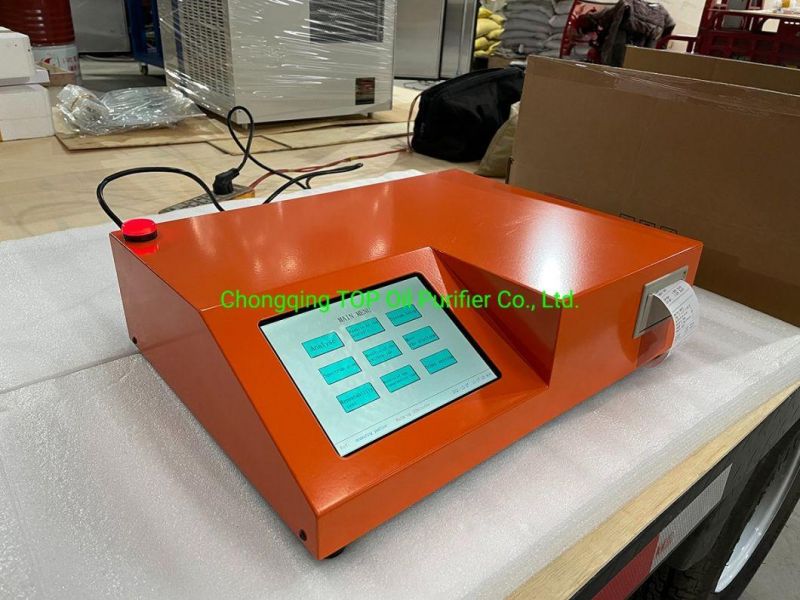

X-ray Fluorescence ASTM D4294 Petroleum Sulfur Tester Machine(TP-4294X)


Introduction:
This TP-4294X oil sulfur content analyzer is specially designed to determine sulfur content in petroleum products. It adopts energy-dispersive principle, with electrical, mechanical and microprocessor integration design to make the test rapid and accurate. It meets national standard GB/T 17040, SH/T0742 and GB/T11140 on repeatability and reproducibility, and also meets ASTM D4294. It provides a measure to determine sulfur content during petroleum or petrochemical production process.


X fluorescence oil sulfur analyzer is a special X fluorescence analyzer developed and manufactured to meet the needs of sulfur content detection in oil products. It adopts the principle of energy dispersion, a microcomputerized design of electromechanical integration, and the analysis is fast and accurate. Its repeatability and reproducibility are in line with the relevant requirements of the national standards GB/T 17040 and GB 11140, and it also fully meets the requirements of the more stringent American National Standard D 4294-03, which is the sulfur content in the crude oil or petrochemical production process. Detection provides an important means. The instrument itself is green and environmentally friendly, and its price is only a fraction of that of imported instruments.

Performance characteristics
1. The fluorescence intensity ratio analysis method is adopted to detect a wide variety of samples, with 12 standard samples, wide range, fast analysis speed, and low sample consumption.
2. Adopt electromechanical integrated microcomputer design, liquid crystal display, operation interface man-machine dialogue, automatic diagnosis function, judging the working status and electrical parameters of the instrument, automatic correction of temperature and air pressure, and the ratio of carbon to hydrogen (C/H) can also be corrected.
3. The disposable Mylar membrane sample cup is used to avoid cross-contamination.
4. The instrument has a standard serial communication RS-232C interface, which can realize communication with a computer.
5. Safe X-ray protection measures have been strictly tested by the Shanghai Institute of Preventive Medicine, and there will be no X-ray electric radiation damage to individuals and groups.
6. National exempt products.
7. The biggest feature of this instrument is: the minimum test index is 7ppm, it is equipped with 12 calibration (calibration) samples, different curves are automatically selected according to different oil samples, and it is equipped with reliable airtight X-ray radiation protection measures.

Technical parameter
1. Measuring range of sulfur: 7ppm~5%;
2. Precision: a Repeatability (r): <0.02894 (X+0.1691); b Reproducibility (R): <0.01215 (X+0.05555);
3. Sample size: 2~3ml (equivalent to sample depth 3mm~4mm);
4. Measuring time: 30, 60, 90, 120, 150 seconds, arbitrarily set;
5.Single sample is automatically measured, the number of measurements: 1, 2, 3, 5, 10 times can be set arbitrarily, and the average value and standard deviation are given at the end of the measurement;
6. The instrument can store 10 calibration curves,
7. Working conditions: Temperature: 5~35ºC; Relative humidity: ≤85% (30ºC); Power supply: AC220V±20V, 50Hz; Rated power: 30W;
8. Dimensions and weight: 430mm×250mm×240mm; 10kg.


Serial number	Name	Specification, model	Unit	Quantity	Remark
1	X fluorescence sulfur analyzer host	TP-4294X	Set	1
2	One three-core power cord		pcs	1
3	Sample cup		pcs	200
4	Sample cup film (Mylar film)		pcs	1
5	Anti-leakage parts (a set of two)		set	1
6	Multi-function pressure piece (two pieces set)		set	1	Exhaust gas
7	Straw (3ml)		pcs	2
8	Calibration (calibration) standard sample		pcs	1
