Advanced Portable AC Three Phase Standard Power Source

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service:Provide lifelong after-sales service
  • Warranty:1 Year
  • Harmonic:Output 2~31th harmonic
  • Frequency:40 Hz ~ 70 Hz
  • Power factor:-1 ~ 0 ~ + 1
  • Power output:better than 0.1% RG

Base Info

  • Model NO.:ZX5080
  • Transport Package:Carton,Wooden Case
  • Specification:With the change of technical scheme
  • Trademark:GDZX
  • Origin:Hubei
  • Production Capacity:500 Pieces,Month

Description

Advanced Portable AC Three Phase Standard Power Source

ZX5080 AC Three Phase Standard Power Source USES the table source integration structure, all-digital close-loop standard source technology, the use of embedded system, big screen TFT color LCD monitor, CPLD chip and high precision A/D, D/A and A series of advanced devices, small volume light weight, can be widely used in electric energy metering industry, electrical laboratory, and other relevant departments, Easy to carry to the site for use.

Features


1.  Design with touch panel and mask button, massive information to see and simple to use

2.  built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF all for reference

3.  Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

4.  Independent control on Three phase voltage current circuits, every phase voltage current parameters can be regulated.

5.  Auto shift range, can freely preset rated value

6.  Multiple choose of voltage, current, phase regulation test point

7.  With R232 communication interface for PC control and software upgrade

8.  Two accuracy levels 0.05 or 0.01 for options

Technical Indicators


1. Source Output

1) AC Phase voltage output

Regulation fineness: 0.01% RG

Resolution: 6 effective digits

Accuracy: better than 0.1% RG

Stability: better than 0.02%RG/ 2 min

Distortion degree: <0.2% (non capacitive load)

Output power: rated 25 VA/phase

Full load regulation rate: ≤0.01% RG

Range: 10V - 460V

Four gears: 57.7 V, 100 V, 220 V, 380 V, switch automatically

Long-term stability: ± 60 PPM/year

2) AC current output

Adjust fineness: 0.01% RG

Accuracy: better than 0.1% RG

Resolution: 6 effective digits

Stability: <0.02% RG / 1 min

Distortion degree:< 0.5%

Output power: rated output 20 VA/Phase

Full load regulation rate: 0.01% RG

Range: 1mA~24A

Gears: 0.2A, 1A, 5A, 20A, switch automatically

3) Power output

Accuracy: better than 0.1% RG

Stability: better than 0.02% RG / 1 min

Resolution: 6 effective digits ( active power, reactive power, apparent power)

4) Power factor

Adjusting range:-1 ~ 0 ~ + 1

Resolution: 0.00001;

Accuracy: 0.001

5) Phase angle

regulation range: 0 ~ 359.99°

Resolution: 0.001°

Accuracy: 0.05°

6) Frequency

Adjusting range: 40 Hz ~ 70 Hz

Resolution: 0.001 Hz

Accuracy: 0.005 Hz

7) Harmonic

Output 2~31th harmonic.


Product pictures

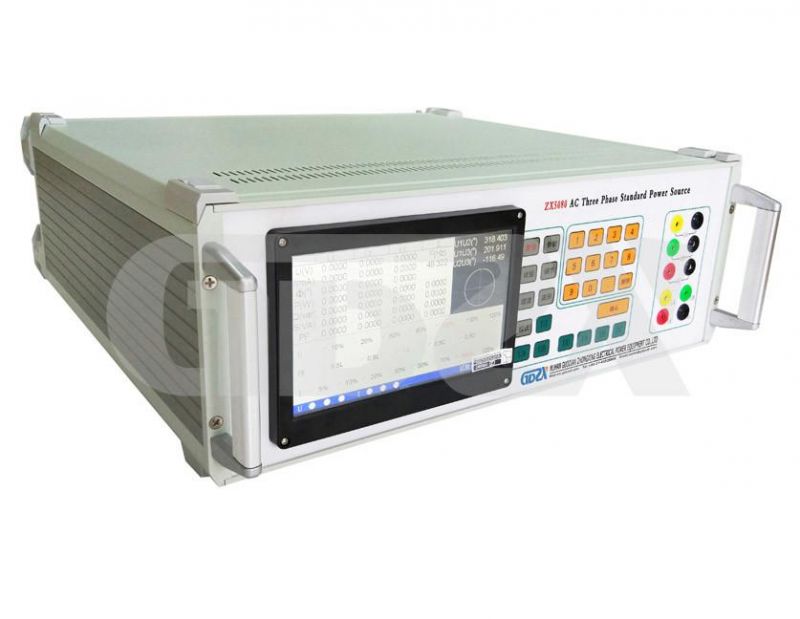

Advanced Portable AC Three Phase Standard Power SourceAdvanced Portable AC Three Phase Standard Power SourceAdvanced Portable AC Three Phase Standard Power Source

Device display

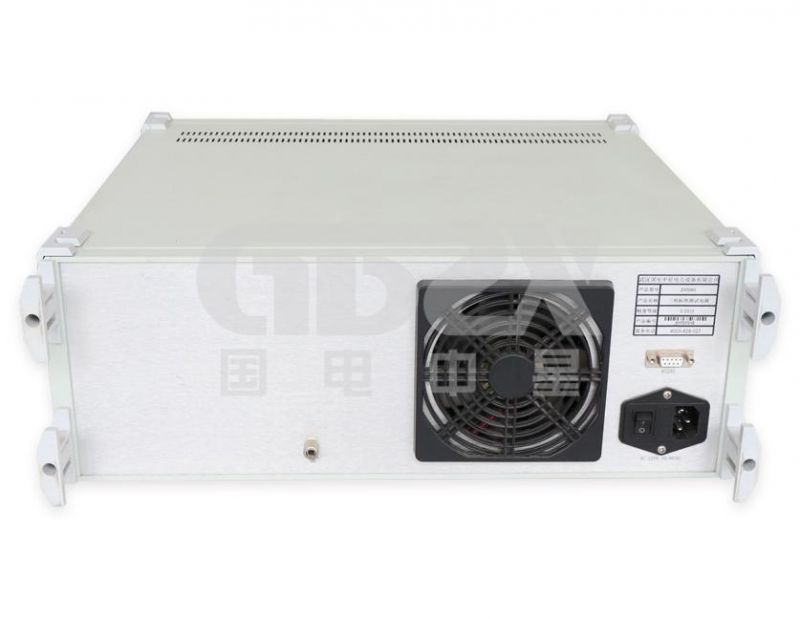

Advanced Portable AC Three Phase Standard Power Source
Advanced Portable AC Three Phase Standard Power Source
About GDZX

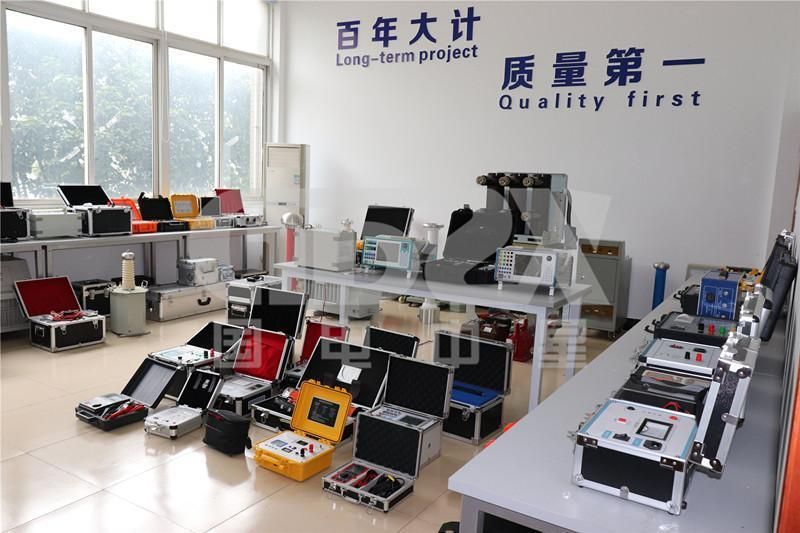

     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Advanced Portable AC Three Phase Standard Power Source
Advanced Portable AC Three Phase Standard Power SourceAdvanced Portable AC Three Phase Standard Power SourceAdvanced Portable AC Three Phase Standard Power Source
Shipping and packaging

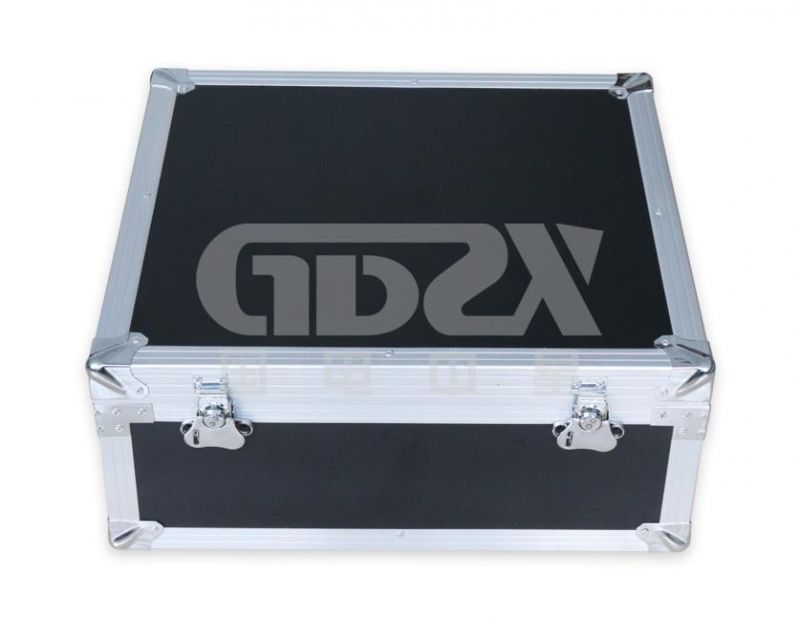

Advanced Portable AC Three Phase Standard Power Source
