Hand-held High Accuracy Optical Digital Relay Protection Tester

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Power supply：4.2V , 3.0A
  • Size：250*140*44(mm)
  • Battery：Rechargeable,11000mAh
  • USB port：1 pcs

Base Info

  • Model NO.：ZX-602
  • Transport Package：Carton,Wooden Case
  • Specification：Customized
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：1200 Pieces,Year

Description

Hand-held High Accuracy Optical Digital Relay Protection Tester      ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.

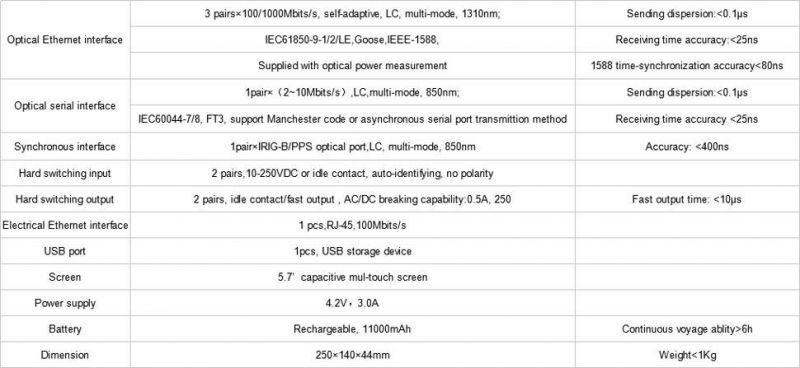

Technical Indicators

Hand-held High Accuracy Optical Digital Relay Protection Tester

Hand-held High Accuracy Optical Digital Relay Protection Tester

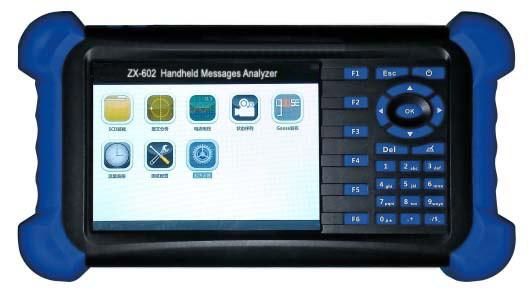

Device display

 Hand-held High Accuracy Optical Digital Relay Protection Tester Hand-held High Accuracy Optical Digital Relay Protection Tester
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.Hand-held High Accuracy Optical Digital Relay Protection TesterHand-held High Accuracy Optical Digital Relay Protection TesterHand-held High Accuracy Optical Digital Relay Protection TesterHand-held High Accuracy Optical Digital Relay Protection Tester
Shipping and packaging Hand-held High Accuracy Optical Digital Relay Protection TesterHand-held High Accuracy Optical Digital Relay Protection TesterFeatures

1. Capacitive mul-touch panel (5.7"), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours

2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection

3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive

4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing

5. Support connection with USB storage device, for data import/export

6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.

7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.

8. Graph demonstration of various electrical parameters, direct result reading

9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns

10. Small and portable, simple to use
