ASTM D1331 Liquid Plating Solution Platinum Ring Surface Tension Meter
Chongqing TOP Oil Purifier Co., Ltd.- Type：Tensile Testing Machine
- Display：Color Touch LCD
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V 50Hz (Customizable)
- Functions：Test Interface,Surface Tension
Base Info
- Model NO.：IT-800A
- Application：Chemical, Petroleum, Power, Research...
- Test Method：Platinum Ring or Platinum Plate
- Applicable Standard：ASTM D971, ASTM D1331, GB,T6541
- Transport Package：Standard Export Wooden Case
- Specification：440*190*350mm
- Trademark：Chongqing TOP Tester
- Origin：Chongqing, China
- HS Code：902780
- Production Capacity：100 Sets , Month
Description
Display mode:10 inch 65K (Resolution 800*600) color LCD touch screen Measurement mode: Platinum ring method Platinum ring radius: R9.55 Platinum wire 0.3 Measuring range: 0-400mN/m. Sensitivity: 0.01mN/m Accuracy: ±0.01mN/m Self Checking Function: Automatic diagnosis of instrument failure Temperature Compensation: Automatic temperature compensation Power Consumption: < 40W Size: 440×190×350mm Working Environment: Temperature 10ºC-40ºC,Humidity ‹80% Power Supply: AC220V±10% 50HZ±2.5HZ Weight: About 7.5 KG

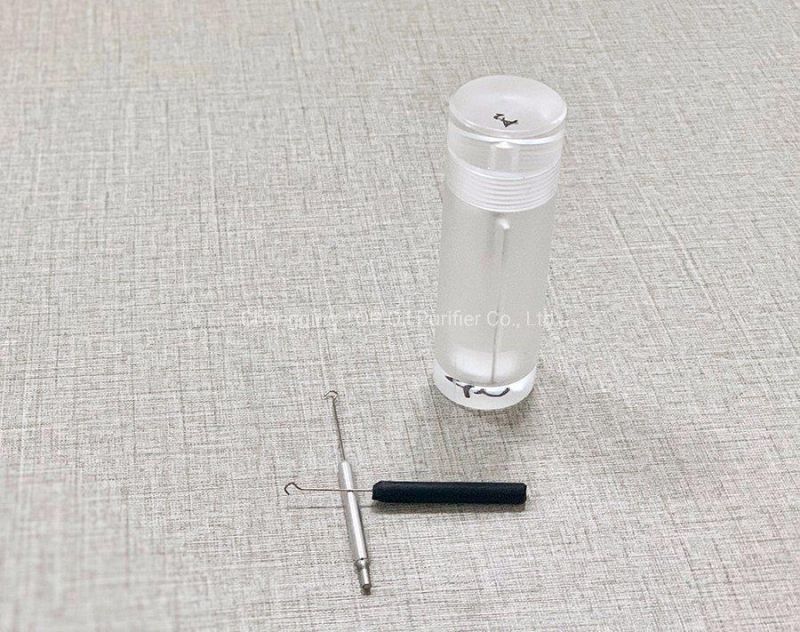

Detailed Images
Our Main Petroleum Products General Testers
(We supply much wider range of testing equipment than the following)
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800
8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000
14.Multi-functional Vibration Tester VBT-2000
15.Automatic Potentiometric Titrator TP668
16.Petroleum Products Density Tester DST-3000
17.Petroleum Products Density Tester TP-109A
18.Karl Fischer Volumetric Water Content Titrator TPD
19.Distillation Range Tester DIL-201
20.Online Oil Quality Tester PTT-002
21.Liquid Phase Corrosion Tester TPS-05
22.Copper Corrosion Tester TP-113
23.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
24.Dew Point Tester DPME-P
25.Portable Chilled Mirror Dew Point Tester TP-1500
Packing & Delivery
Packing: standard export case per set.
Delivery method: this kinds of testing equipment are usually delivered by air or courier, but other method is available if necessary.

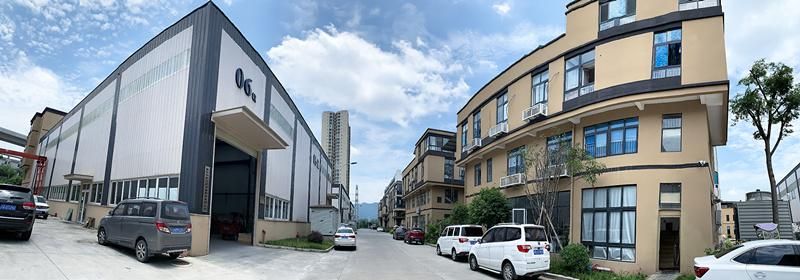

About us
Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
If you are interested in this oil tester or other related equipment, welcome to contact me for more information.
