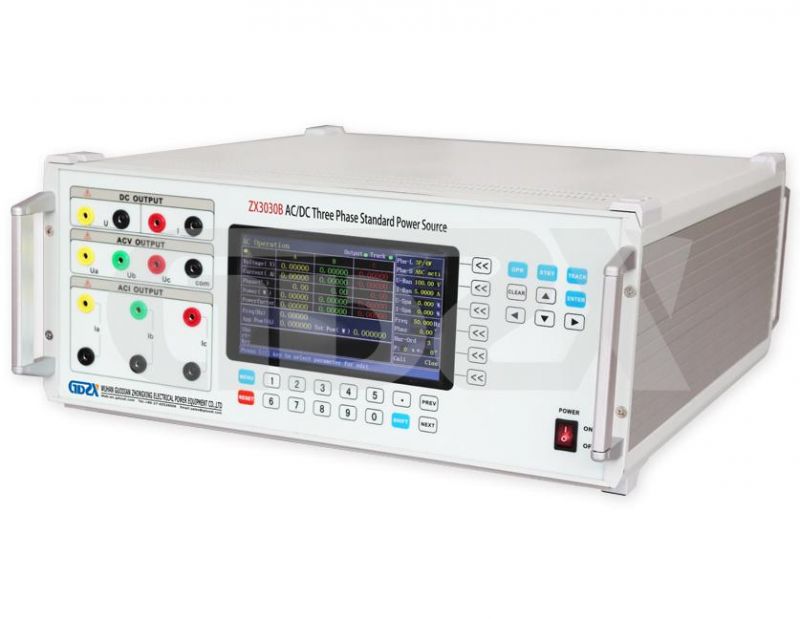

ZX3030B factory price AC/DC Three Phase Phantom Loads Checking Power Meter Standard Power Source
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- DC voltage range：75mV,1V,3V,7.5V,15V,30V;
- DC current range：30uA, 300uA, 3mA, 30mA
- AC Rated current range：0.1A, 0.5A, 1A, 5A, 10A,20A
- AC output range：0 - 600V
Base Info
- Model NO.：ZX3030B
- Working power supply：Single phase 220V+,-10%, 50Hz+,-5%
- Working environment：temperature: 20+,-10;
- Relative humidity：Less than or equal to 85%RH
- Size and Weight：460*480*200mm, 18kg
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Company introduction
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
Features
1. Can be used to test errors and variance caused by voltage, current, waveform or power factor change, for a variety of metering instrument such as energy meter, voltmeter, ammeter, wattmeter, frequency meter, power factor meter, phase meter
2. Can generate distorted wave with 2~32 order harmonic, harmonic number, order, amplitude and phase position to base wave can be controlled by programs
3. Operational amplifier work frequency 40HZ~1kHz, good linearity, dual output protection, High fidelity output signal and high shock-proof ability
4. With RS232 and USB(optional) communication interface for PC connection
5. With aluminum alloy carrying box, which look nice, and with little weight
