• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Temp Range：Rt~200c
• Chamber Size：50*50*60cm
• Warranty：One Year
• Certificate：Ce ISO
• Transport Package：Standard Strong Wood Case
• Specification：700*560*680 mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9031809090
• Production Capacity：248 Sets Per Month

Basic Info.

Loading Method Dynamic Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Temp Range Rt~200c Chamber Size 50*50*60cm   Warranty One Year Certificate Ce ISO Transport Package Standard Strong Wood Case Specification 700*560*680 mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 9031809090 Production Capacity 248 Sets Per Month

Product Description

Usage

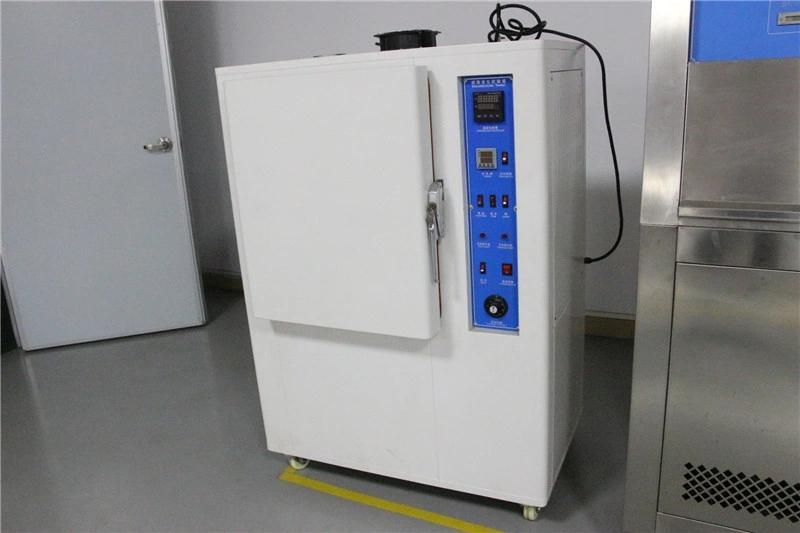

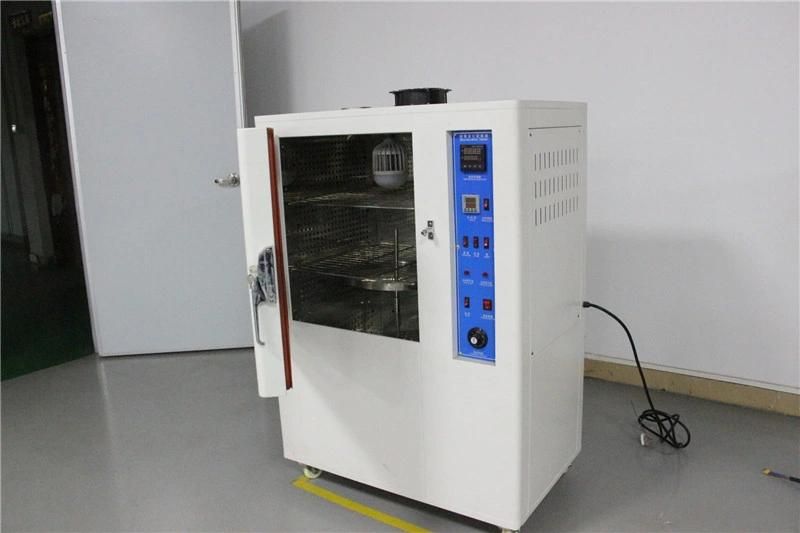

The Yellow tester possesses oven, aging and anti-yellowing functions. A 300W UV lamp
install inside the oven to simulate the fading or discoloring of sample caused by radiation of sunlight or
inside high temperature containers during transportation.

The oven is equipped with a forced hot air loop control system that ensures a uniform temperature
distribution. Observing the yellow change or discoloration of the sample after a period of time under the UV light, the discoloration degree can be determined by gray mark contrast.


Aging
This machine is used to promote deterioration of vulcanized rubber, and the change rate of tensile force
and elongation before and after heating is calculated. Technically, 24-hour test in 70ºC is equivalent to
6-month exposure in the atmosphere.
Discoloration
This machine is simulated in the atmosphere, the goods' change  irradiated by sunlight. Technically,
9-hour test in 50ºC is equivalent to 6-month exposure in the atmosphere.


Specification

Model	XB-OTS-8089
Inner chamber size	50*50*60cm
Temp range	RT~200ºC
Control	Automatic controller
Temp display	0.1ºC
Accuracy	±3ºC
Distribution accuracy	±1% , 1ºC(at 100ºC)
Time memory	0-999 hours  (Power failure memory type with buzzer.)
Speed of turntable	Dia.45cm,  10R.P.M. ±2R.P.M
UV light	UV300W
Standard accessories	Test board 2pcs
Heating	Hot air circle
Safety protection	EGO over temperature, power-off indicator
Power	AC-220V /50 ~60Hz     20A

 Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control software,test of the whole process of handling and output.
Display functions: dynamic display test curves, multi-Dan, on the number of data.

Curve recorder features:real-time record of the test data,test data automatically,the test results can be stored, printed


Packing & Shipping





1.Strong standard wood case, inner plastic films wrapped for Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDECustomer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair


FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
