• Model NO.：XB-OTS-1220S
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Drive Mechanism：Rolling Screw
• Testing Range：2, 5, 20, 50kg, Optional
• Resolution：0.001kg
• Testing Speed：0.1-300mm,Min, Adjustable
• X, Y Axes Moving Plate：0-75mm
• Test Times：1 ~ 999999
• Transport Package：Standard Strong Wood Case
• Specification：400*300*950 mm
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：90248000
• Production Capacity：258 Pieces,Month

Basic Info.

Model NO. XB-OTS-1220S Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Drive Mechanism Rolling Screw Testing Range 2, 5, 20, 50kg, Optional Resolution 0.001kg Testing Speed 0.1-300mm/Min, Adjustable X, Y Axes Moving Plate 0-75mm Test Times 1 ~ 999999 Transport Package Standard Strong Wood Case Specification 400*300*950 mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 90248000 Production Capacity 258 Pieces/Month

Product Description

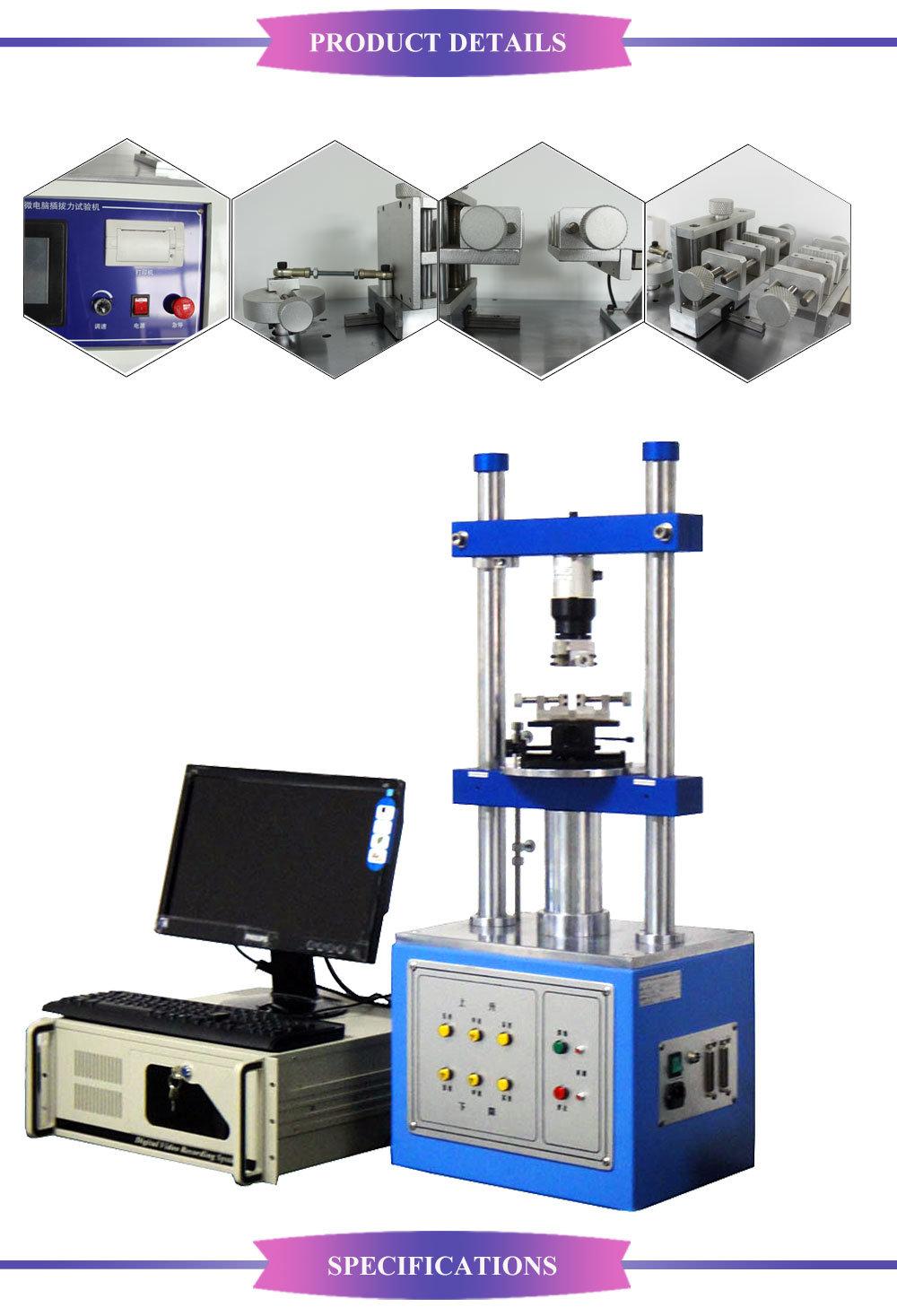

Automatic Insertion Force Testing Machine

Introduction:
    The machine is suitable for a variety of connector plug test, has a number of Settings, speed adjustable, display speed value.
    Iserntion Force Testing Machine is suitable for connectors insertion and withdrawal force tests, the use of unique device automatically matched to find the heart of a variety of special fixture connector, the plug can be completely accurate force results. All the testing informations are setting by the computer and it can automatically store testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.



Specification :

Model
Testing range	2, 5, 20, 50kg, optional
Resolution	0.001kg
Unit switch over	gf,kgf,lbf,N
Testing travel	150mm
Load precision	±0.2%
Resolution	0.01mm
Testing speed	0.1-300mm/min, adjustable
X, Y axes moving plate	0-75mm
Speed precision	0.5%
Motor	Imported servo motor
Drive Mechanism	Rolling Screw
Machine size	400*300*950 mm
Weight	67kg
Power supply	AC220V, 50/60Hz, single phase

Test items:
 Connector plug hole test.
 Test row connector plug.
 Life test connector plug.
 Single-Pin connector and the plastic retention test.
 (Retention Force) connector Normal Force test.
 Simultaneously with the contact resistance machines online. (Optional)
 Various compression, tensile breaking strength test. (Dynamic impedance test system), etc.

FEATURES
1.Use touch screen control to operate simple and intuitive.
2. Independent controller to control the motor, so that the trip to an accurate up to 0.01mm, which is other mechanical control stroke or photoelectric control stroke simple plug test machine can not be compared;
3. The design of the load protection, when the upper and lower limits to set the test machine to automatically stop the action to prevent the sensor was crashed.
4. Ordinary non-computer plug-in testing machine has the following defects:
a single function, can only do plug-in test; stroke is mechanical control (adjust the deflection wheel or adjust the electrical switch), travel accuracy can not meet the connector test requirements; Protection, because the test procedure is quite simple, when the customer misuse the upper and lower jigs hit together, the program can not stop the test machine work, to make great damage to the sensor;
compared with the horizontal plug force, can be equipped with automatic heart device, Test is not inserted partial; powerful, price concessions. Is a connector manufacturer of a considerable practical utility of the plug test machine.

Packing & Shipping

1.Strong standard wood case, inner plastic films wrapped for Insertion Force Test Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer Company Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair



FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
