• Model NO.：AIC-713
• Interior Space：0.7m3
• Test Mode：Manual or Automatic
• Sample Positions：15
• Color：Grey and Black
• Delivery Time：30 Days
• Exhaust：50L,S
• Funtion：Testing The Combustion Characteristic of Material
• Display：LCD
• Operation：PLC and Touch Screen
• Language：English
• Gas：Compressed Air, Vacuum Cleaners, Methane, Propane
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. AIC-713 Interior Space 0.7m3 Test Mode Manual or Automatic Sample Positions 15 Color Grey and Black Delivery Time 30 Days Exhaust 50L/S Funtion Testing The Combustion Characteristic of Material Display LCD Operation PLC and Touch Screen Language English Gas Compressed Air, Vacuum Cleaners, Methane, Propane Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Products:
AIC-713 Smoke Toxicity Index Tester is designed according to NES 713 standard,and the test chamber is used for testing the combustion characteristic of the material.
It is suitable for color tube method or portable flue gas analyzer to measure the material after burning smoke toxicity.


Standard:
• NES 713:determination of the toxicity index of the products of combustion from small specimens of material.


Main features:
• Flame chamber is made of stainless steel, the tank wall is fireproof polypropylene, seamless welding, interior space is 0.7m³.
• Cabinet door is easy to clean, transparent polycarbonate sheets.
• Smoke Toxicity Index Tester uses automatically spark ignition gas nozzle system, if the flame goes out, it can automatically re-ignite
• Timer control, automatic ignition and ignition off automatically.
• The Smoke Toxicity Apparatus is equipped with 15 sample positions that can be used for colorimetric reaction with gas pipes or othergas .
• Independent control box with meter, timer, methane and air controllers.
• Powerful ventilation system under the system control automatically to exclude fumes generated during the test when the test is completed.
• Smoke Toxicity Index Tester has fan that can quickly mix combustion.
• Combustion testing process can controlled by reinforced plastic observation window observation test combustion
• Door lock device is facilitately to open the box.
• Manual / automatic test mode can be selected freely.
• Automatic cycle mode, the gas generated by the combustion cycle apparatus under control timer control.


Specification:

Size	1,185(W)×700(D)×2,100(H)mm
Power	AC220V ,50/60Hz, 10A
Weight	About 150kg
Exhaust	50L/s
Auxiliary	Compressed air, vacuum cleaners, methane, propane gas (optional)

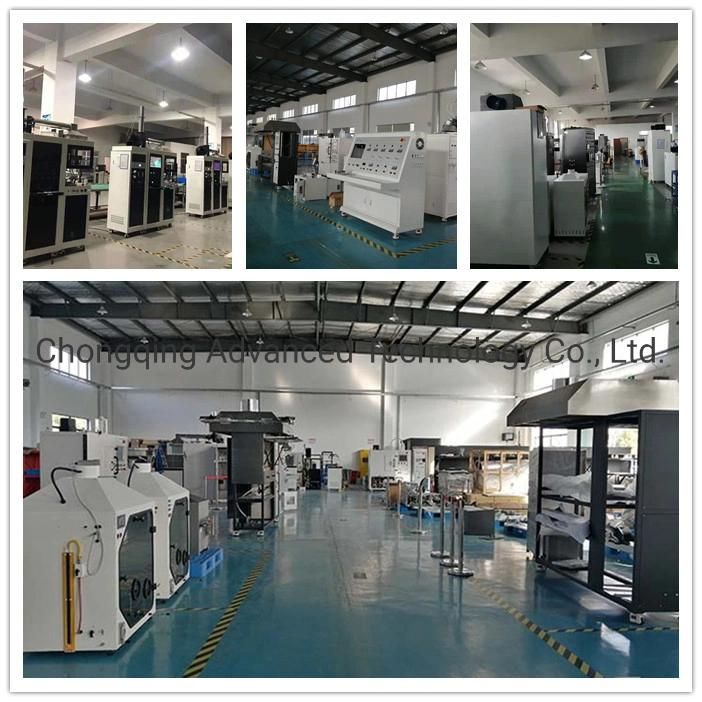

Factory overview

Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 40 working days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
