• Model NO.：TH-225-E
• Controller：Programmable Control
• Water Tank：25L
• Application：Electronic Products
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

Model

 TH-80(A~F)

 TH-150(A~F)

 TH-225(A~F)

 TH-408(A~F)

 TH-800(A~F)

 TH-1000(A~F)

 Internal Dimension

WxHxD (mm)

 400x500x400

 500x600x500

 600x750x500

 600x850 x800

 1000x1000 x800

 1000x1000 x1000

External Dimension WxHxD (cm)

 950x1650x950

 1050x175 0x1050

 1200x1900 x1150

 1200x1950 x1350

 1600x2000 x1450

 1600x2100 x1450

 Temperature Range

 Low Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)

 High Temperature 150°C

 Humidity Range

20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)

Indication relolution/ Distribution uniformity of temperature and humidity

 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.

Indication relolution/ Distribution uniformity of temperature and humidity

 ±0.5°C; ±2.5% R.H.

Temperature Rising / Falling Velocity

Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.3~1.0°C/min;
( Falling Min.1.5°C/min is optional)

 Inner and Outer Material

Interior material is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated.

 Insulation Material

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials

 Cooling System

Wind cooling or water cooling, (single segment compressor-40°C, double segment
compressor -70°C)

 Protection Devices

Fuse-free switch, overloading protection switch  for compressor, high and low voltage
coolant protection switch, over-humidity and over-temperature protection switch, fuses,
fault warning system, water short storage warning protection

 Optional Accessories

 Inner door with operation hole , Recorder, Water Purifier, Dehumidifier

 Compressor

 French Tecumseh Brand, Germany Bizer Brand

 Power

 AC220V 1 3 lines, 50/60HZ ,  AC380V 3 5 lines , 50/60HZ

 Approx. Weight (Kg)

150

180

 250

 320

 400

 450

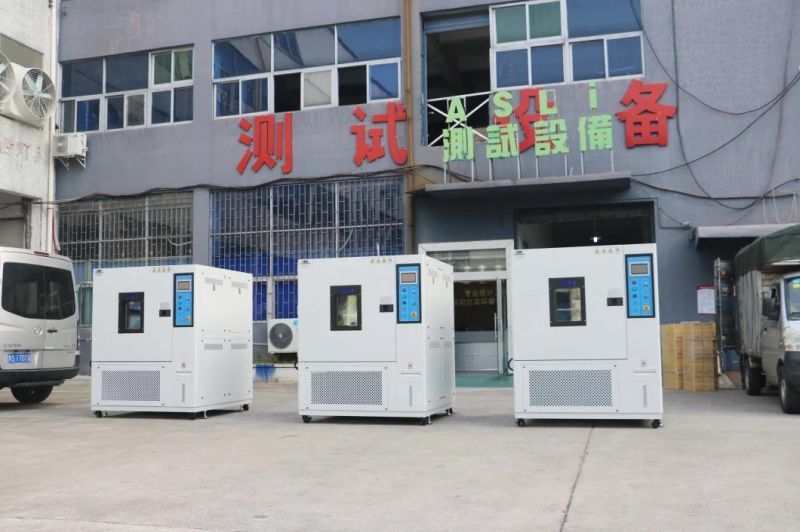

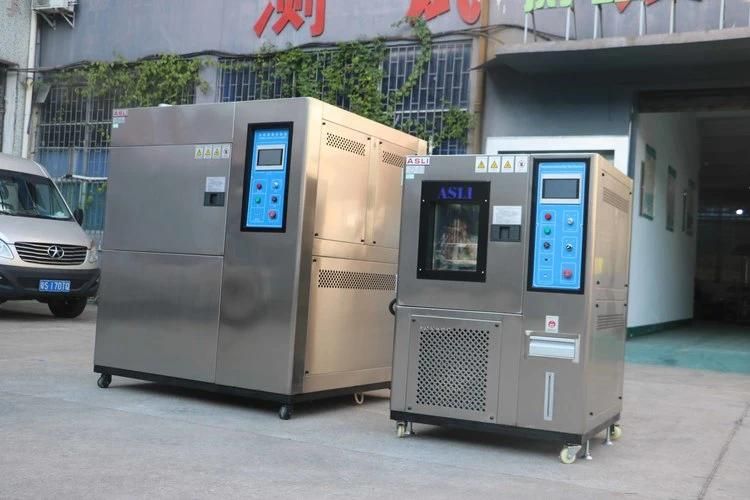

Temperature Humidity Test Machine Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Exhibition:Energy Power Saving Environmental Programmable Constant Temperature Humidity Tester
