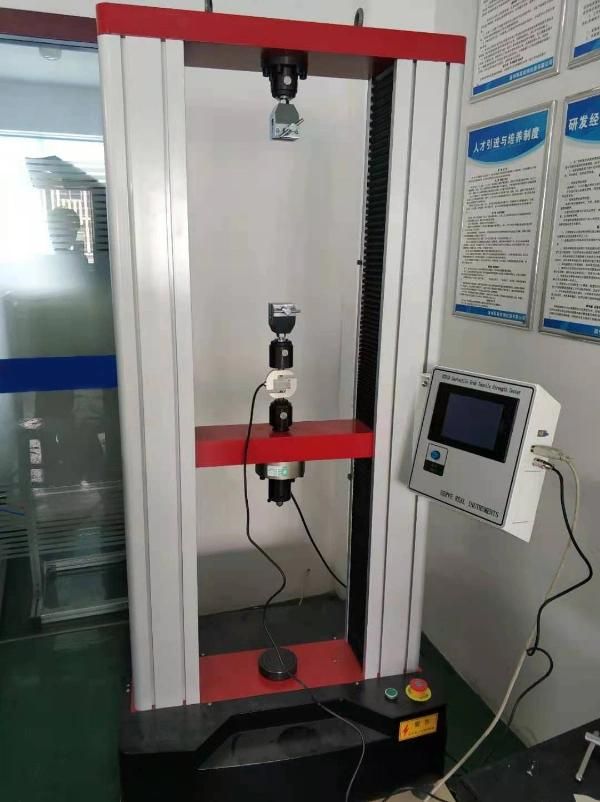

Geosynthetics Wide-Width Tensile Testing Machine ASTM D4595

Wuxi Serve Real Technology Co., Ltd.
  • After-sales Service：Life Time
  • Warranty：12 Months Free
  • Delivery Time：5-7 Working Days
  • Application：Geotextiles, Geosynthetics
  • Function：Tensile Test, Puncture Test
  • Standards：ASTM D4595

Base Info

  • Model NO.：GT-010
  • Voltage：AC220V,110V, 50,60Hz
  • Computer：Optional
  • Display：English
  • Transport Package：Wooden Case
  • Specification：GT-010
  • Trademark：SEREV REAL
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：500 Sets,Year

Description

1. Clamper width: 220mm
Sample width: 200mm
2. Clamp distance: 100mmBS EN ISO 103192.Trapezoidal Tear testASTM D-45333.CBR puncture test50000N1. Mandrel Dia.: 50mm
Circular clamper inner dia.: 150mm
sample dia.:230mm
2. Press rate: 60mm/minEN ISO 12236(GB/T14800)4. Narrow tensile test & elongation10000N1. Width of holder: 50mm
Sample width: 60mm
2. Stretching speed: 50mm/min
3. Clamping distance: 100mmJTJ060-985.Puncturing test10000N1. Mandrel diameter: 8mm
Inner diameter of ring fixture: 44.5mm
Sample diameter: 120mm
2. Pressing speed: 30mm/min GB/T176436.Grap tensile strength10000N
50000N
 1. Width of holder: 25mm
Sample width: 100mm
2. Stretching speed: 100mm/min
3. Clamping distance: 75mm JTJ060-987. Creep strength10000N
50000N
 1. Clamper width:220mm
Sample width:200mm
2. Clamp distance: 100mm

*Noted: when ordering, customer should specify the test methods for each test so that proper sample fixture can be equipped.
