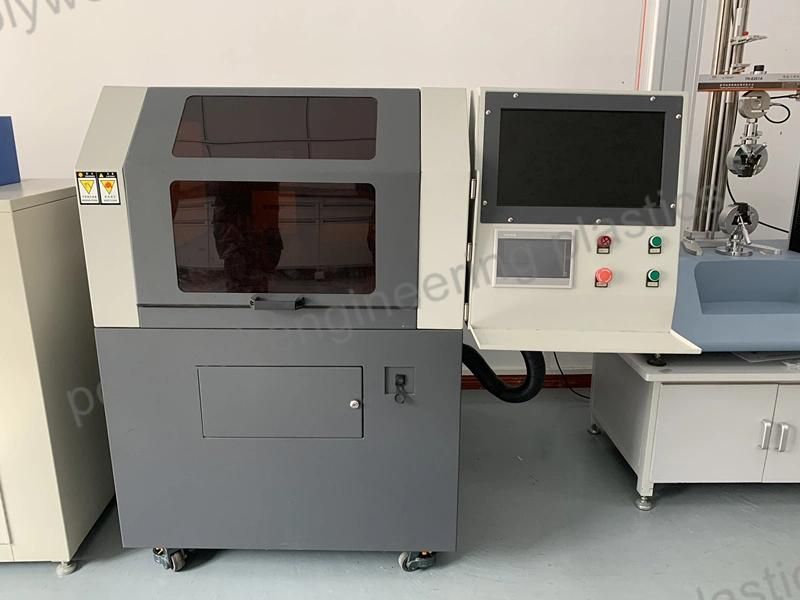

Tensile Testing Machine for PA Polyamide Strip
Suzhou Polywell Engineering Plastics Co., Ltd.- Max Diameter of Workpiece：1200mm
- Mass Scope of Workpiece：900kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：8130
- Loading Method：Static Load
- Display：Computer Display
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Displacement Resolution：0.0005mm
- Effective Tensile Width：500mm
- Effective Travel：1100mm
- Displacement Speed：0.01-500mm,Min
- Deformation Resolution：0.0001mm
- Transport Package：Plywood Case
- Trademark：Polywell
- Origin：Suzhou, China
- HS Code：9024800000
Description
0.0005mmDimension 950*650*2000mm 950*650*2000mm 1100*750*2050mm 1200*850*2300mm Power Supply 220V 2KW 220V 2KW 380v 3kw 380v 5kw Weight 850kg 850kg 1150kg 1300kg
Applications Details:
1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4. This universal test machine can do different test as per customer requirement such as tensile testing,elongation testing, peel testing, tear testing, compression testing, bend testing with different clamps.
Design Standard:
ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.

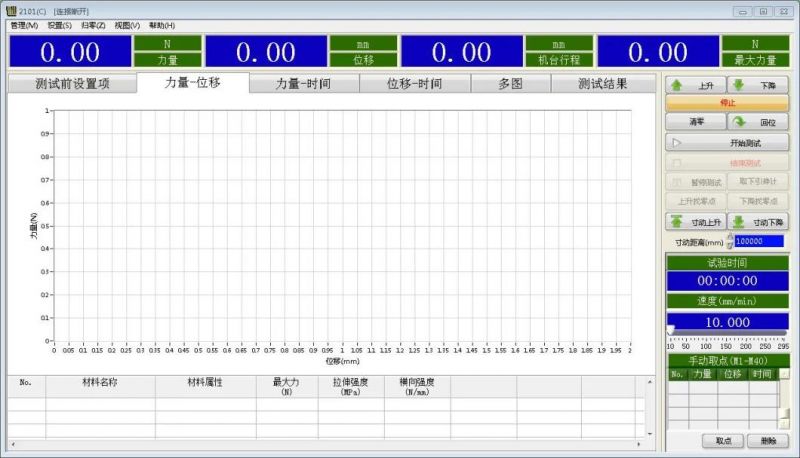

Universal testing Software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
FAQ:
Q:After an order is placed, when to deliver?
A:Generally about 20-28 working days, If we have inventory, we can arrange shipment within 7 working days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equipment must be carried out 100% quality examination and test when shipping and delivery goods.
We provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company if you need.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
