• Model NO.：YG(B)611-6
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Power Source：AC380V
• Oil Cylinder Position：None
• Cooling Type：Air Cool
• Xenon Arc Lamp：AC, 2kw
• Temperature Control：20-50 Degree Centigrade
• Humidity Control：15-95% Rh,10-95% Rh
• Time Control：0 Min - 9999h:59min
• Radiation：340nm,420nm,300-400nm,300-800nm
• Max. Exposure Area：2000 Square Centimetre
• Transport Package：Export Package
• Specification：980*650*1800mm
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)611-6 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Power Source AC380V Oil Cylinder Position None Cooling Type Air Cool Xenon Arc Lamp AC, 2kw Temperature Control 20-50 Degree Centigrade Humidity Control 15-95% Rh/10-95% Rh Time Control 0 Min - 9999h:59min Radiation 340nm/420nm/300-400nm/300-800nm Max. Exposure Area 2000 Square Centimetre Transport Package Export Package Specification 980*650*1800mm Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

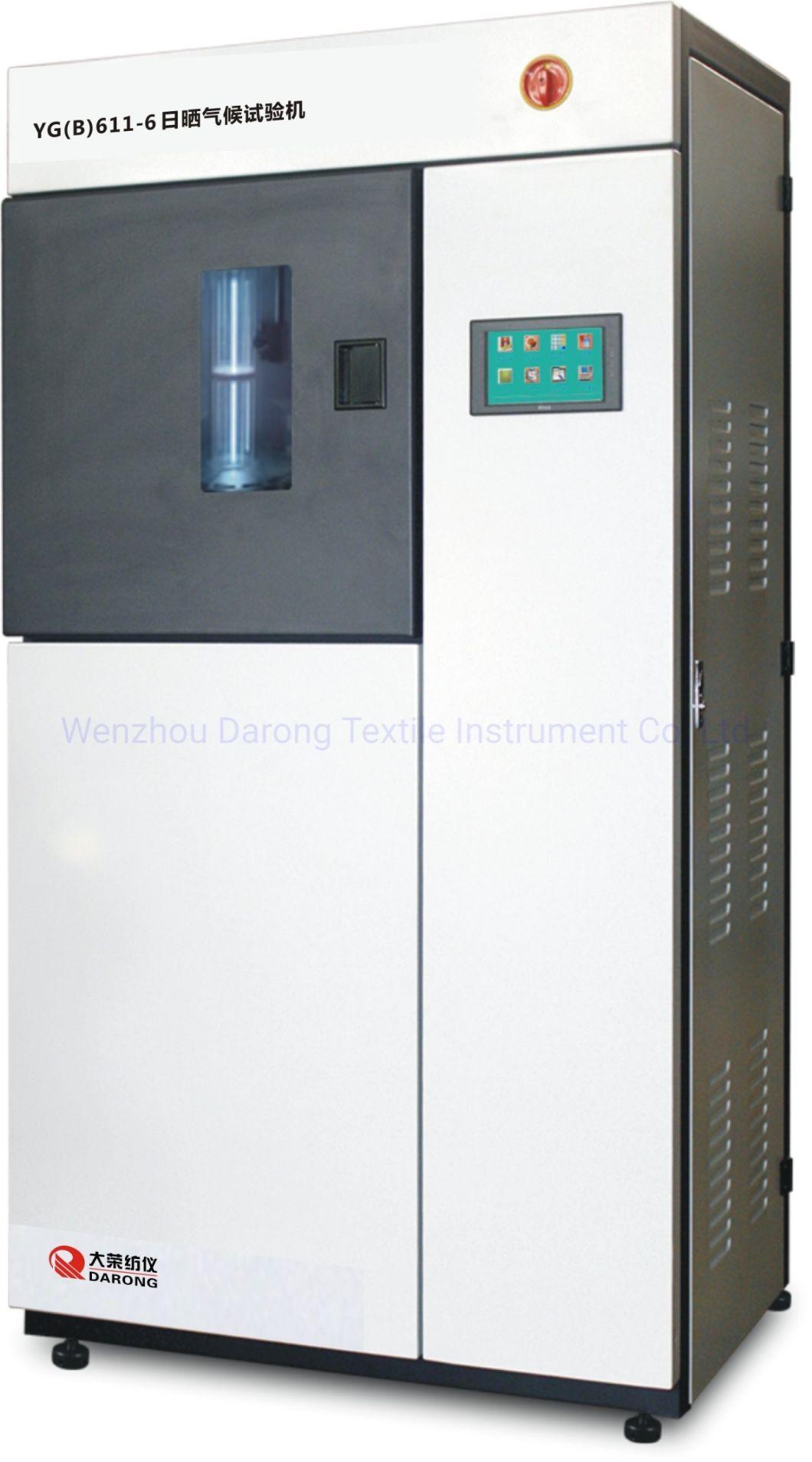

YG(B)611-6  Air cool xenon arc chamber lab instrument to light
[Scope of application] It is used for light fastness and weather fastness test in dyeing fastness test, and also for light fastness test and light aging test of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.

[Related standards]
GB/T8427 (National standard drafting unit)
GB/T14576 GB/T15102 GB/T15104 GB/T8430 AATCCTM16
ISO105 - B04 ISO105 - B02
[Instrument characteristics]
1. Rated power of 2kW imported air-cooled long arc xenon lamp, true simulation of sunlight spectrum, instrument performance meets ISO, GB, FZ, AATCC, BS and other standards;
2. The instrument comes with 10 related test standards, 2 custom standards;
(Can be customized to add a number of custom standard procedures)
3. 7 inch industrial color touch man-machine interface, a variety of expressions: numbers, curves, indicators, etc., can real-time display and monitor the irradiance, blackboard temperature, temperature and humidity in the warehouse;
4. The use of microcore 32-bit intelligent CPU, efficient real-time control, to ensure accurate reproduction of the same test environment.
5. Imported superconducting fiber, the whole band export monitored light source, light detector monitoring outside the warehouse, no drift, no decay, high precision, long life;
6. Blackboard thermometer (BPT) or standard blackboard thermometer (BST) and the sample at the same station (isometric) detection, truly reflect the sample test status, the measured data after CPU processing in numbers, graphs and curves and other ways to display on the touch screen, without stopping observation;
7. The use of patent temperature control and humidification system, to ensure accurate and stable test humidity;
8. All sample clips are timed separately, and different samples can be tested on the same machine for convenient testing and monitoring;
9. The instrument standard with alternating light and dark, rain test climate conditions;
10. The instrument can choose the test environment parameters of thermal-sensitive print output or data export;
11. A test can run for 1000 hours of quality assurance.
[Technical parameters] :
1. Test chamber temperature control :(30 ~ 85)ºC; Resolution :0.1ºC, accuracy :±2ºC
2. The test chamber humidity control :(15 ~ 95)%RH, resolution :0.1%RH, accuracy :±5%RH
3. The test time control :(0 ~ 1OOOO)h, accuracy :±6s
4. Black standard temperature range :(BST)(35 ~ 115)ºC, resolution :0.1ºC, accuracy :±2ºC
Or optional blackboard temperature (BPT)(30 ~ 11O)ºC, resolution :0.1ºC, accuracy :±2ºC
5. Irradiance control: digital setting, automatic constant
(0.8 ~ 2.0)W/m2@420nm Precision :±0.02W/m2@420nm
(35 ~ 80)W/m2@300-400nm Accuracy :±0.02W/m2@300-400nm
(450 ~ 1000)W/m2@300-800nm Precision :±0.02W/m2@300-800nm
6. Controllable and monitored light wavelength:
420nm, (300-400)nm, (300-800)nm band
7. Rated power of xenon arc lamp: 2kW

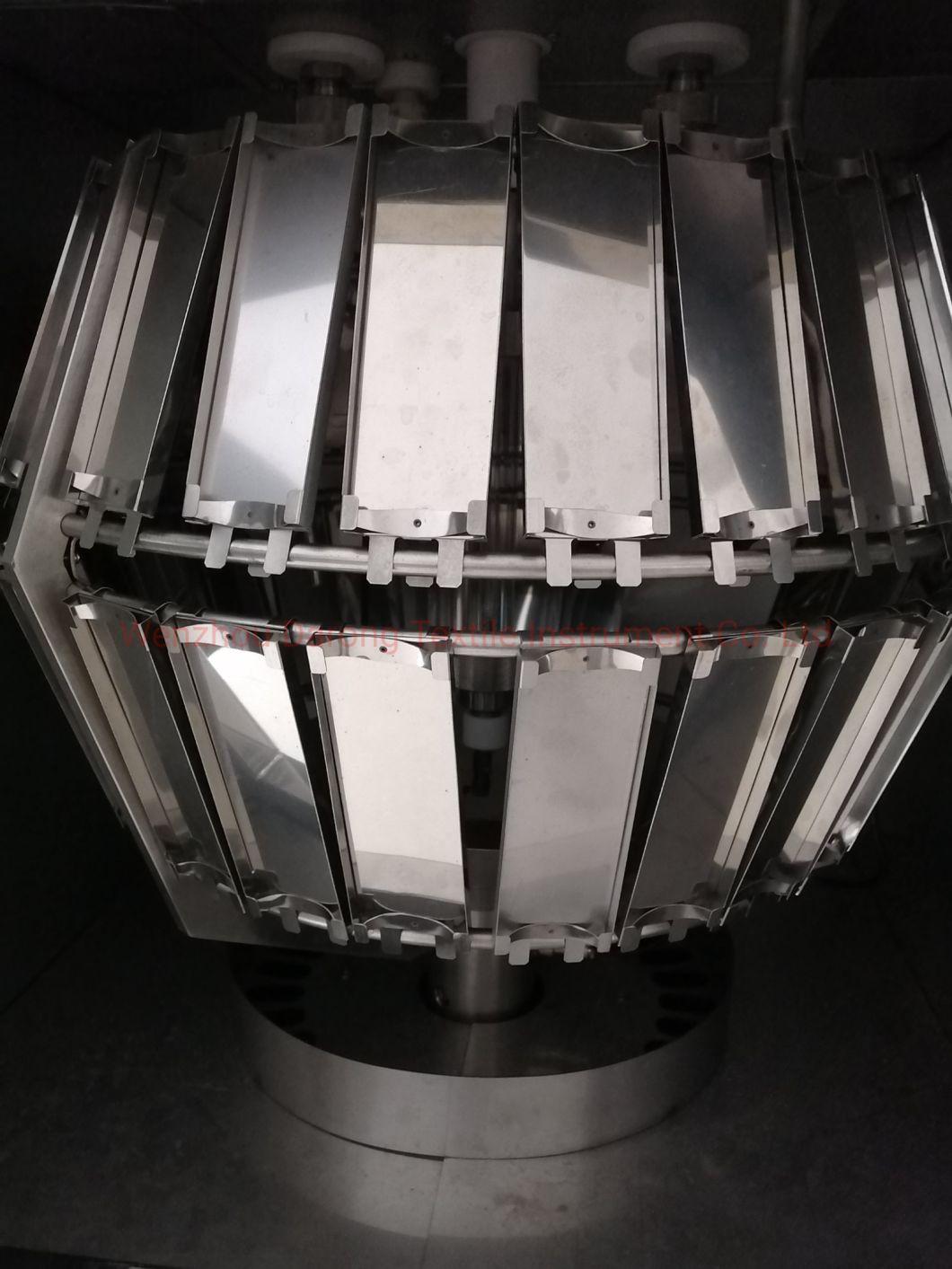

8. Sample frame type: double layer
9. Sample rack rotation speed: 5r/min (1 ~ 7r/min can be set)
11. The maximum exposure area: 1700cm2 sample clip: 115mm×46mm 30
(Optional maximum exposure area 1300cm2 sample clip: 7 180mm×90mm)
12. Each sample clip timing: ≤10000h
13. Light cycle: ≤10000h
14. Spray period: ≤10000h
16. Data output: 7 inch touch color screen display
16. Power supply: AC220V±5%,50Hz, 4.5KW
17. Overall size: (980×650×1800)mm
18. Weight: 150kg
(Note: The test of the equipment conforms to the standard based on the above basic configuration and parameters. If other standards and tests exceed the above technical content, please contact our company for special customization.)



	GB standard	ASTM standard(Optional)
Sample holder size	203mm×48mm	220mm×92mm
Max. Samples size	135mm×45mm	150mm×90mm
Max. Exposure area	118mm×33mm	130mm×50mm
Max. Samples holders	13pcs	6pcs
